Description

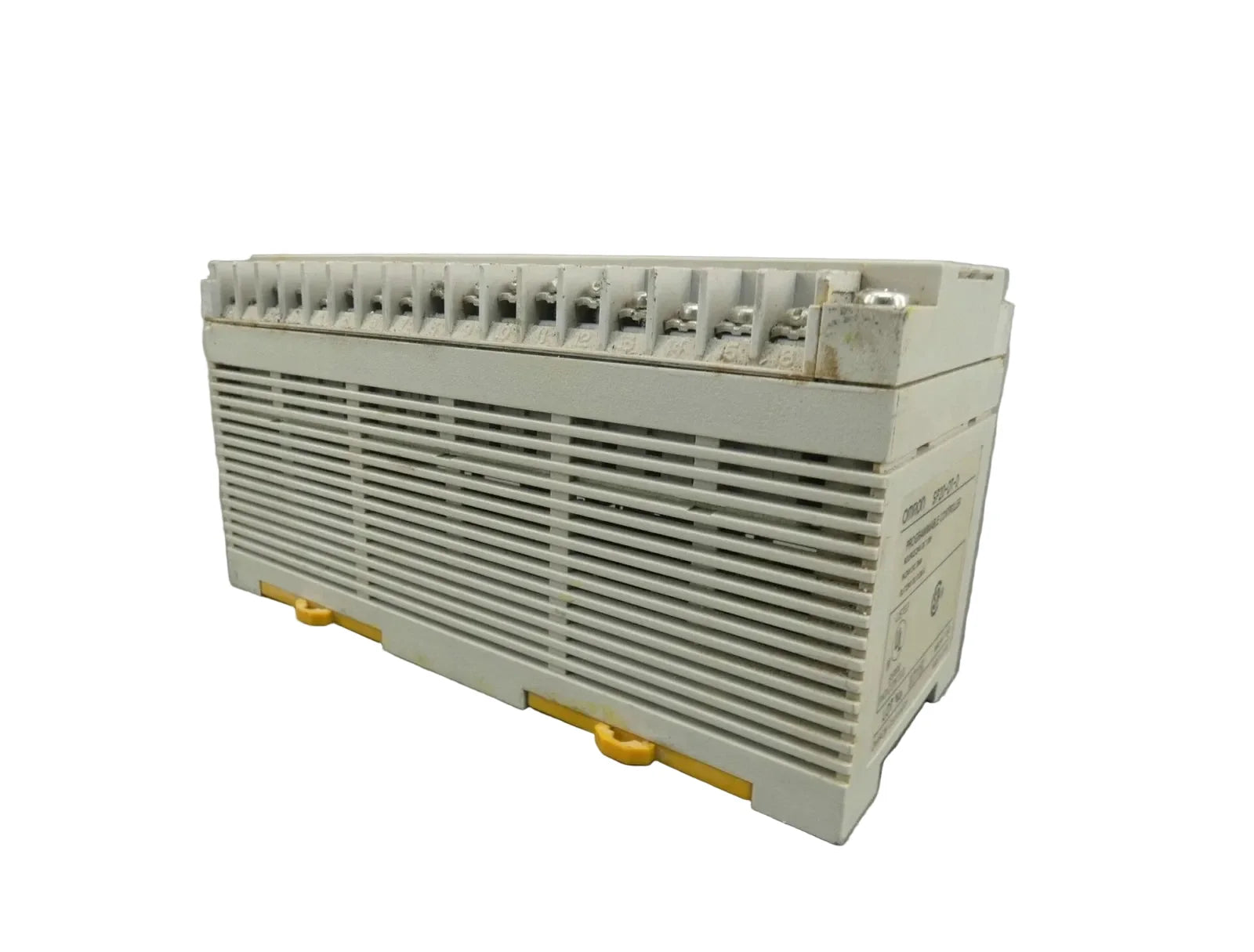

The Omron SP20-DT-D is a CPU module with integrated DC transistor outputs and DC power supply designed for industrial control applications. It operates from a 24 VDC source with 10 W power consumption. The unit provides 24 VDC inputs and transistor outputs rated at 0.3 A per circuit.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
SP20-DT-D |
| Subcategory |
Industrial Computer |
| Series |
SYSMAC Mini SP20 |
| Module Type |
CPU Module with DC Transistor Outputs |
| Power Supply |
24 VDC |
| Power Consumption |
10 W |
| Input Voltage |
24 VDC |
| Input Current |
7 mA |
| Output Type |
DC Transistor |
| Output Rating |
24 VDC, 0.3 A per circuit |
| Application |
Industrial Automation |
| Weight |
0.99 lbs |
Information About SP20-DT-D
The SP20-DT-D belongs to the Omron SYSMAC Mini SP20 series of programmable controllers. It functions as a CPU module with built-in DC transistor outputs for direct switching of 24 VDC loads. The controller accepts 24 VDC input signals with a nominal input current of 7 mA and is powered by a 24 VDC supply. Designed for compact machine control systems, it integrates logic processing and output control within a single industrial housing.
Key Features:
-
Integrated CPU Module: Executes programmable control logic.
-
24 VDC Power Supply: Operates from a 24 VDC source with 10 W consumption.
-
DC Transistor Outputs: 24 VDC outputs rated at 0.3 A per circuit.
-
24 VDC Digital Inputs: Compatible with standard DC sensors.
-
Compact SYSMAC Mini Platform: Designed for small automation systems.
-
Solid-State Output Switching: Suitable for high-speed DC load control.
-
Industrial Application Design: Intended for machine and process automation.
The SP20-DT-D delivers the reliability and precision required for compact DC-powered programmable control in industrial automation systems.
