Description

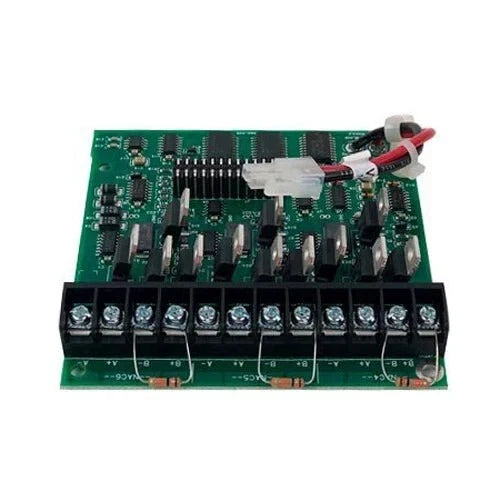

The Simplex 4100-5115 is a NAC expansion module designed to increase notification appliance circuit capacity in Simplex fire alarm systems. It provides three additional Class A/B NAC outputs, each rated at 3 amps, for expanded signaling capability. This module integrates directly with the XPS power supply, enhancing system scalability and performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Simplex |
| Category |
Fire Alarm Systems |
| Part Number |
4100-5115 |
| Subcategory |
NAC Modules |
| Module Type |
NAC Expansion Module (XNAC) |
| Number of NACs |
3 |
| NAC Rating |
3 A per circuit |
| Circuit Type |
Class A / Class B |
| Compatibility |
Simplex 4100 Series |
| Mounting Type |
Plug-on module (XPS interface) |
| Indicators |
Individual status LED per NAC |
| Function |
Notification appliance circuit expansion |
| Application |
Fire alarm signaling systems |
| Weight |
1.1 lb |
Information About 4100-5115
The 4100-5115 is an expansion NAC module developed by Simplex for use with 4100-series fire alarm control panels. It is designed to plug directly onto the XPS power supply, adding three additional notification appliance circuits to the system. Each NAC supports both Class A and Class B configurations, offering flexibility in system design and installation. Equipped with individual status LEDs per circuit, the module allows for easy monitoring and diagnostics in critical life safety applications.
Key Features:
- NAC Expansion Capability: Adds three additional notification appliance circuits to the system
- Class A/B Support: Configurable for both Class A and Class B wiring topologies
- High Current Capacity: Each NAC rated at 3 A for demanding applications
- XPS Integration: Directly plugs into the Simplex XPS power supply module
- Individual Status LEDs: Provides visual indication for each NAC circuit
- System Scalability: Enables expansion of fire alarm signaling capacity
- Reliable Circuit Monitoring: Supports consistent operation of notification devices
- Compact Module Design: Fits within existing control panel configurations
- Simplified Installation: Designed for quick and secure connection to system hardware
- OEM System Compatibility: Engineered specifically for Simplex 4100 series panels
- Enhanced Diagnostics: LED indicators assist in troubleshooting and maintenance
The 4100-5115 delivers the reliability and precision required for expanded notification control in fire alarm and life safety systems.
