Description

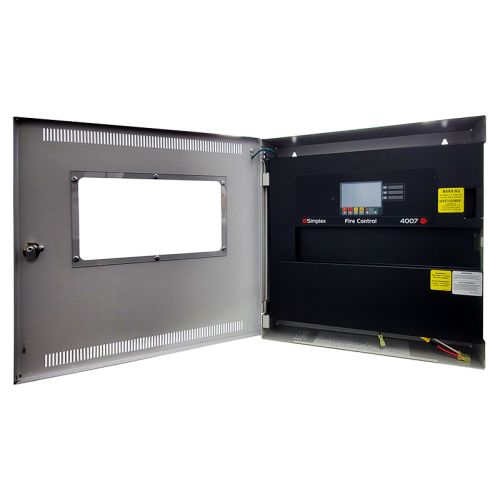

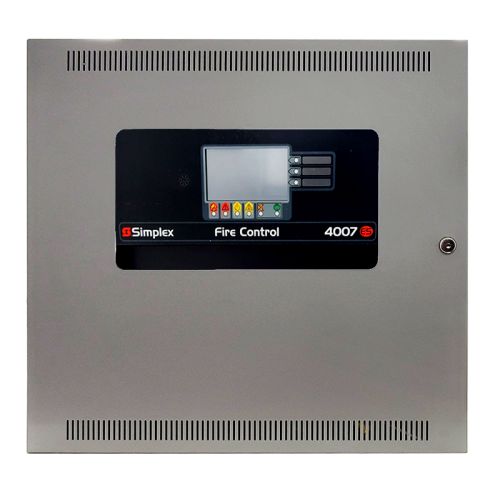

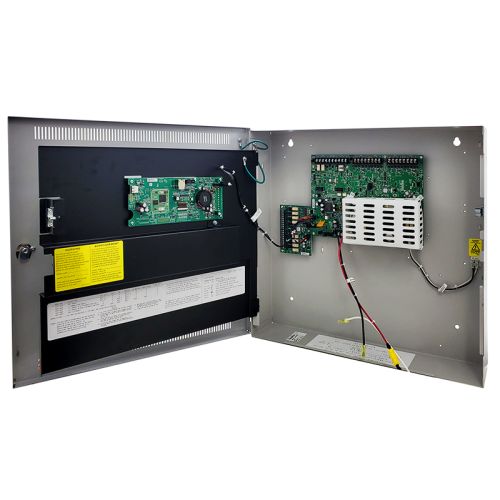

The Simplex 4007-9102 is a 4007ES Series hybrid fire alarm control panel designed to support both conventional and addressable devices. It features one IDNet+ SLC supporting up to 100 addressable points, four conventional NACs, and a 6 A power supply with integrated battery charger. With its platinum cabinet and intuitive touchscreen interface, the panel is well-suited for new installations and retrofit projects in small to mid-sized facilities.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Simplex |
| Category |
Fire Safety |
| Part Number |
4007-9102 |
| Subcategory |
Fire Alarm Control Panels |
| Series |
4007ES Hybrid |
| Panel Type |
Hybrid addressable/conventional fire alarm control panel |
| Addressable Capacity |
Up to 100 IDNet addressable points |
| Signaling Line Circuit |
One IDNet SLC |
| Notification Appliance Circuits |
Four conventional NACs |
| Power Supply |
6 A integrated power supply with battery charger |
| User Interface |
Color touchscreen display |
| Network Capability |
Standalone or networked operation |
| Included Module |

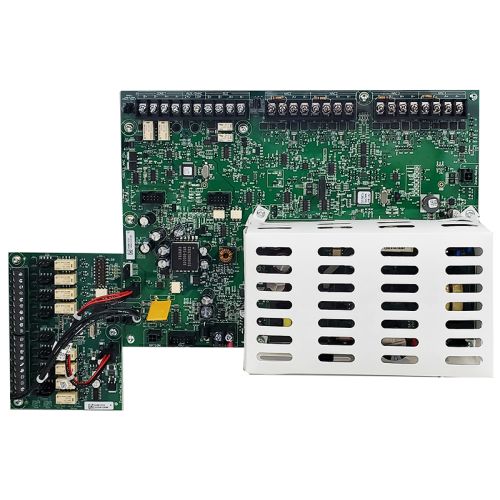

One 4007-9801 Zone/Relay Card |
| Color |
Platinum |
| Weight |
Approximately 32 lb (14.5 kg) |
Information About 4007-9102
The 4007-9102 is part of the Simplex 4007ES Series of intelligent fire detection and control units by Johnson Controls. This hybrid control panel accommodates both traditional initiating circuits and addressable IDNet+ devices, offering flexibility for diverse building requirements. Its color touchscreen streamlines system operation and configuration, while built-in NACs, expandable SLC loops, and compatibility with TrueAlarm sensors make it adaptable for future system growth. The 4007-9102 integrates seamlessly with ES Net and legacy 4120 networks, ensuring connectivity for larger, distributed fire alarm systems.
Key Features:
- Hybrid Control Design: Supports both conventional IDC circuits and addressable IDNet+ devices.
- Addressable Capacity: Standard SLC provides up to 100 addressable points, expandable with optional modules.
- Conventional NACs: Four Class A/B NACs included, rated for reliable notification appliance support.
- Powerful Supply: 6 A power output with built-in battery charger for standby capacity.
- Touchscreen Interface: Intuitive color display simplifies configuration, monitoring, and user interaction.
- Expansion Ready: Supports 4007-9803 loop expansion modules, each adding 75 addressable points.
- Integrated Compatibility: Works with IDNet devices, TrueAlarm sensors, ES Net, and 4120 network systems.
- Flexible Retrofit Support: Selectable IDC/NAC resistor values ensure easy integration with existing wiring.
The 4007-9102 delivers the reliability and adaptability required for fire alarm control in small to mid-sized commercial and institutional facilities.
