Description

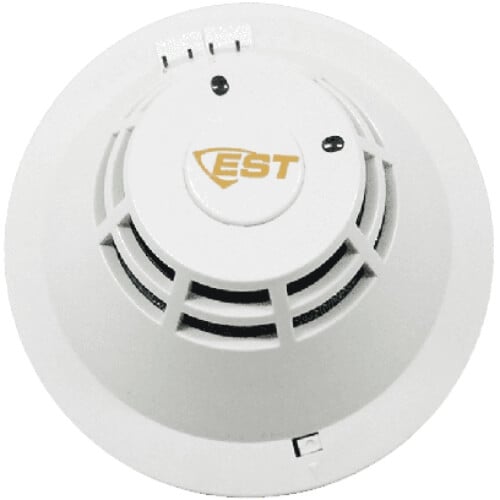

The Edwards SIGA-IPHS is an intelligent 4D multisensor smoke detector designed for Signature Series fire alarm systems. Combining ionization, photoelectric, and heat sensing with time-based analysis, it delivers fast and accurate fire detection while minimizing false alarms. Compact and intelligent, the SIGA-IPHS is ideal for demanding commercial, industrial, and institutional fire safety applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards / EST (GE Security legacy) |
| Category |
Fire Safety |
| Part Number |
SIGA-IPHS |
| Subcategory |
Smoke Detector |
| Detector Type |
Intelligent 4D Multisensor (Ionization, Photoelectric, Heat, Time) |
| Operating Voltage |
15.2 – 19.95 VDC (nominal 19 VDC) |
| Operating Current |
45 µA quiescent / 45 µA alarm / 18 mA stand-alone mode |
| Sensitivity Range |
0.67 – 3.70%/ft obscuration (five programmable levels) |
| Pre-Alarm Settings |
Up to 20 levels, adjustable in 5% increments |
| Operating Temp |
32°F to 100°F (0°C to 38°C) |
| Storage Temp |
-4°F to 140°F (-20°C to 60°C) |
| Humidity Range |
0–93% RH, non-condensing |
| Air Velocity |
Up to 500 ft/min (2.53 m/s) |
| Addressing |
Electronic (downloaded via SIGA-PRO tool) |
| Indicators |
Twin LEDs: Green (supervisory), Red (alarm) |
| Compatibility |
Signature Loop Controller |
| Mounting Bases |
SIGA-SB, SIGA-RB, SIGA-IB, SIGA-AB4G (and 4-inch versions) |
| Construction |
High-impact engineering polymer |
| Color Options |
White (SIGA-IPHS), Black (SIGA-IPHSB) |
| Dimensions |
4.4 in (112 mm) diameter × 2.0 in (51 mm) height |
| Weight |
0.10 lbs (approx. 0.05 kg) |
Information About SIGA-IPHS
The SIGA-IPHS is part of the EST Signature Series, which integrates advanced multi-criteria sensing for reliable performance in varied environments. It analyzes ionization, photoelectric, and thermal inputs individually, applying time as a fourth dimension for more precise alarm decisions. Its microprocessor-driven intelligence reduces communication traffic with the control panel and allows stand-alone operation if loop communication fails. The detector supports automatic device mapping, electronic addressing, and environmental compensation, ensuring long-term stability and reduced maintenance needs. Compatible with standard, relay, isolator, and audible bases, it offers flexible installation options across a wide range of building types.
Key Features:
- 4D Detection Technology: Uses ionization, photoelectric, and heat sensors with time-based analysis for improved accuracy.
- Reduced False Alarms: Digital filters and adaptive algorithms minimize unwanted activations.
- Intelligent Addressable Device: Communicates directly with Signature Loop Controllers for precise identification.
- Automatic Environmental Compensation: Adjusts sensitivity to counteract dust, humidity, and aging effects.
- Electronic Addressing: Eliminates manual switches or dials, configured via programming tools.
- Pre-Alarm Capability: Supports up to 20 sensitivity levels to provide early warning before evacuation.
- LED Indicators: Green for normal operation, red for alarm, with visibility from any direction.
- Flexible Mounting Bases: Compatible with standard, relay, isolator, and audible bases for versatile applications.
The SIGA-IPHS delivers the reliability and precision required for modern fire detection in large-scale facilities.
