Description

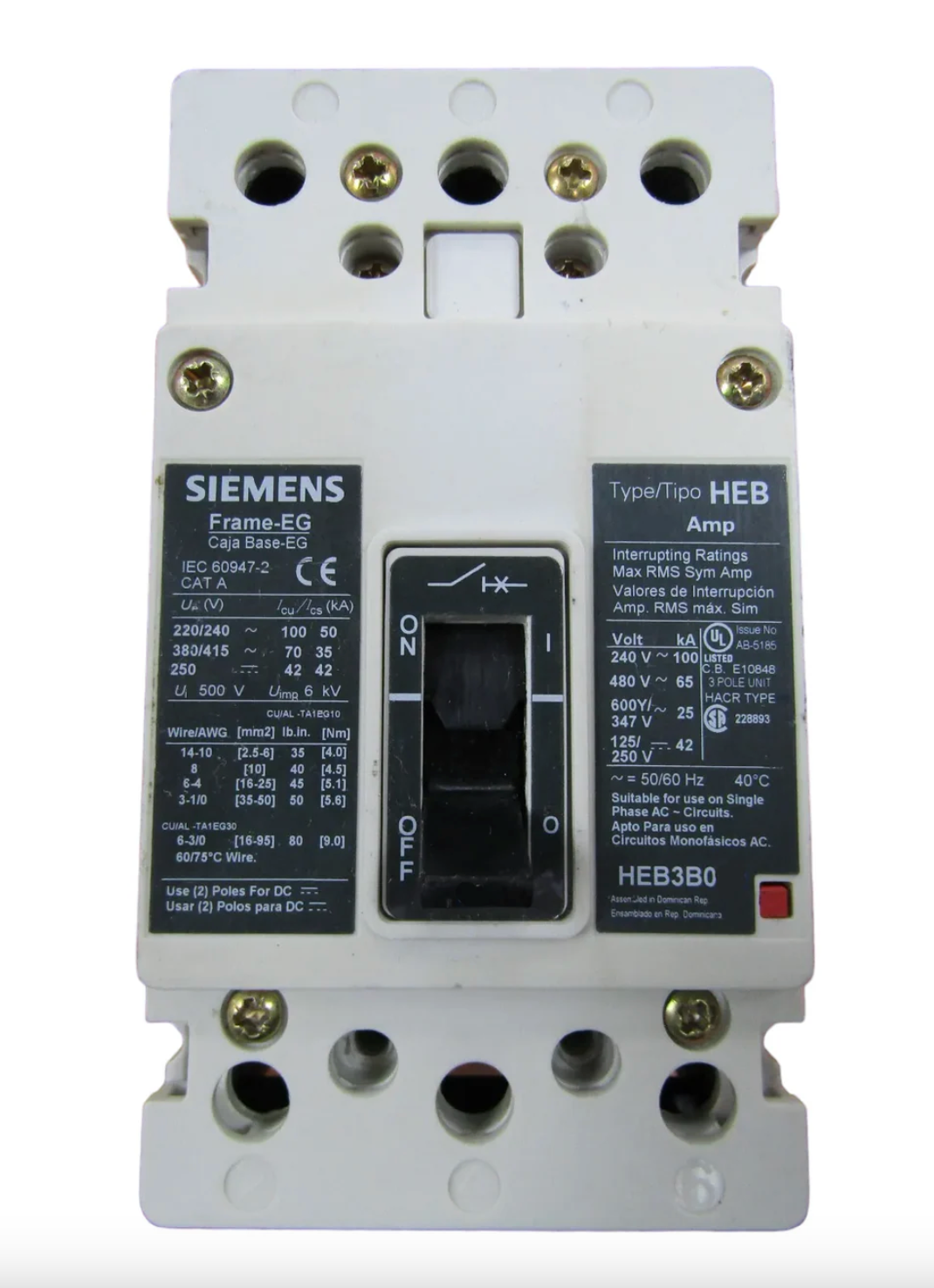

The Siemens HEB3B060 is a molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical systems. Siemens HEB3B060 features a thermal magnetic trip mechanism and a compact bolt-on design for panelboard integration. It is engineered for consistent performance in applications requiring reliable 60A circuit protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Breaker |
| Part Number |
HEB3B060 |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
HEB Series |
| Frame Size |
125 A Frame |
| Amperage Rating |
60 A |
| Voltage Rating |
600 V AC |
| Number of Poles |
3 |
| Phase |
3 Phase |
| Trip Type |
Thermal Magnetic |
| Protection Functions |
Long-Time and Instantaneous |
| Interrupt Rating |
65 kAIC at 480 V |
| Mounting Type |
Bolt-On |
| Application |
Panelboard Mounting |
| Frequency Rating |
50/60 Hz |
| Operating Temperature |
40°C |
| Standards |
UL Listed |
| Weight |
3 lb |
Information About HEB3B060
The HEB3B060 is part of the Siemens HEB series, built on a 125A frame platform for enhanced durability and performance. It incorporates a thermal magnetic trip unit that delivers both long-time and instantaneous protection against overloads and short circuits. Designed for bolt-on mounting, it integrates seamlessly into Siemens panelboards and distribution systems. With a high interrupting capacity and robust construction, it is suitable for demanding electrical environments where safety and operational reliability are essential.
Key Features:
- Thermal Magnetic Trip Unit: Provides long-time and instantaneous protection for accurate fault response.
- 60 Amp Rating: Suitable for medium-load commercial and industrial circuits.
- High Interrupt Rating: 65 kA at 480V ensures reliable fault interruption.
- Three-Pole Configuration: Supports balanced three-phase power distribution systems.
- Bolt-On Mounting: Enables secure installation in panelboards and distribution equipment.
- HEB Series Frame: Built on a durable 125A frame for long-term reliability.
- Wide Voltage Capacity: Operates up to 600V AC for versatile applications.
- Industrial-Grade Design: Engineered for consistent operation in demanding environments.
The HEB3B060 delivers the reliability and precision required for safe and efficient circuit protection in commercial and industrial power distribution systems.
