Description

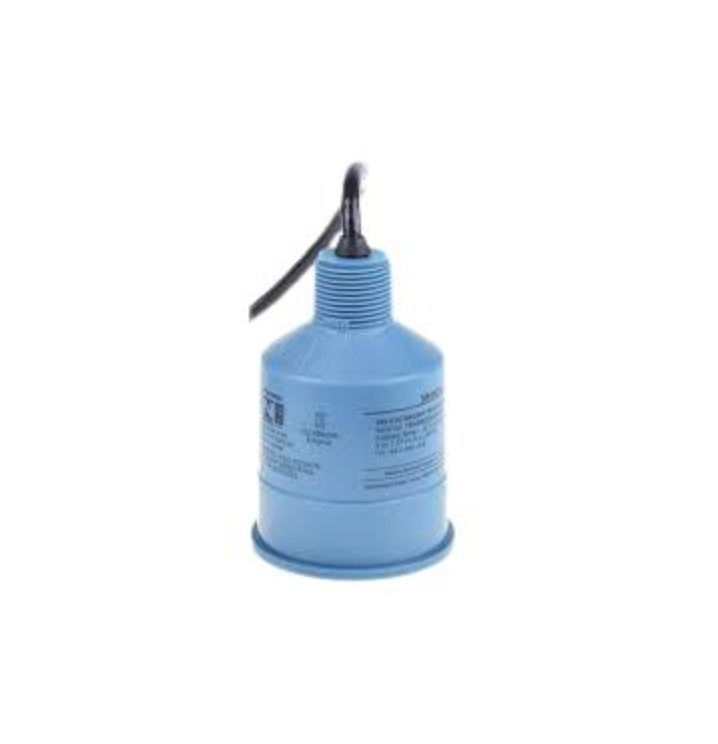

The Siemens 7ML1106-1BA20-0A is an ultrasonic level transmitter designed for accurate non-contact measurement of liquids and slurries in industrial environments. As part of the Echomax XRS-5 series, it provides reliable level detection with an 8-meter measurement range. This sensor is engineered for use in tanks, open channels, and process vessels where consistent level monitoring is essential.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Part Number |
7ML1106-1BA20-0A |
| Category |
Sensors & Switches |
| Subcategory |
Level Transmitter |
| Product Type |
Ultrasonic Level Transmitter |
| Series |
Echomax XRS-5 |
| Measurement Range |
8 m (26 ft) |
| Application |
Liquids and slurries |
| Connection Type |
1 in NPT |
| Cable Length |
10 m (32.8 ft) |
| Technology |
Ultrasonic non-contact sensing |
| Protection Rating |
IP66/IP68 |
| Mounting Type |
Threaded process connection |
| Installation Area |
Tanks, vessels, open channels |
| Weight |
3.96 lbs |
Information About 7ML1106-1BA20-0A
The 7ML1106-1BA20-0A is an ultrasonic level transmitter from Siemens’ Echomax XRS-5 series, developed for precise level measurement in liquid and slurry applications. It features a robust transducer design with a 1-inch NPT connection, allowing easy installation in a variety of industrial systems. The device uses ultrasonic pulse technology to measure distance without direct contact, minimizing maintenance and wear. With an IP66/68-rated enclosure and a 10-meter cable, it is suitable for harsh environments, including wastewater, chemical processing, and storage applications.
Key Features:
- Ultrasonic Measurement Technology: Provides accurate, non-contact level detection using sound wave reflection
- 8 Meter Measurement Range: Supports level monitoring up to 26 feet for versatile tank applications
- Echomax XRS-5 Series: Designed for reliable performance in liquid and slurry measurement environments
- 1-Inch NPT Connection: Ensures secure and standardized mounting in industrial installations
- 10 Meter Cable Length: Allows flexible installation with extended reach (32.8 ft)
- IP66/68 Protection Rating: Suitable for harsh and wet environments with high ingress protection
- Low Maintenance Operation: Non-contact sensing reduces wear and maintenance requirements
The 7ML1106-1BA20-0A delivers the reliability and precision required for continuous ultrasonic level measurement in industrial liquid and slurry applications.
