Description

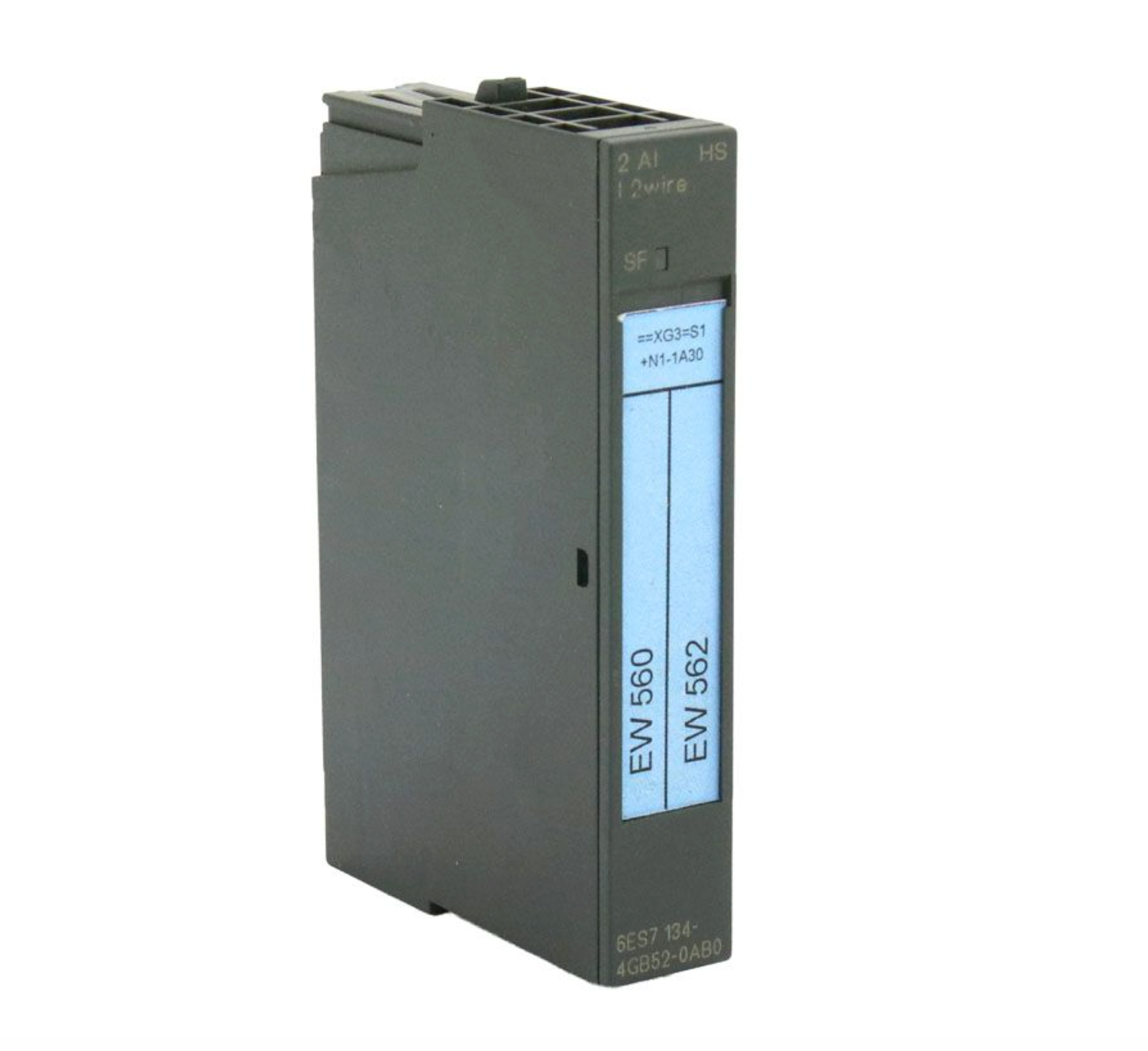

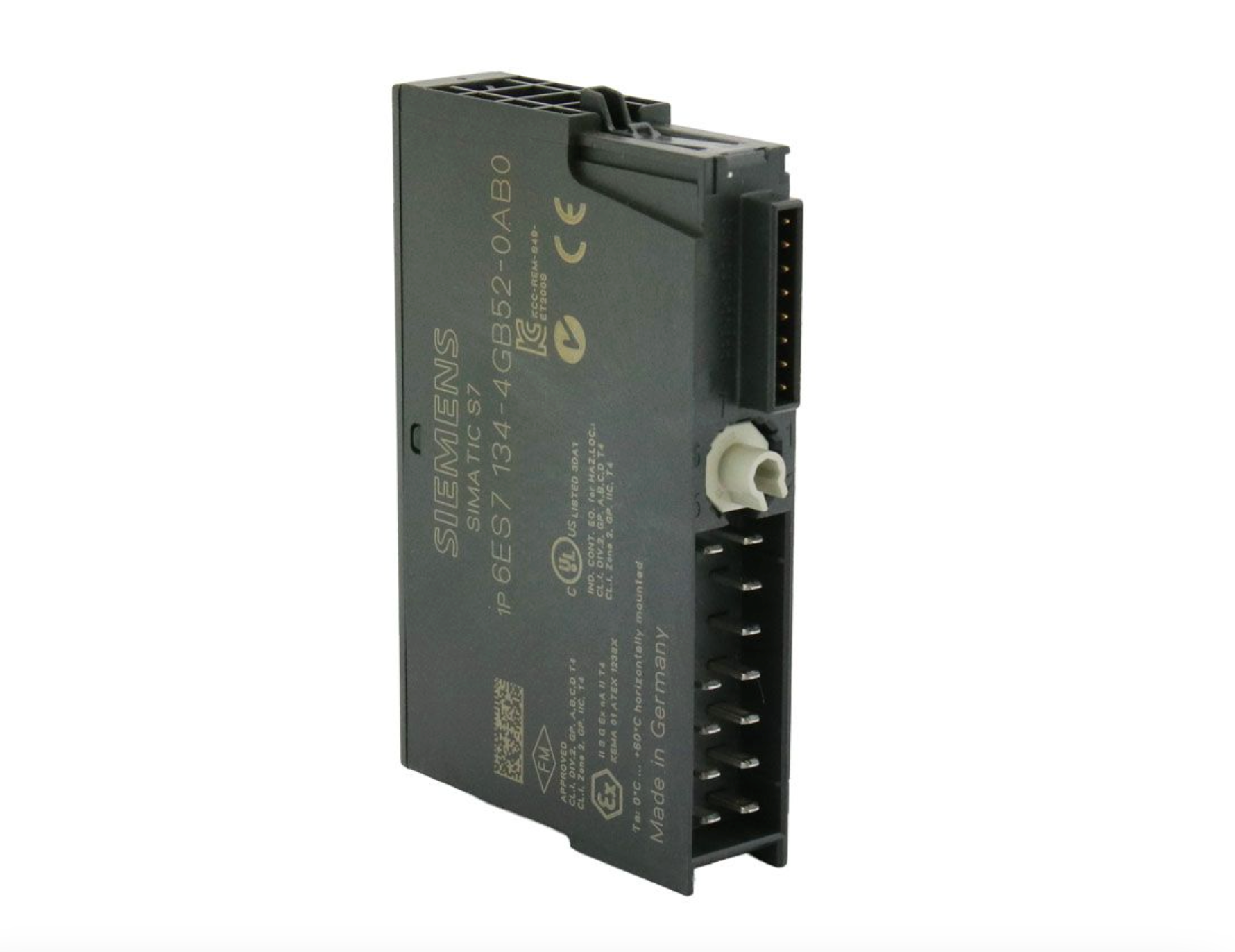

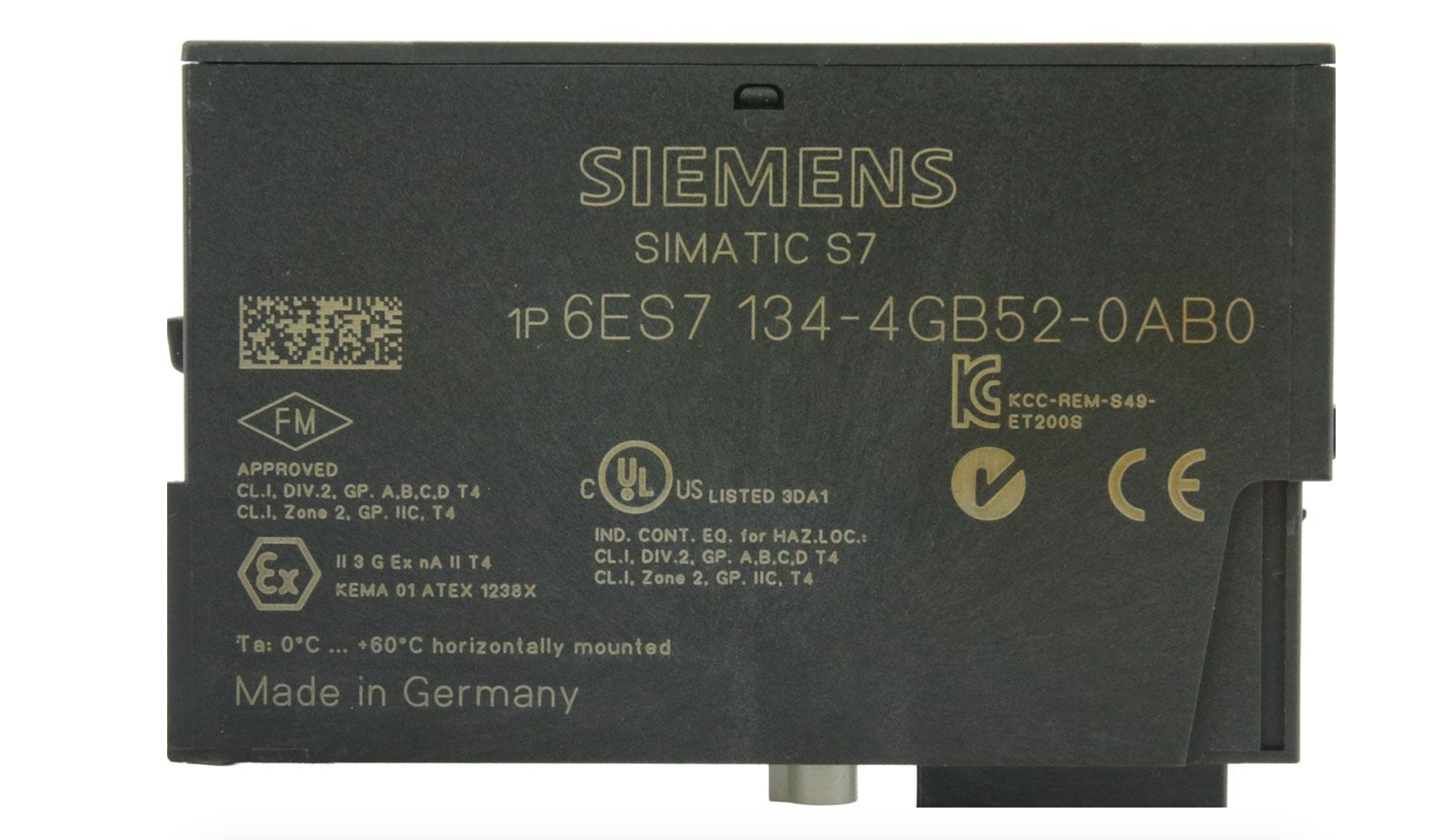

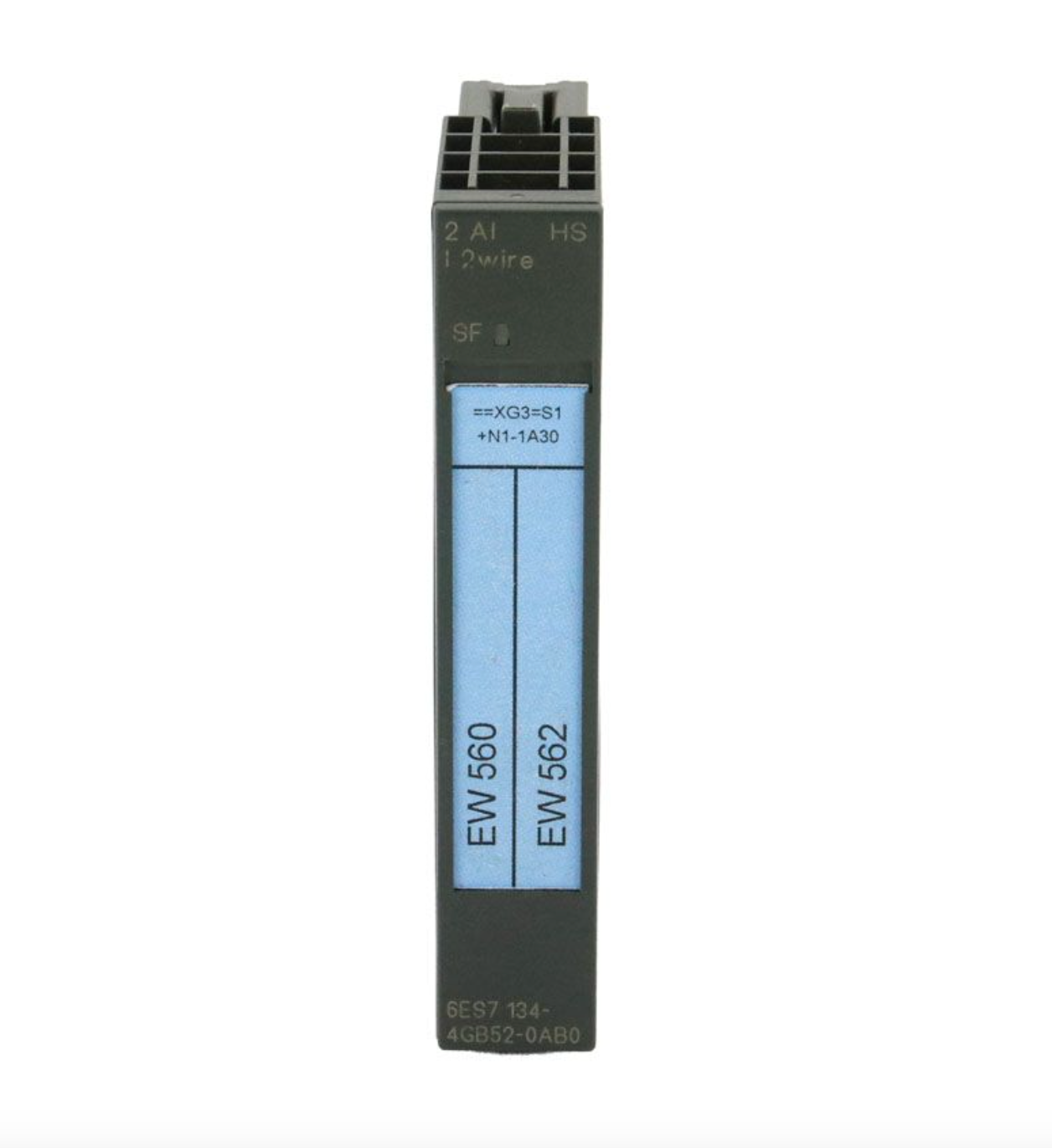

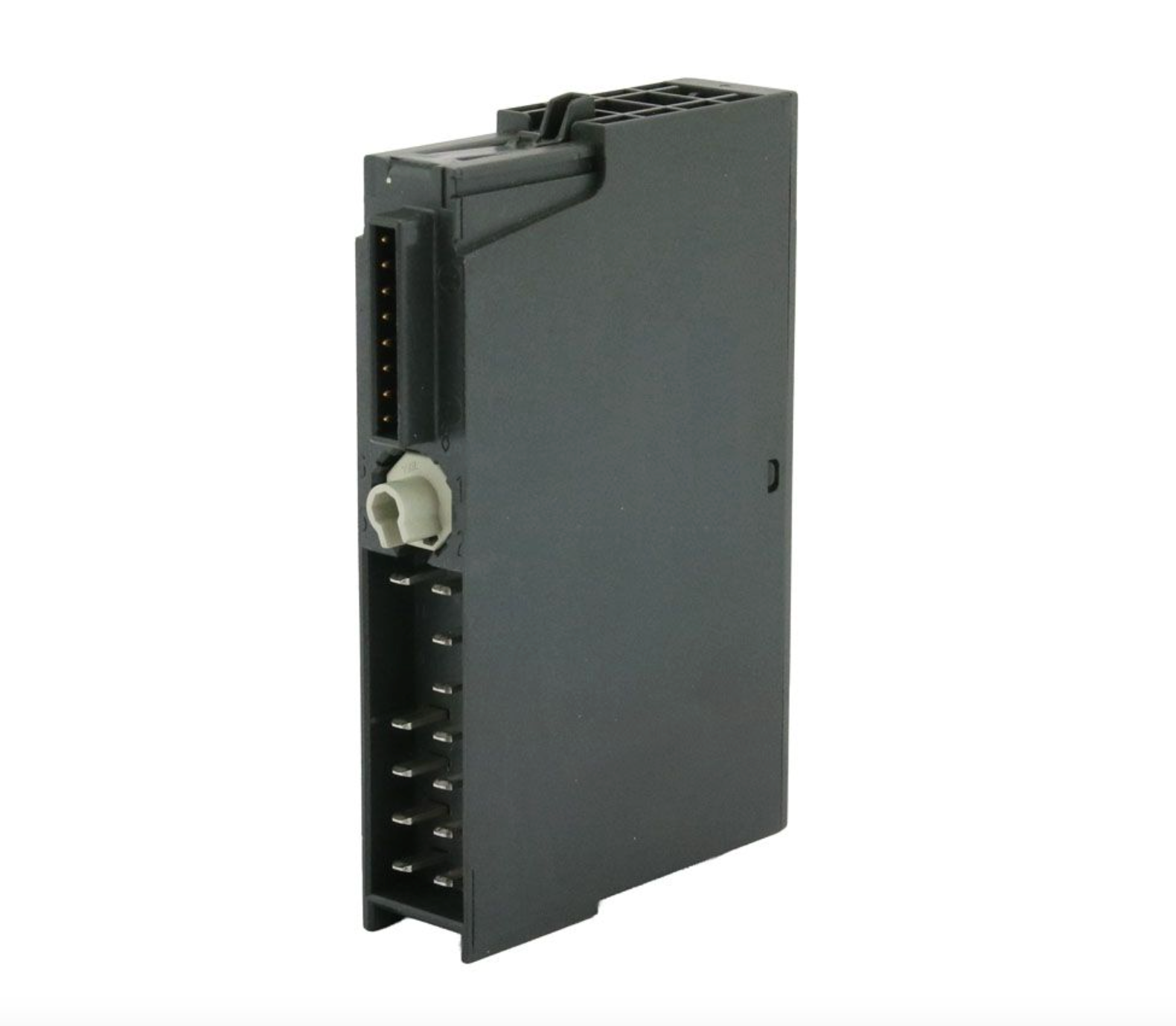

The Siemens 6ES7134-4GB52-0AB0 is a high-speed analog input module designed for ET200S distributed I/O systems. It enables precise acquisition of current signals from 2-wire transducers in industrial automation environments. This module delivers accurate measurement performance for process control applications requiring fast and reliable data processing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Part Number |
6ES7134-4GB52-0AB0 |
| Category |
PLCs/Machine Control |
| Subcategory |
VDC Logic I/O Module |
| Product Type |
Analog Input Electronics Module |
| Series |
SIMATIC ET200S |
| Channels |
2 Analog Inputs |
| Input Type |
Current (0–20 mA / 4–20 mA) |
| Resolution |
15-bit |
| Transducer Type |
2-wire |
| Cycle Time |
0.1 ms |
| Diagnostics |
SF LED (Group Fault) |
| Module Width |
15 mm |
| Application |
Distributed I/O and process control |
| Status |
Discontinued by Manufacturer |
| Weight |
0.05 lbs |
Information About 6ES7134-4GB52-0AB0
The 6ES7134-4GB52-0AB0 is a Siemens electronics module from the SIMATIC ET200S series, developed for distributed automation systems. It features two analog input channels capable of processing 0–20 mA and 4–20 mA signals with 15-bit resolution for high-precision measurements. Designed for 2-wire transducers, it supports efficient signal acquisition in process industries such as manufacturing, water treatment, and energy systems. With a compact 15 mm width and fast cycle time of 0.1 ms, the module provides high-speed data handling and includes an SF LED for group fault diagnostics.
Key Features:
- Dual Analog Inputs: Supports 2 input channels for current signal measurement
- High-Speed Processing: 0.1 ms cycle time enables rapid data acquisition
- 15-Bit Resolution: Provides precise signal conversion for accurate process monitoring
- 0–20 mA / 4–20 mA Inputs: Compatible with standard industrial current signals
- 2-Wire Transducer Support: Designed for efficient connection to field sensors
- Compact 15 mm Design: Saves space in ET200S distributed I/O systems
- Integrated Diagnostics LED: SF LED indicates group fault status for quick troubleshooting
The 6ES7134-4GB52-0AB0 delivers the reliability and precision required for high-speed analog signal acquisition in distributed PLC automation systems.
