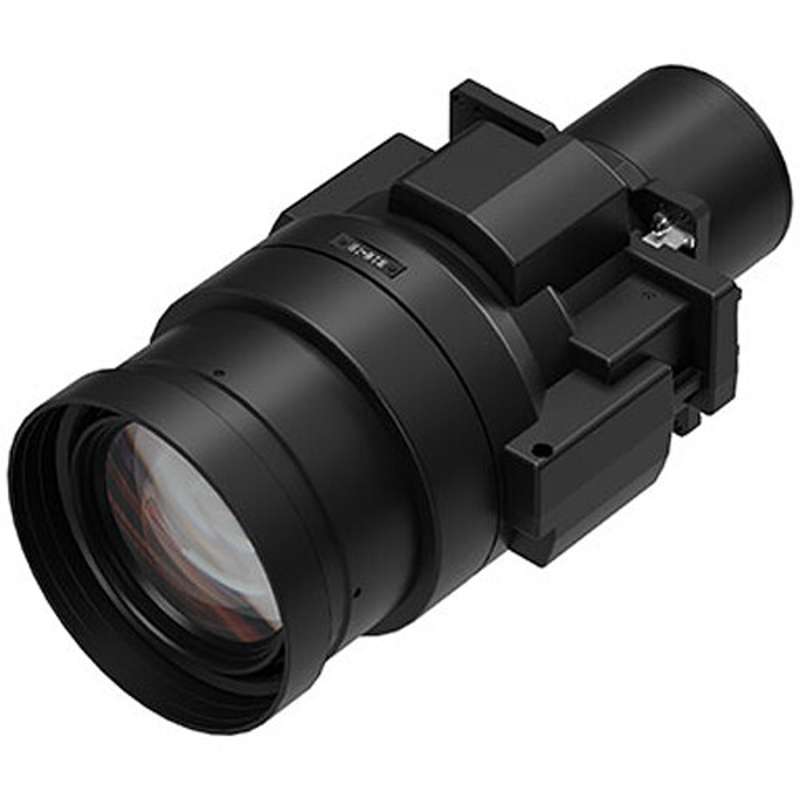

Sharp XP-56ZL – Ultra Long Throw Zoom Lens

Compatible with XP-A155U, XP-A175U, XP-A201U-B, NP-PA1505UL, and PA1705UL projectors

Physical Specifications

• Dimensions (WxHxD): 5.5 x 12.8 x 6.7 in. / 140 x 324 x 169 mm
• Shipping Dimensions: 12.9 x 20.5 x 13.5 in. / 328 x 520 x 344 mm
• Net Weight: 10.6 lbs. / 4.8 kg
• Shipping Weight: 13.9 lbs. / 6.3 kg

Environmental Conditions

• Operating Temperature: 32–113°F / 0–45°C
• Operating Humidity: 20–85% (Non-Condensing)
• Operating Altitude: 3–2600 m (8,500 ft)
• Storage Temperature: 14–122°F / -10–50°C
• Storage Humidity: 20% – 80% (Non-Condensing)
• Storage Altitude: 0–12,000 m / 0–39,370 ft

Limited Warranty (parts & labor)

1 year parts and labor

Optical

• Throw Ratio: 3.95 to 7.51:1
• Projection Distance: 17.1 to 261.9 ft. / 5.24 to 79.8 m
• Projector Angle: 3.1° (tele) / 5.7–6.0° (wide)
• Zoom: Motorized
• Focus: Motorized
• F Number: F=1.85 to 2.41
• Focal Length: f=86.2–164.8 mm

Mechanical

• Optional Lenses: Motorized Zoom Lens 3.95–7.51:1 (XP-56ZL)
• Primary Lenses: Motorized Zoom Lens 3.95–7.51:1 (XP-56ZL)
• Lens Adjustment Functions: Motorized focus, zoom, horizontal/vertical shift; Lens memory stores settings (shift/zoom/focus); Range of shift is dependent on lens

Supported Screen Size

60 to 500 in. / 1.5 to 12.7 m
