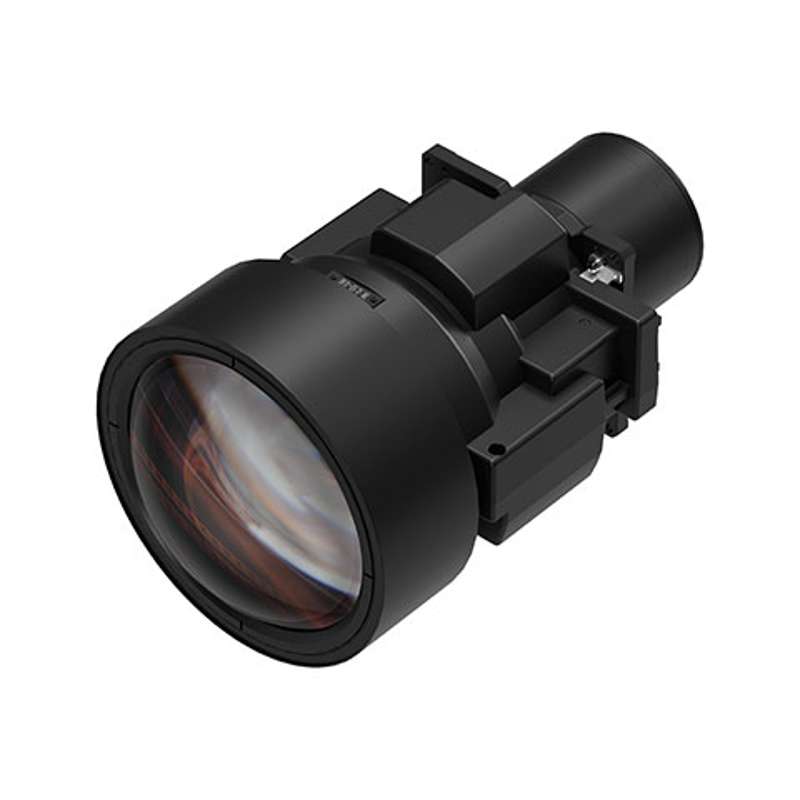

0.53–0.65:1 Short Throw Zoom Lens (lens shift)

For the NP-PA1505UL/PA1705UL, XP-A155U/A175U and XP-A201U-B projectors

Physical Specifications

Dimensions (WxHxD)

• Product: 6.9 x 12.3 x 6.9 in. / 174 x 312 x 174 mm
• Shipping: 12.9 x 20.5 x 13.5 in. / 328 x 520 x 344 mm

Weight

• Net Weight: 12.3 lbs. / 5.6 kg
• Shipping: 15.7 lbs. / 7.1 kg

Environmental Conditions

• Operating Temperature: 32–113°F / 0–45°C
• Operating Humidity: 20 to 85% (Non-Condensing)
• Operating Altitude: 3 to 2600 m (8,500 ft)
• Storage Temperature: 14–122°F / -10–50°C
• Storage Humidity: 20% – 80% (Non-Condensing)
• Storage Altitude: 0–12,000 m / 0–39,370 ft

Limited Warranty (parts & labor)

1 year parts and labor

Optical

• Throw Ratio: 0.53 to 0.65:1 Motorized Zoom Lens
• Projection Distance: 2.17 to 23.8 ft. / 0.67 to 7.3 m
• Projector Angle: 26.6 to 28.2° (tele) / 9.4 to 31.5° (wide)

Lens

• Zoom: Motorized
• Focus: Motorized
• F Number: F=1.94 to 2.20
• Focal Length: f=12.0–14.6 mm

Mechanical

• Optional Lenses: Motorized Zoom Lens 0.53–0.65:1 (XP-51ZL)
• Primary Lenses: Motorized Zoom Lens 0.53–0.65:1 (XP-51ZL)
• Lens Adjustment Functions: Motorized focus, zoom, horizontal/vertical shift; Lens memory stores lens settings (shift/zoom/focus); Range of shift is dependent on lens

Supported Screen Size

60 to 500 in. / 1.5 to 12.7 m (XP-51ZL)
