Description

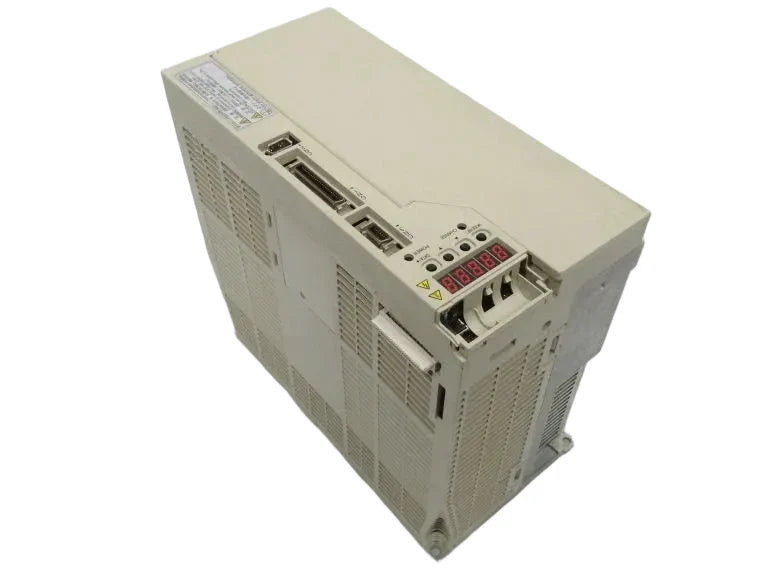

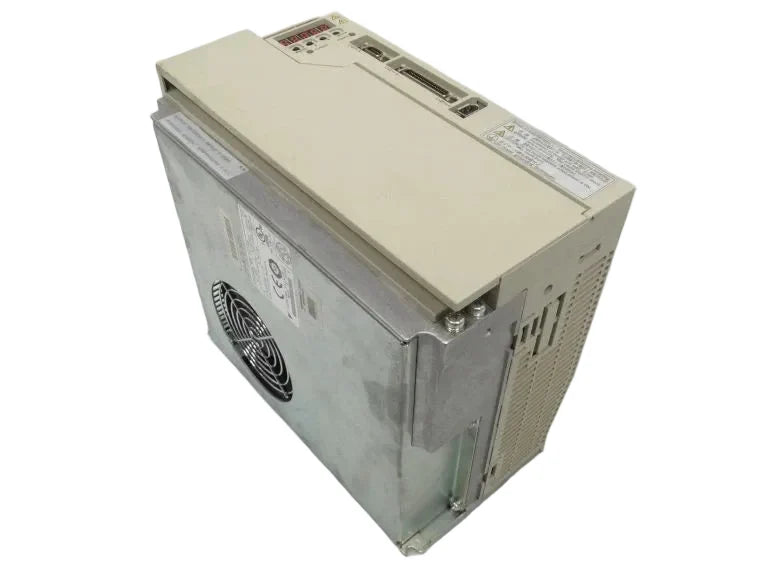

The Yaskawa SGDH-50AE AC servo drive is a Sigma II Servopack designed to control high-capacity servo motors with precision and stability. Operating on a 200–230 VAC three-phase supply, it supports up to 5 kW motor output for demanding industrial motion control applications. This drive is suited for systems requiring accurate speed, torque, and position regulation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
Industrial Automation |
| Part Number |
SGDH-50AE |
| Subcategory |
Servo Drives |
| Product Series |
Sigma II |
| Drive Type |
AC Servo Drive (Servopack) |
| Input Voltage |
200–230 VAC |
| Input Frequency |
50/60 Hz |
| Input Phase |
Three-Phase |
| Rated Input Current |
24 A |
| Output Voltage |
0–230 VAC |
| Output Phase |
Three-Phase |
| Output Current |
32.8 A |
| Power Rating |
4.96 kW (6.65 HP) |
| Mounting Style |
Panel Mount |
| Weight |
12.61 lbs |
Information About SGDH-50AE
The SGDH-50AE is part of Yaskawa’s Sigma II Servopack series, engineered to deliver reliable servo control for medium- to high-power applications. It is designed for use with compatible Yaskawa AC servo motors and integrates advanced control algorithms to ensure smooth and responsive motor performance. The drive supports three-phase input power and provides controlled three-phase output for precise motion profiles. Its robust design makes it suitable for automation equipment such as machine tools, material handling systems, and production machinery.
Key Features:
- Sigma II Servopack Series: Designed for precise and stable AC servo motor control.
- Three-Phase Power Input: Operates on 200–230 VAC at 50/60 Hz for industrial compatibility.
- High Power Capacity: Rated for approximately 5 kW (6.65 HP) servo motor operation.
- High Output Current: Provides up to 32.8 A for responsive torque and speed control.
- Multi-Mode Control Capability: Supports speed, torque, and position control functions.
- Industrial-Grade Design: Built for continuous operation in demanding automation environments.
The SGDH-50AE delivers the reliability and precision required for controlling high-capacity AC servo motors in industrial motion control systems.
