Description

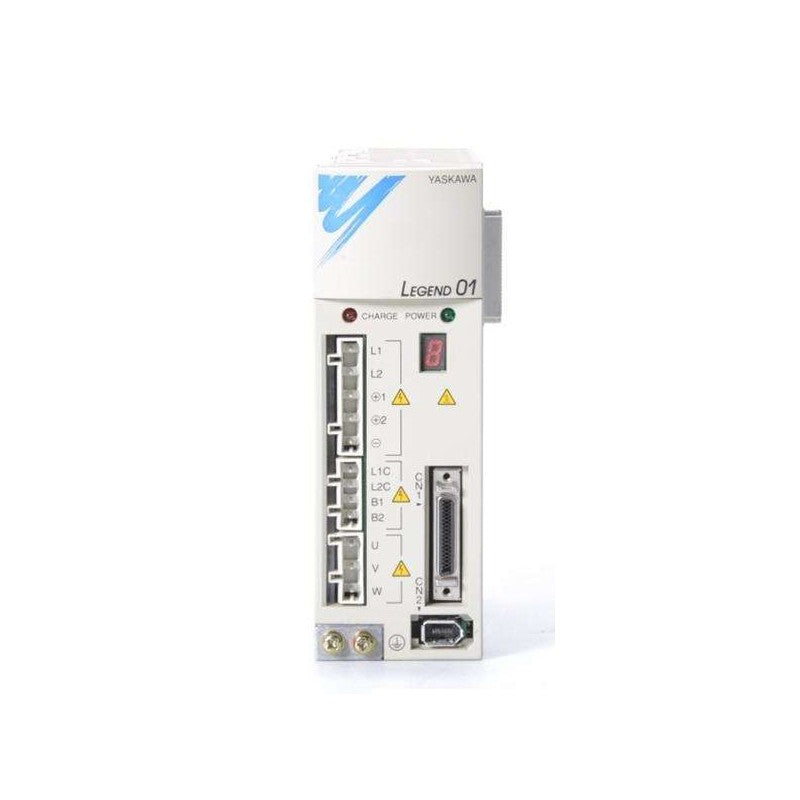

The Yaskawa SGDG-01GTY21 is a compact servo amplifier designed to control small-capacity AC servo motors in industrial automation systems. It delivers precise torque control with a rated power output of 0.1 kW and supports wide single-phase AC input voltage ranges. This servo amplifier is intended for applications requiring stable, accurate motion control in compact installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
Motion Control |
| Part Number |
SGDG-01GTY21 |
| Subcategory |
Servo Drives |
| Series |
SGDG |
| Product Type |
Servo Amplifier |
| Control Method |
Torque Control |
| Input Voltage |
90–253 VAC |
| Input Phase |
Single-Phase |
| Input Frequency |
50/60 Hz |
| Input Current |
2.0 A |
| Output Voltage |
0–253 VAC |
| Output Phase |
Three-Phase |
| Output Frequency |
0–300 Hz |
| Output Current |
0.91 A |
| Rated Power Output |
0.1 kW (0.13 HP) |
| Motor Compatibility |
100 W Servo Motors |
| Mounting Type |
Panel Mount |
| Weight |
1.38 lbs (0.62 kg) |
Information About SGDG-01GTY21
The SGDG-01GTY21 is part of Yaskawa’s SGDG series of servo amplifiers developed for reliable control of low-power servo motors. It operates on single-phase AC input while providing three-phase AC output to compatible servo motors. The amplifier is designed for torque control applications and supports a broad output frequency range for flexible motion profiles. It is commonly used in small machinery, positioning systems, and automation equipment requiring precise servo performance.
Key Features:
- SGDG Series Servo Amplifier: Designed for accurate control of small AC servo motors
- Wide Input Voltage Range: Supports 90 to 253 VAC single-phase input operation
- Three-Phase Motor Output: Delivers controlled three-phase AC output up to 253 VAC
- Torque Control Method: Enables precise torque regulation for motion applications
- Compact Power Rating: Rated at 0.1 kW for low-power servo systems
- Broad Frequency Output Range: Supports motor operation up to 300 Hz
- Panel Mount Design: Suitable for control cabinet and enclosure installation
The SGDG-01GTY21 delivers the reliability and precision required for low-power servo motor control in industrial automation environments.
