Description

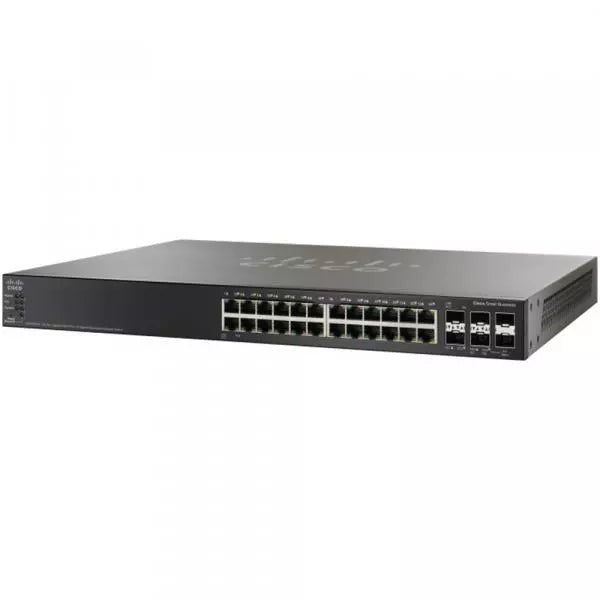

The SG500X-24-K9 is a 24-port Gigabit Ethernet Layer 3 switch from Cisco’s Small Business 500X Series, featuring 4 10G SFP+ uplinks, stacking capabilities, and advanced enterprise-class management. It delivers high-performance switching, flexible expansion, and robust security for small and medium-sized business networks.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
SG500X-24-K9
|
| Subcatecory |
Managed Stackable Switches
|
| Product Series |
Cisco Small Business 500X Series |
| Network Ports |
24x 10/100/1000 Mbps RJ-45
|
| Uplink Ports |
4x 10G SFP+ (2 dual-purpose stacking) |
Management Ports
|
1x DB-9 Console |
| Stacking Ports |
2x 10GE/5GE combo (also used as uplinks)
|
| Switching Capacity |
128 Gbps
|
| Forwarding Rate |
9.52 Mpps
|
| MAC Address Table Size |
16,000 entries
|
| Dimensions (H x W x D) |
5 x 22 x 16 inches
|
| Weight |
3.00 kg
|
Information About SG500X-24-K9
The Cisco SG500X-24-K9 is a high-performance managed switch designed for demanding small business and branch office environments that require high throughput and advanced features. Offering 24 Gigabit Ethernet RJ45 ports and 4 10G SFP+ uplinks (with 2 dual-purpose 10GE/5GE stacking slots), it ensures scalable and resilient network connectivity. Built with Layer 3 routing capabilities, the SG500X-24-K9 supports inter-VLAN routing, static routing, RIP, and VRRP, enhancing network efficiency without the need for a separate router. With stacking support, up to 8 units can be managed as a single entity, providing increased redundancy, management simplicity, and bandwidth aggregation.
Key Features:
-
Enterprise-Grade Connectivity: 24x 1G RJ45 ports with 4x 10G SFP+ uplinks for high-speed network aggregation.
-
Advanced Layer 3 Features: Supports static routing, VLAN routing, and dynamic routing protocols.
-
Stacking Support: Stack up to 8 switches with dual-purpose stacking ports for redundancy and scalability.
-
High Throughput and Reliability: 128 Gbps switching capacity with 9.52 Mpps forwarding rate for demanding workloads.
-
Flexible Management: Features a console port and full web-based, CLI, and SNMP management options.
The SG500X-24-K9 is ideal for growing businesses needing scalable, secure, and high-speed network infrastructure with easy manageability.
