Description

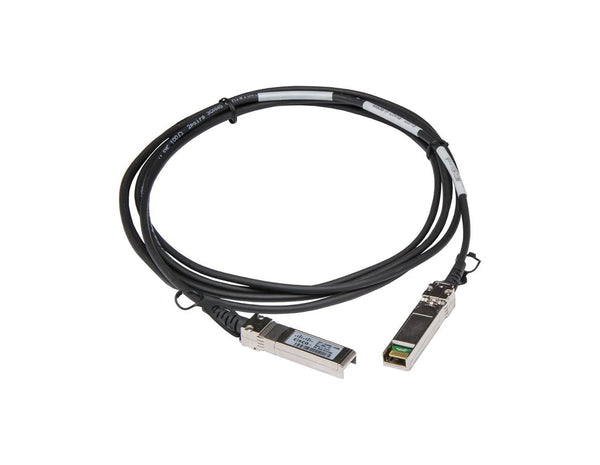

Cisco SFP-H10GB-CU5M is a 5-meter 10G SFP+ passive Twinax copper cable designed for short-distance, high-speed connections between networking equipment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
SFP-H10GB-CU5M |
| Subcategory |
|
| Connector Type |
SFP+ to SFP+ |
| Media |
Copper |
| Minimum Bend Radius |
30mm |
| Cable Length |
5m (16.4ft) |
| Cable Type |
|
| Power Consumption |
≤0.1W |
| Protocols |
1x InfiniBand QDR, DDR, SDR, 10 Gigabit Ethernet, Fibre Channel |
| Vendor Name |
FS |
| Max Data Rate |
10Gbps |
| Power Supply |
3.3V
|
| Wire AWG |
24AWG |
| Jacket Material |
PVC (OFNR) |
| Temperature |
0 to 70°C (32 to 158°F) |
| Application |
10G Ethernet |
| Weight |
0.311 kgs |
Information About SFP-H10GB-CU5M
The Cisco SFP-H10GB-CU5M is a 5-meter SFP+ to SFP+ 10-Gigabit Ethernet passive Twinax copper cable. It is primarily used for short-range, high-speed data connections in data centers, particularly for interconnecting Cisco switches, routers, and servers within the same rack or between adjacent racks. As a cost-effective and low-power alternative to optical transceivers, it is ideal for environments where distance is not a limiting factor.
Key Features:
-
Cable Type: SFP+ to SFP+ passive Twinax cable
-
Data Rate: 10 Gbps full duplex
-
Cable Length: 5 meters (16.4 feet)
-
Connector Type: SFP+ direct-attach copper (DAC)
-
Compatibility: Cisco switches and routers with SFP+ ports
-
Power Consumption: Very low, as it's a passive cable (no electronics required)
-
Performance: Low latency, high-speed transmission for short distances
-
Use Case: Rack-to-rack or intra-rack connections in high-density data centers
-
Length: 5 meters
-
Cable Diameter: Approximately 6.2 mm
-
Weight: Around 311 grams (11 oz)
-
Temperature Range: 0°C to 70°C operating
-
Compliance: IEEE 802.3ae (10GBASE-CU), RoHS-compliant
