Description

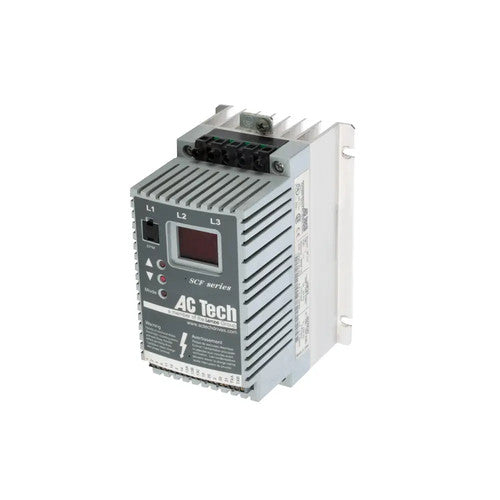

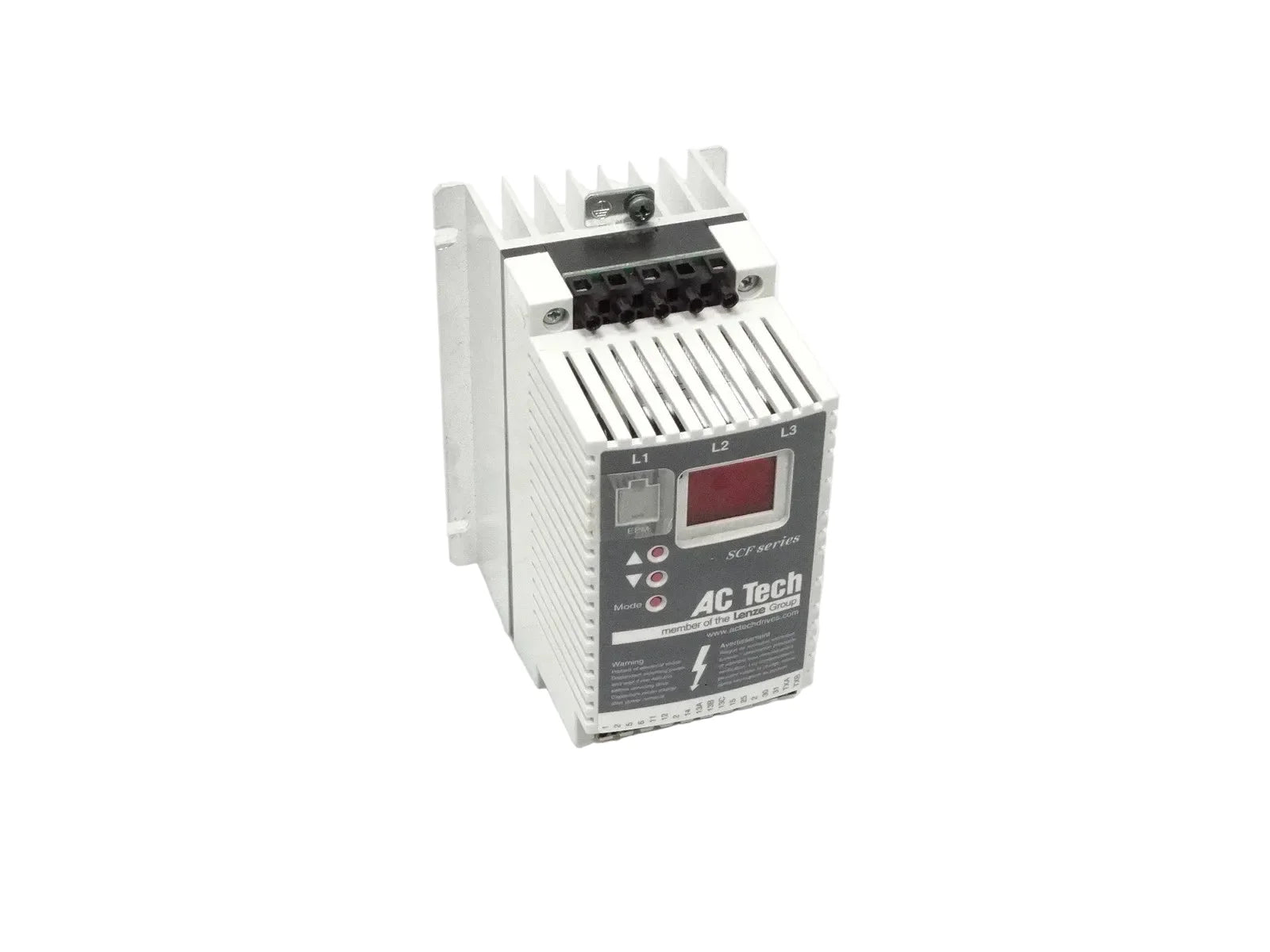

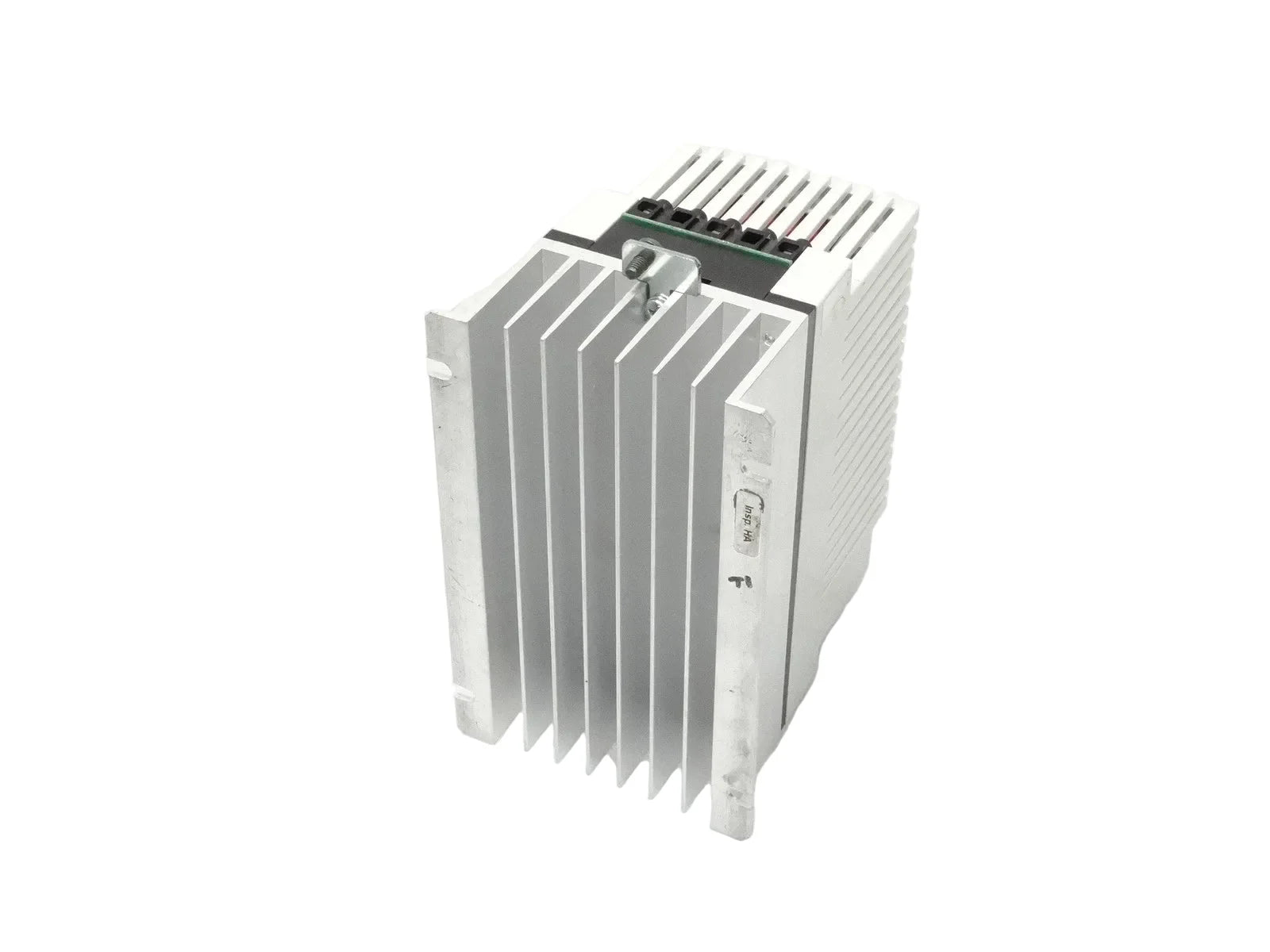

The Lenze SF210 is a sub-micro variable frequency drive designed for precise speed control of AC motors in compact industrial installations. Operating on 208/240 VAC three-phase input, the SF210 delivers reliable performance for 1 HP motor applications while supporting flexible mounting and communication integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Motor Controls |
| Part Number |
SF210 |
| Subcategory |
Variable Frequency Drives |
| Series |
SCF Series |
| Drive Type |
AC Motor Drive / Frequency Inverter |
| Input Voltage |
208–240 VAC |
| Input Frequency |
50/60 Hz |
| Input Phase |
3 Phase |
| Motor Power Rating |
1 HP |
| Rated Output Power |
0.75 kW |
| Speed Control |
Variable Speed |
| Communication Protocol |
Modbus |
| Mounting Type |
DIN Rail Mount |
| Enclosure Rating |
IP20 |
| Weight |
2.5 lbs |
Information About SF210
The SF210 is part of Lenze AC Tech’s SCF series, developed to provide full-featured motor control in a compact drive platform. It incorporates frequency inverter technology to regulate motor speed and torque efficiently across standard industrial environments. The drive is designed for compatibility with three-phase AC motors and includes integrated Modbus communication for system-level control and monitoring. Its DIN rail mountable, IP20-rated enclosure makes it well suited for control panels with limited space requirements.
Key Features:
- SCF Series Sub-Micro Design: Compact variable frequency drive engineered for space-constrained control panels.
- Three-Phase Input Operation: Supports 208–240 VAC three-phase input for stable industrial power compatibility.
- Variable Speed Control: Provides precise motor speed regulation through frequency inverter technology.
- Integrated Modbus Communication: Enables network connectivity for monitoring and control within automation systems.
- Rated Motor Capacity: Designed to control AC motors up to 1 HP (0.75 kW).
- DIN Rail Mounting: Allows fast, secure installation in standardized control enclosures.
- IP20 Enclosure Rating: Suitable for protected indoor industrial environments.
The SF210 delivers the reliability and precision required for compact industrial variable speed motor control applications.
