[shortdesc]

• Seagate SkyHawk 8TB 7.2k RPM SATA 6Gb/s HDD (ST8000VX010) is a surveillance-optimized hard drive designed for 24/7 workloads, supporting up to 64 HD cameras with advanced data protection and reliability

[/shortdesc]

[properties]

Property
Model	ST8000VX010
Product Series	Seagate SkyHawk
Capacity	8TB
Interface	SATA 6 Gb/s
Form Factor	3.5-inch
Recording Technology	CMR (Conventional Magnetic Recording)
Drive Design	Air-based
Application Use	NVRs, Video DVRs (Surveillance Systems)
Max. Supported Drive Bays	Up to 16
Max. Supported Cameras	Up to 64 HD cameras
RV Sensors	Yes

[/properties]

[specifications]

Specification
Cache	256 MB
Max Sustained Transfer Rate	180 MB/s
Load/Unload Cycles	600
Nonrecoverable Read Errors (Max)	1 per 10¹⁴ bits read
Workload Rate Limit	180 TB/year
Power-On Hours per Year	8760 hours
Startup Current (12V, Typical)	1.8 A
Average Operating Power	5.3 W
Idle Average Power	3.4 W
Standby/Sleep Mode Power	0.25 W / 0.25 W
Operating Temperature (min/max)	0°C to 65°C (ambient/reporting)
Non-Operating Temperature	-40°C to 70°C
MTBF	1,000,000 hours
Dimensions (H x W x D)	26.1 mm x 101.6 mm x 146.99 mm
Weight	630 g

[/specifications]

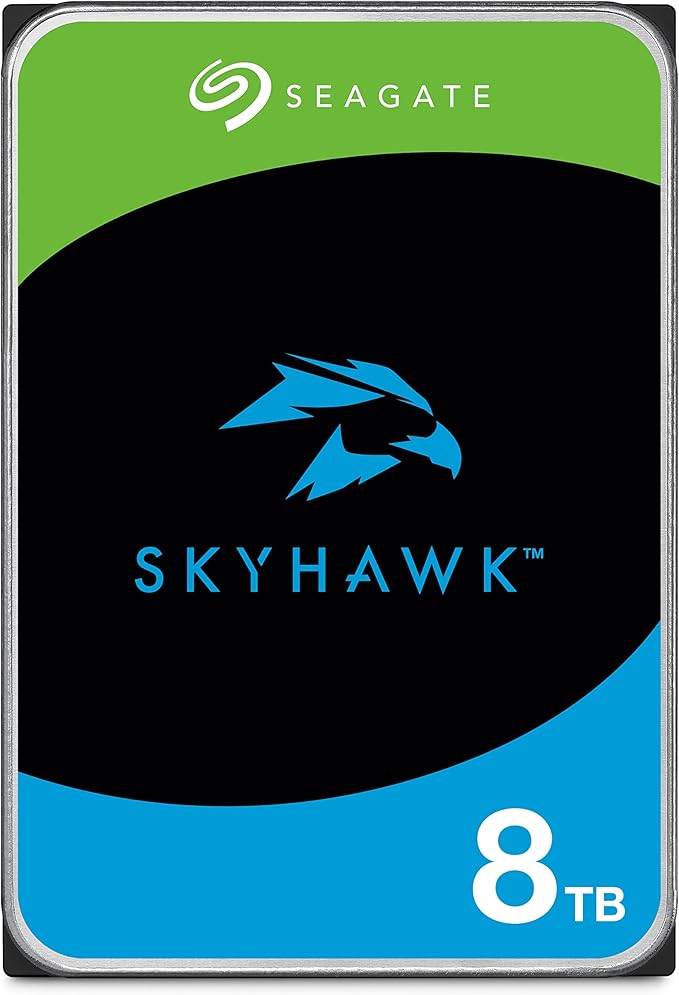

Seagate SkyHawk 8TB 7.2k RPM SATA 6Gb/s HDD (ST8000VX010)

The Seagate SkyHawk ST8000VX010 is a high-capacity surveillance hard drive built to handle 24/7 workloads with up to 180TB per year workload rate. Engineered with ImagePerfect™ firmware, this drive ensures seamless video recording from up to 64 HD cameras without frame loss. It features built-in RV sensors for multi-bay system optimization and SkyHawk Health Management for proactive monitoring. With a tarnish-resistant design and lower power consumption, it offers long-term reliability and efficiency in surveillance environments.

Key Features:

• Surveillance-Optimized: Designed for 24/7 operation, handling up to 180TB per year workloads.
• Supports Up to 64 HD Cameras: Ensures smooth and uninterrupted video recording.
• ImagePerfect™ Firmware: Reduces dropped frames for enhanced video clarity.
• SkyHawk Health Management: Provides proactive drive monitoring and protection.
• Multi-Bay Compatibility: Built-in RV sensors maintain performance in RAID environments.
• Lower Power Consumption: Reduces heat emissions for improved system reliability.
• Tarnish-Resistant Components: Increases durability in harsh environments.

Technical Specifications:

• Model Number: ST8000VX010
• Capacity: 8TB
• Interface: SATA 6Gb/s
• Rotational Speed: 7200 RPM
• Recording Technology: CMR (Conventional Magnetic Recording)
• Cache: 256MB
• Maximum Sustained Transfer Rate: 180MB/s
• Drive Bays Supported: Up to 16
• Power-On Hours: 8760 hours/year
• Workload Rate Limit: 180TB/year
• Mean Time Between Failures (MTBF): 1,000,000 hours
• Startup Current (12V): 1.8A
• Average Operating Power: 5.3W
• Idle Power Consumption: 3.4W
• Standby/Sleep Mode Power Consumption: 0.25W
• Operating Temperature: 0°C to 65°C
• Storage Temperature: -40°C to 70°C
• Dimensions (H x W x D): 26.1mm x 101.6mm x 146.99mm
• Weight: 630g
