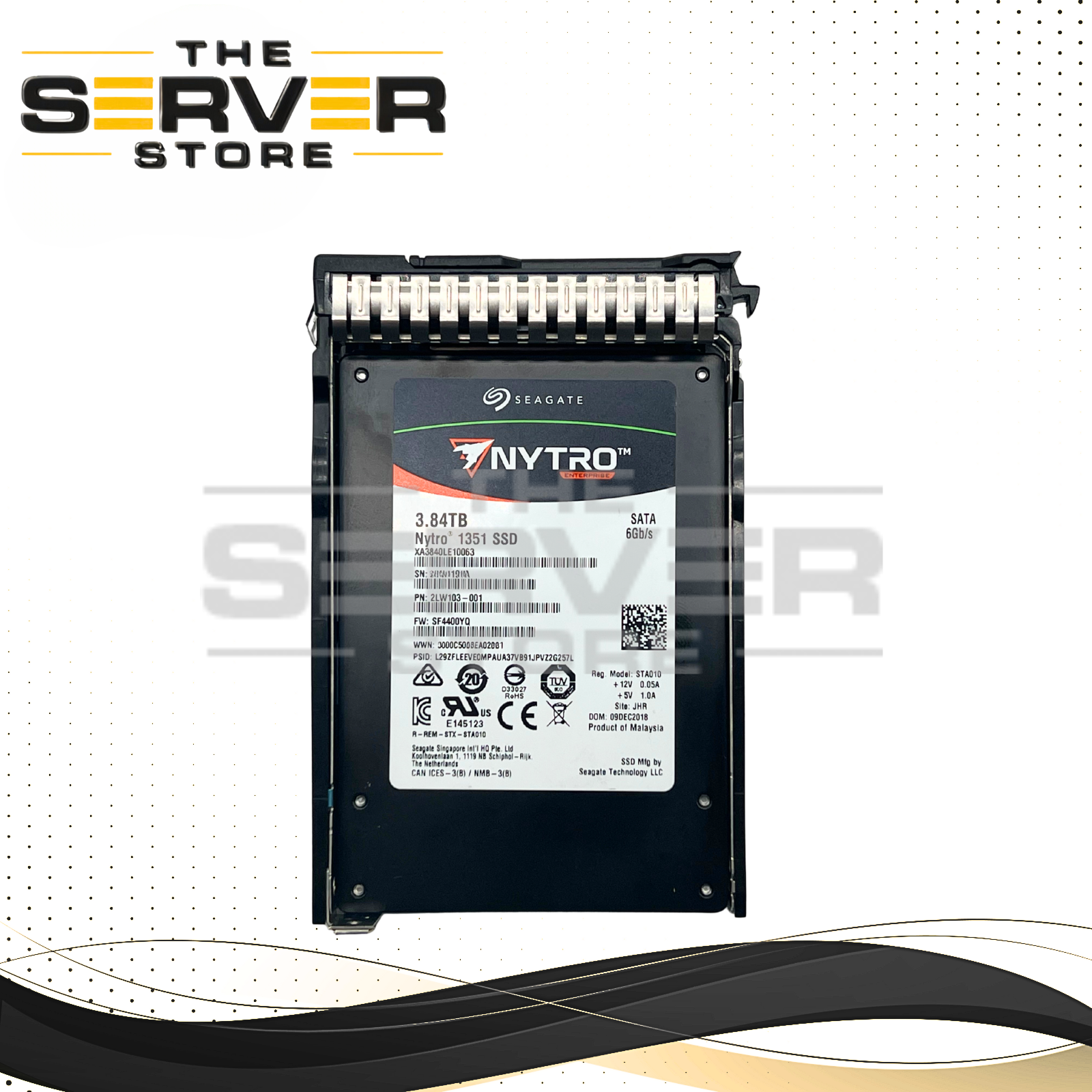

Seagate 3.84TB SATA 6G RI (with SFF SC Tray) 2.5" SED SSD Nytro 1351 Series XA3840LE10063 for HPE ProLiant Server
Other Related Part Number: 2LW103-001
Overview
The Seagate Nytro 1351 XA3840LE10063 is an enterprise-grade Read Intensive (RI) Self-Encrypting Drive (SED) engineered for data center, cloud, and enterprise server environments. Built with 3D TLC NAND and a SATA 6Gb/s interface, it delivers reliable performance, solid endurance, and integrated hardware-based security. In Hewlett Packard Enterprise (HPE) systems, it is commonly deployed for boot, caching, and read-heavy workloads.
Core Specifications
-
Capacity: 3.84TB (3840GB)
-
Interface: SATA III 6Gb/s
-
Form Factor: 2.5" SFF (7mm height)
-
NAND Type: 3D TLC NAND
-
Workload Type: Read Intensive (RI)
-
Endurance: 1 DWPD (~12,300 TBW over 5 years)
-
MTBF: 2,000,000 hours
Performance
-
Sequential Read: Up to 560 MB/s
-
Sequential Write: Up to 535 MB/s
-
Random Read (4KB): Up to 90,000 IOPS
-
Random Write (4KB): Up to 22,000 IOPS
-
Latency: ~172 µs (read) / ~58 µs (write)
Power & Physical
-
Power Consumption: ~3.5W active / ~1.2W idle
-
Dimensions: 7mm (H) x 70.1mm (W) x 100.25mm (D)
-
Weight: ~82g
-
Operating Temperature: 0°C to 70°C
Security & Enterprise Features
-
Encryption: AES-256 Self-Encrypting Drive (SED)
-
Security Standard: TCG Opal compliant
- Instant Secure Erase (ISE)
- Power Loss Protection (PLP)
- End-to-End Data Protection (SHIELD / RAISE)
- DuraWrite™ Technology
HPE Server Compatibility
HPE ProLiant & Synergy
DL320 Gen11, DL360 Gen11, DL380 Gen11, DL560 Gen11; DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580 Gen10/Gen10+; DL120, DL160, DL360, DL380, DL388 Gen8/Gen9; ML30 Gen10/Gen11, ML110 Gen10/Gen11, ML350 Gen9/Gen10/Gen11; Synergy 480 Gen10 Plus, Synergy 660 Gen10; Apollo XL170r, XL190r, XL230a, XL270d
HPE Equivalent Part Numbers
-
Option: 877764-B21, P40500-B21
-
Spare: 878855-001, P41525-001
Drive Carrier / Tray Compatibility
-

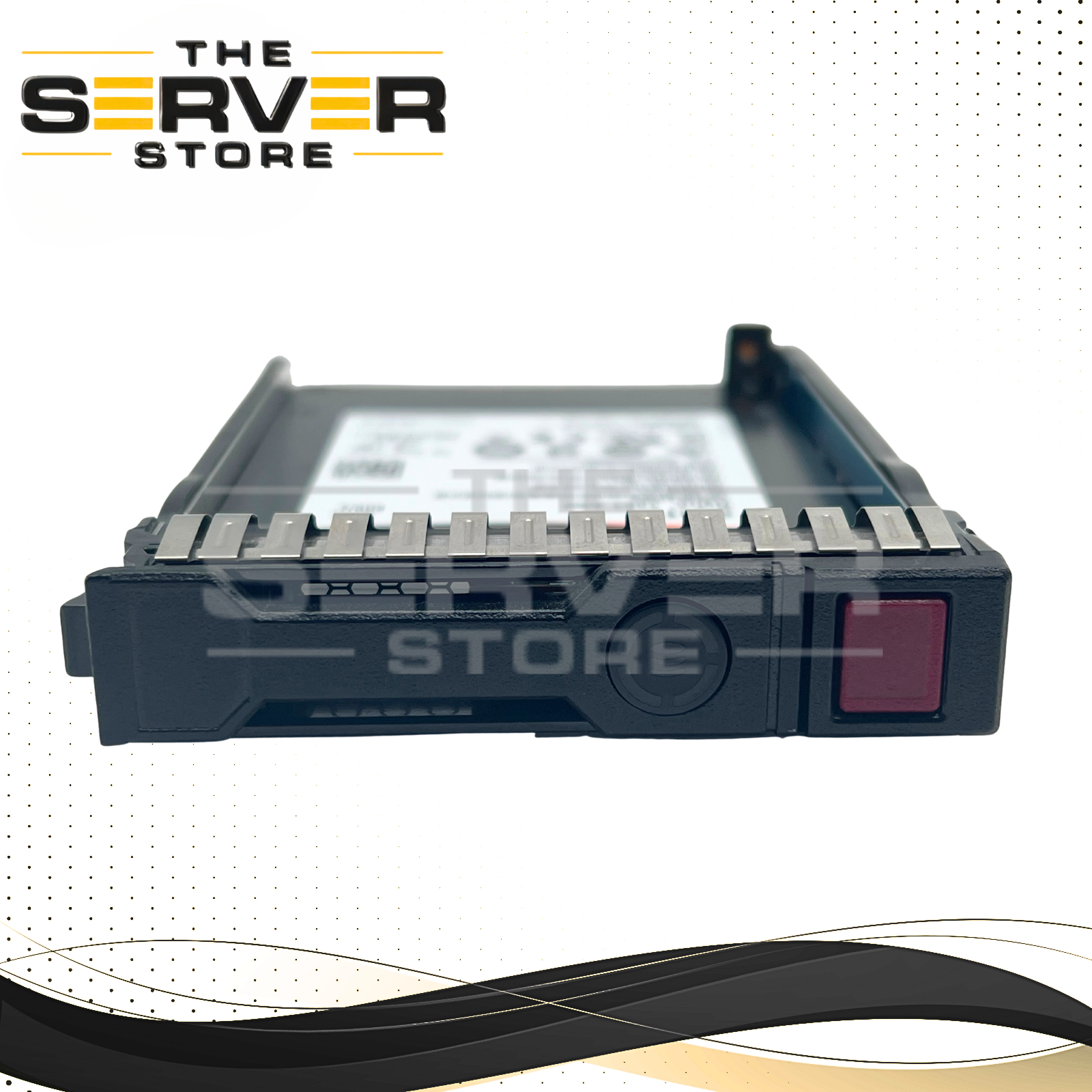

Included: HPE 2.5" SFF Smart Carrier (SC) Tray
-
SC Carrier: Compatible with Gen8 / Gen9 / Gen10 servers
-
BC Carrier Required: For Gen10 Plus / Gen11 systems (may require different tray)
Compatibility Notes
- Requires 2.5" SFF SATA-compatible backplane/controller
- Works in SAS backplanes (SAS controllers support SATA drives)
- Non-HPE firmware may show as “Non-Authentic” or “Uncertified”
- Limited support for HPE digitally signed firmware and SmartSSD Wear Gauge on non-HPE drives
Summary
The Seagate Nytro 1351 3.84TB SSD offers a strong balance of performance, endurance, and security, making it a dependable solution for HPE ProLiant Gen8–Gen11 servers, especially in read-intensive enterprise workloads such as virtualization, web hosting, and content delivery.
