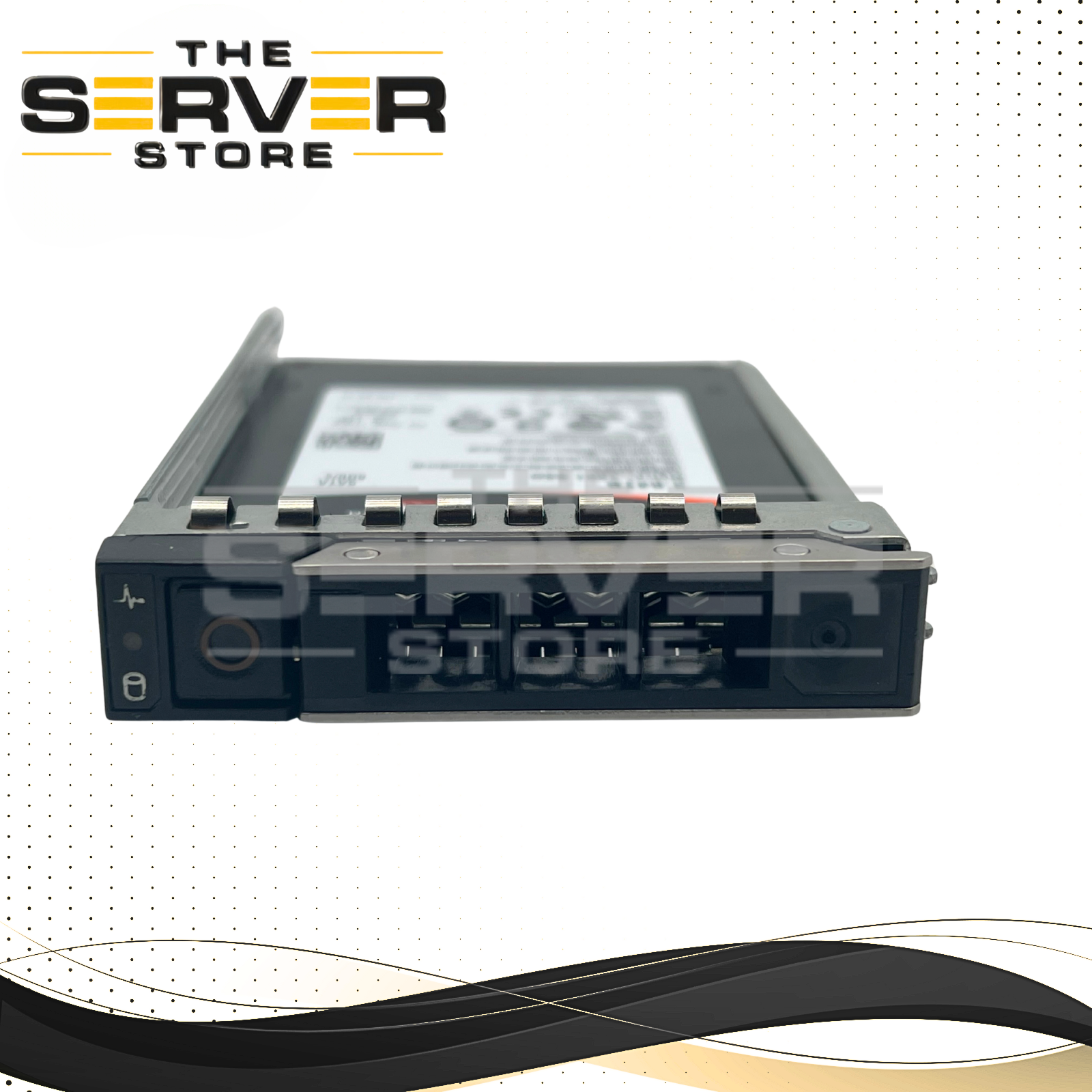

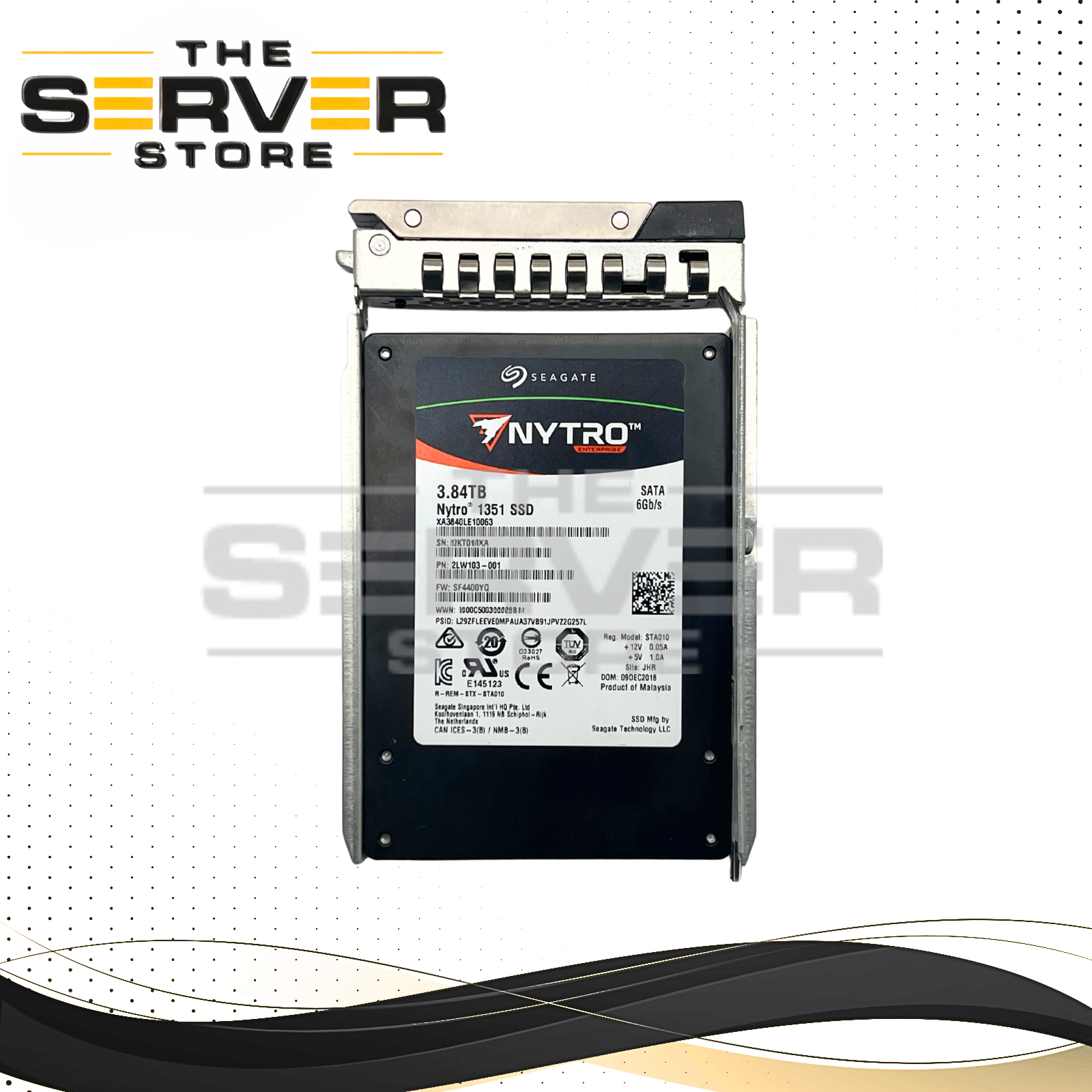

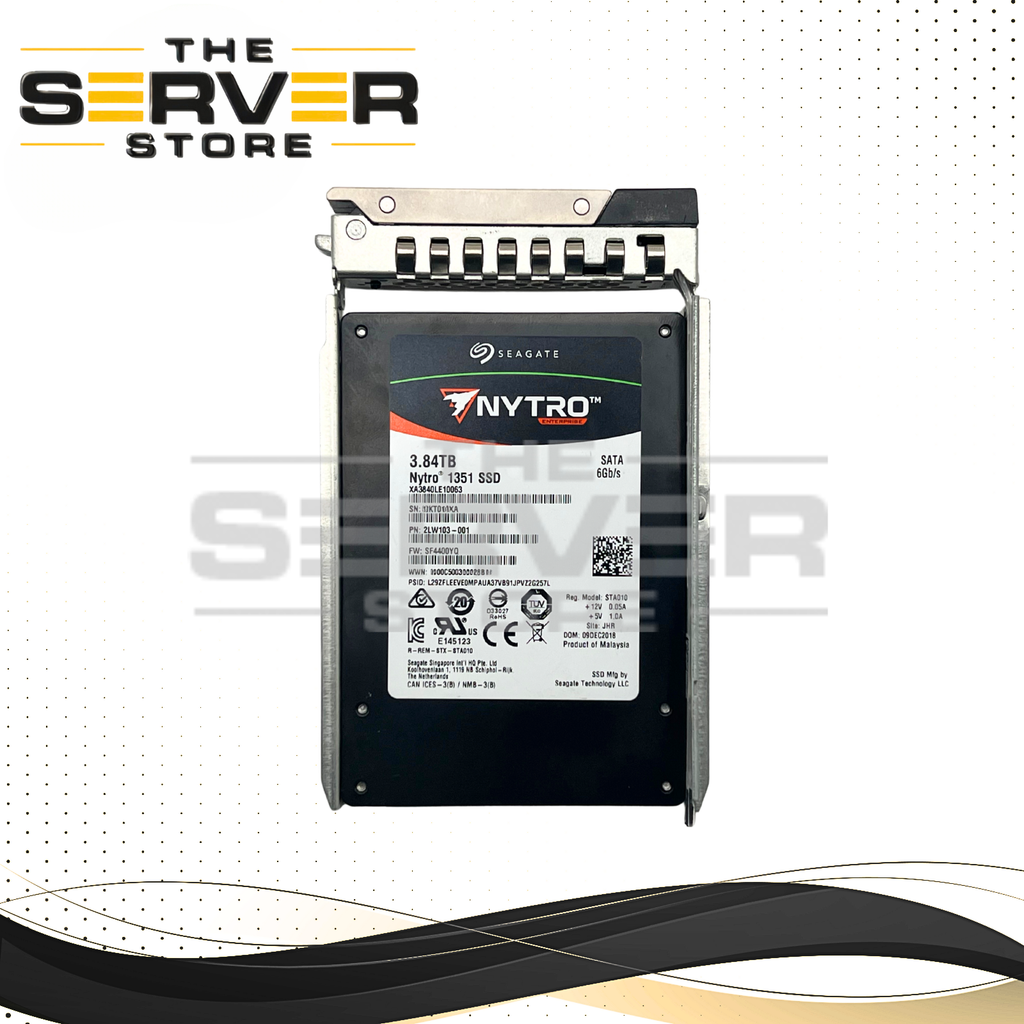

Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063 Dell PowerEdge Server Gen 16th 15th 14th
Overview
The Seagate Nytro 1351 XA3840LE10063 is an enterprise-grade Read Intensive (RI) Self-Encrypting Drive (SED) designed for modern data center and server environments. Built with 3D TLC NAND and a SATA 6Gb/s interface, it delivers dependable performance, strong endurance, and integrated AES-256 security. In **Dell Technologies PowerEdge systems, it is commonly used for virtualization, boot, and read-heavy workloads.
Core Specifications
-
Capacity: 3.84TB (3840GB)
-
Interface: SATA III 6Gb/s
-
Form Factor: 2.5" SFF (7mm height)
-
NAND Type: 3D TLC NAND
-
Workload Type: Read Intensive (RI)
-
Endurance: 1 DWPD (~12,300 TBW over 5 years)
-
MTBF: 2,000,000 hours
Performance
-
Sequential Read: Up to 560 MB/s
-
Sequential Write: Up to 535 MB/s
-
Random Read (4KB): Up to 90,000 IOPS
-
Random Write (4KB): Up to 22,000 IOPS
-
Latency: ~172 µs (read) / ~58 µs (write)
Power & Physical
-
Power Consumption: ~3.5W active / ~1.2W idle
-
Dimensions: 7mm (H) x 70.1mm (W) x 100.25mm (D)
-
Weight: ~82g
-
Operating Temperature: 0°C to 70°C
Security & Enterprise Features
-
Encryption: AES-256 Self-Encrypting Drive (SED)
- TCG Opal Compliant
- Instant Secure Erase (ISE)
- Power Loss Protection (PLP)
- End-to-End Data Protection (SHIELD / RAISE)
- DuraWrite™ Technology
Dell PowerEdge Server Compatibility (with 0DXD9H Tray)
Dell 0DXD9H Drive Tray
R260, R360, T560, R660, R660xs, R6615, R6625, R760, R760xa, R760xs, R7615, R7625, R860, R960, HS5610, HS5620; R350, R450, T550, R550, R650, R650xs, R6515, R6525, R750, R750xa, R750xs, R7515, R7525, XE8545; R240, R340, R440, R540, R640, R740, R740xd, R740xd2, R840, R940, R940xa, R6415, R7415, R7425, T440, T640; XC640, XC740xd, XC940, XC6420; Precision 3930, Precision 7920
Drive Tray / Carrier Details
-
Tray Model: Dell 0DXD9H / DXD9H
-
Form Factor: 2.5" Small Form Factor (SFF) hot-swap carrier
-
Supported Drives: SATA & SAS SSDs/HDDs (up to 15mm height)
-
Interface Support: SATA, SAS, NVMe (U.2/U.3 compatible bays)
-
Bay Requirement: 2.5" SFF front-access drive bays
Compatibility Notes
- Requires SATA-compatible controller/backplane (not NVMe-only bays)
- Works in SAS backplanes (backward compatible with SATA drives)
- Fully compatible with Dell 14G, 15G, and 16G servers using 0DXD9H trays
- May display as “Non-Dell Certified”, but functions normally
- Ideal for read-heavy workloads such as virtualization, web hosting, and content delivery
Summary
The Seagate Nytro 1351 3.84TB SSD, paired with the Dell 0DXD9H SFF tray, provides a fully compatible, high-performance storage solution for Dell PowerEdge 14th, 15th, and 16th Generation servers, offering strong reliability, enterprise security, and seamless integration into modern data center environments.
