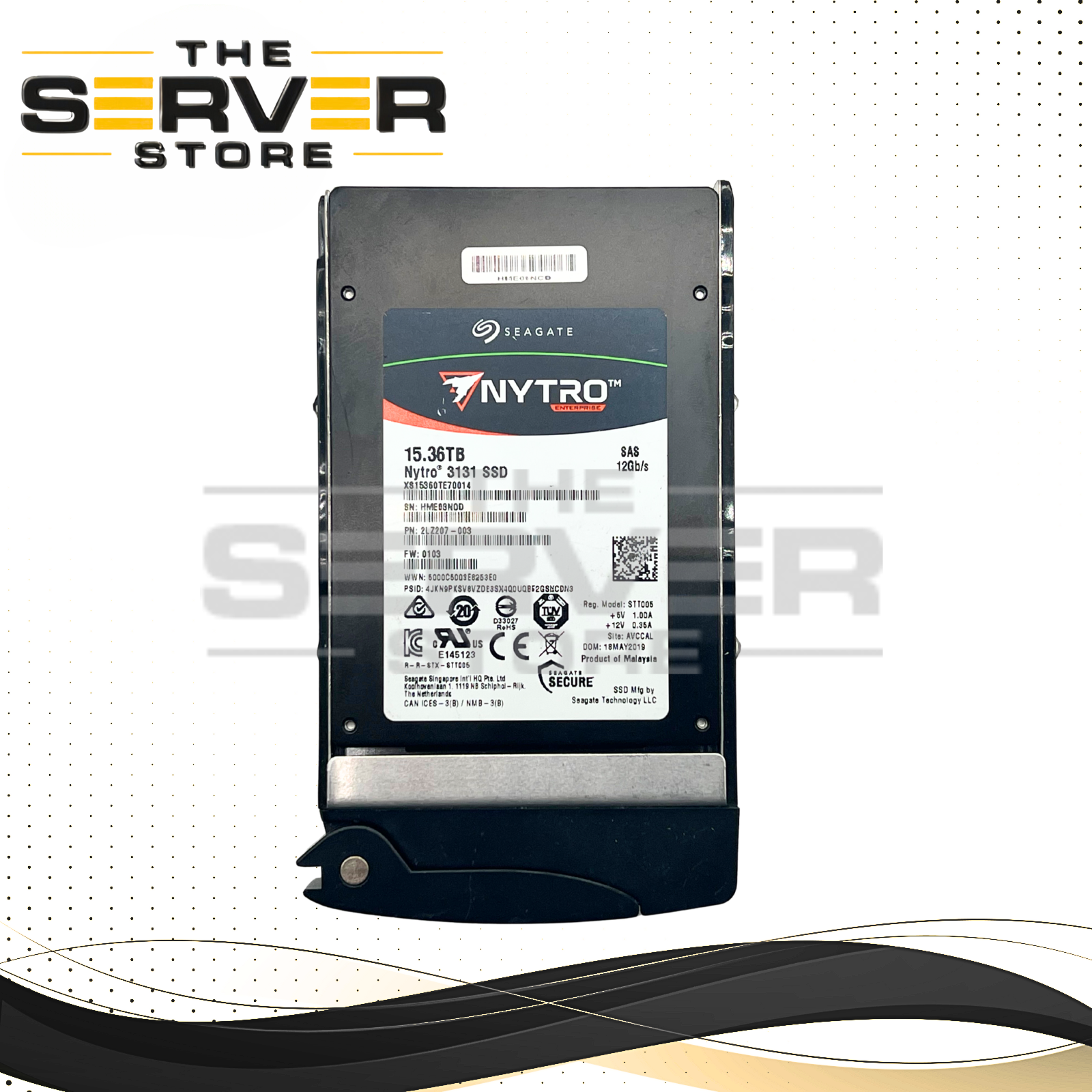

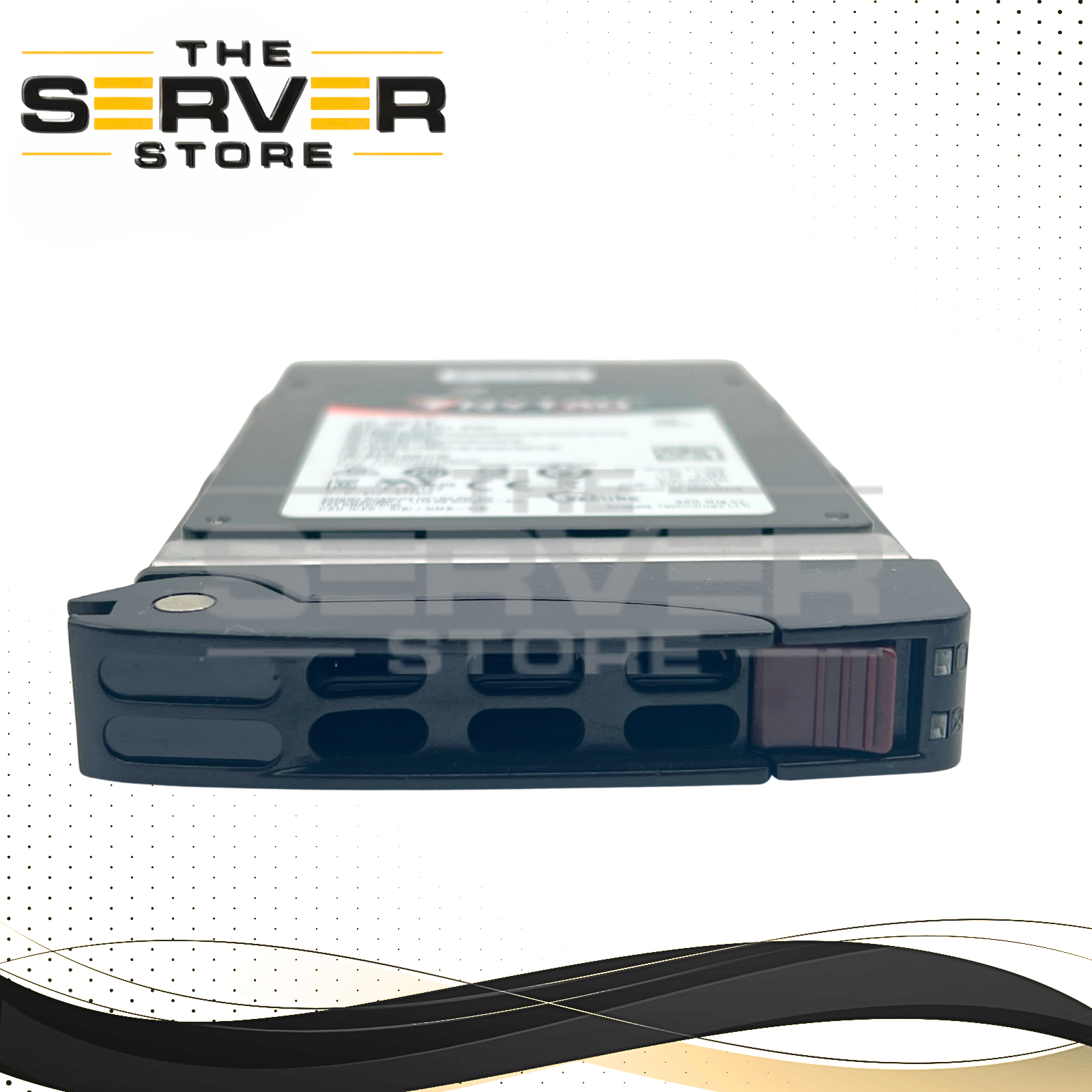

Seagate 15.36TB SAS 12Gbps RI SFF 2.5" SED SSD Nytro 3131 Series XS15360TE70014 for Supermicro Server
Specifications & Performance
The Seagate Nytro 3131 XS15360TE70014 is a 15.36TB enterprise-class SAS SSD designed for read-intensive workloads, delivering consistent performance, high endurance, and dual-port redundancy for mission-critical data center environments.
Key Specifications
- Capacity: 15.36TB
- Interface: SAS 12Gb/s (dual-port, backward compatible with 6Gb/s)
- Form Factor: 2.5" SFF (15mm height)
- NAND Type: 3D Enterprise eTLC
- Endurance: 0.7 DWPD (Read Intensive class)
- Total Bytes Written: ~20,000 TBW
- UBER: 1 per 10¹⁷ bits read
- MTBF: Enterprise-class multi-million hour reliability
- Power Consumption: ~4.4W idle (low power operation)
- Security: Self-Encrypting Drive (SED), AES-256, TCG Enterprise compliant
- Data Protection: Power-loss protection + T10 DIF support
Performance
- Sequential Read: up to 2,100 MB/s (dual-port)
- Sequential Write: up to 1,000 MB/s
- Random Read (4K): up to 145,000 IOPS
- Random Write (4K): up to 13,000 IOPS
Supermicro Server Compatibility (with tray support)
Compatible with Supermicro systems featuring SAS 12Gb/s backplanes and 2.5" SFF 15mm drive bays.
1U Systems
SYS-111C-NR, SYS-121BT-HNTR, SYS-1029U-TN10RT
2U Systems
SYS-221BT-HNTR, SYS-2029U-TR4, AS-2124GS-TNR
4U / GPU Systems
SYS-4029GP-TRT2, AS-4124GS-TNR
Multi-Node & High-Density Systems
BigTwin: SYS-621BT-HNTR
FatTwin: SYS-6027TR-DTRF
GrandTwin / TwinPro: ARS-110M-NR
SuperStorage & Edge Platforms
SSG-1029P-NES24R
SSG-2029P-E1CR24L
SYS-5019P-MR
SYS-6019P-WTR
Important Installation Notes
- Requires 2.5" SFF 15mm SAS-compatible hot-swap bay
- Must use Supermicro standard SFF tray
- Ensure SAS 12Gb/s HBA or RAID controller support
- Some systems may require firmware updates for full 15.36TB recognition
- Dual-port SAS enables redundancy and high availability in enterprise deployments
