Description

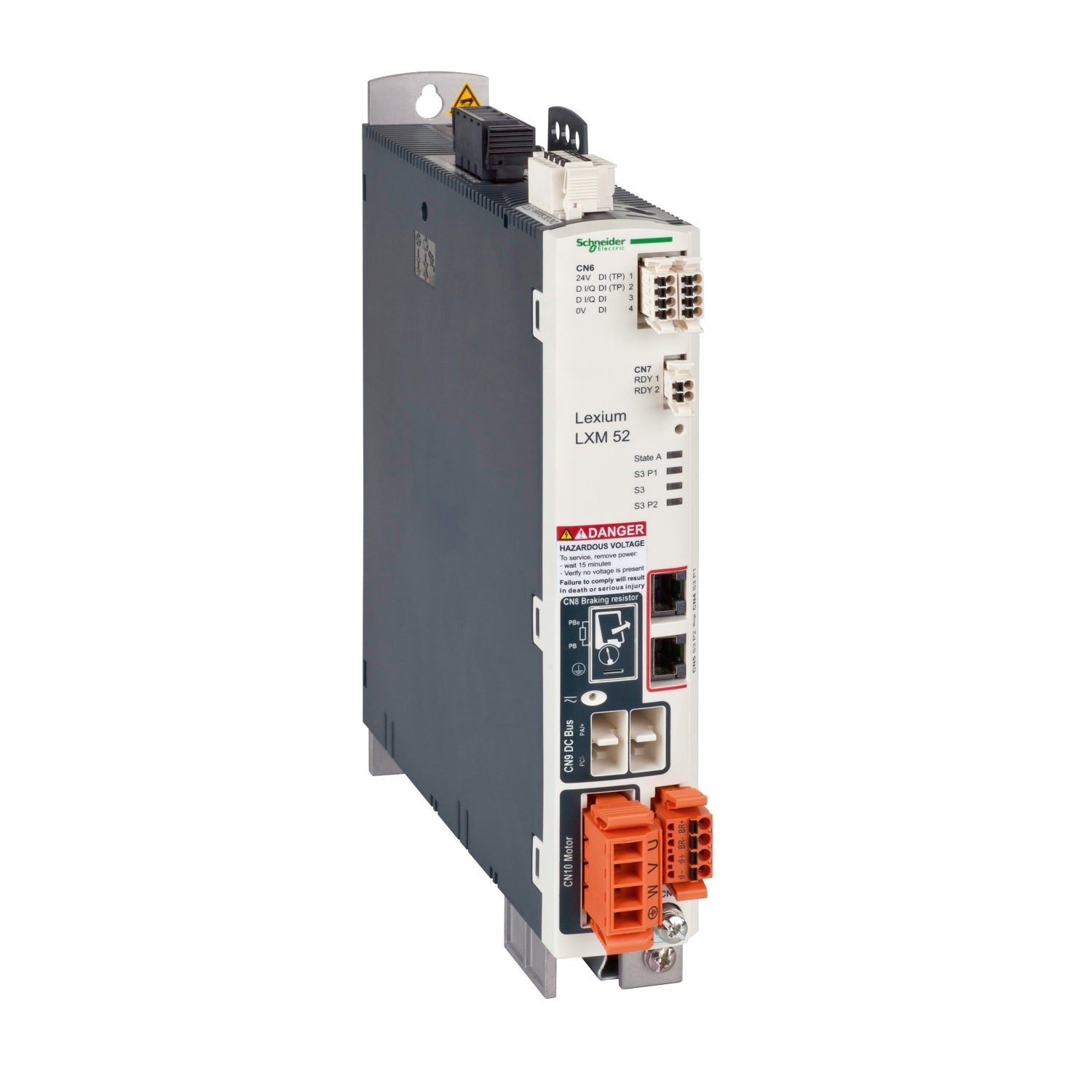

The Schneider Electric LXM52DD12C41000 is a Lexium 52 standalone servo drive engineered for precise motion control in industrial automation systems. It delivers efficient motor performance with a continuous output current of 3A and supports supply voltages from 208V to 480V. Designed for integration into PacDrive 3 architectures, it is ideal for packaging, material handling, and machine control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Part Number |
LXM52DD12C41000 |
| Category |
Motors & Drives |
| Subcategory |
Servo Drive |
| Product Type |
Single Servo Drive |
| Series |
Lexium 52 (PacDrive 3) |
| Supply Voltage |
208–480 VAC (three phase) |
| Supply Frequency |
50/60 Hz |
| Continuous Output Current |
3 A @ 8 kHz |
| Peak Output Current |
12 A |
| Nominal Power |
0.9 kW |
| Continuous Power |
Up to 1.6 kW |
| Switching Frequency |
8 kHz |
| Communication Interface |
SERCOS III (integrated) |
| Digital Inputs |
4 digital + 4 touch probe inputs |
| Digital Outputs |
2 digital outputs (24 V DC) |
| Protection Rating |
IP20 |
| Operating Temperature |
0°C to 50°C |
| Dimensions (H x W x D) |
270 x 48 x 217 mm |
| Certifications |
CE, UL |
| Weight |
4.0 lbs |
Information About LXM52DD12C41000
The LXM52DD12C41000 is a Schneider Electric servo drive from the Lexium 52 series, developed as part of the PacDrive 3 automation platform. It features an integrated SERCOS III communication interface for high-speed, deterministic motion control networking. The unit is compatible with a wide range of SH3 and MH3 servo motors, enabling flexible system design across various industrial applications. Built with a compact and modular form factor, it provides reliable performance, advanced diagnostics, and seamless integration into modern automation environments.
Key Features:
- Standalone Servo Drive Design: Operates independently within PacDrive 3 systems for flexible machine architectures
- SERCOS III Communication: Enables high-speed real-time motion control networking
- Wide Voltage Range: Supports 208–480 VAC for global industrial applications
- Integrated Digital I/O: Includes 4 digital inputs, 4 touch probe inputs, and 2 digital outputs
- Compact Form Factor: Space-saving design for efficient panel integration
- Peak Current Capability: Delivers up to 12A peak for dynamic load handling
- Servo Motor Compatibility: Supports multiple SH3 and MH3 motor configurations
- Industrial Certifications: Complies with CE and UL standards for safety and reliability
The LXM52DD12C41000 delivers the reliability and precision required for advanced motion control in packaging, automation, and material handling systems.
