Description

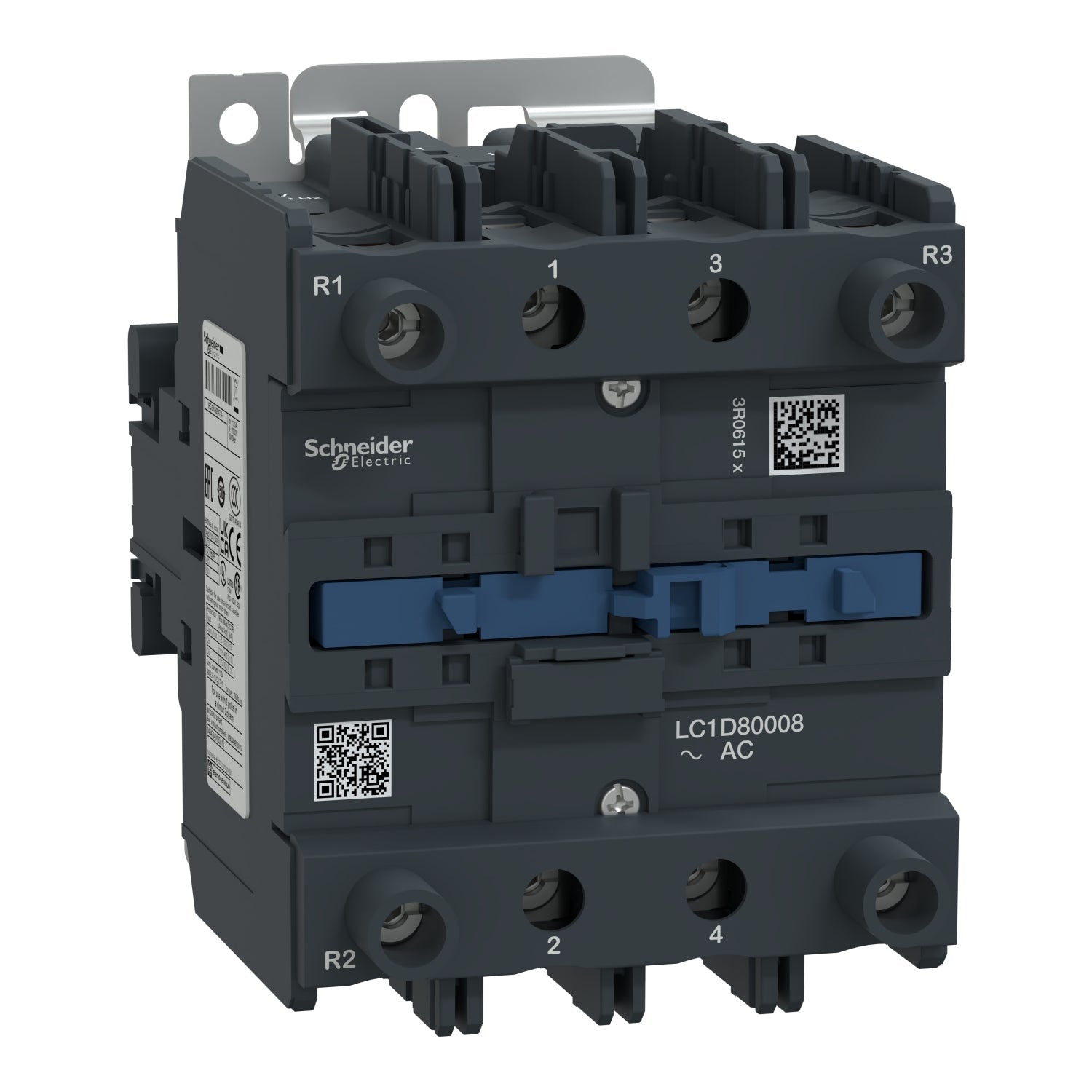

The Schneider Electric LC1D80008F7 is a TeSys Deca 4-pole contactor designed for switching non-inductive and resistive loads in industrial power circuits. It uses a 110V AC 50/60Hz control coil and supports AC-1 applications up to 125A, making it suitable for control panels, power distribution assemblies, and load switching systems that require stable contact performance. Its 2NO+2NC pole arrangement allows flexible use in applications where both normally open and normally closed power paths are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Industrial Automation |
| Part Number |
LC1D80008F7 |
| Subcategory |
Contactors |
| Series |
TeSys Deca |
| Product Type |
Nonreversing contactor |
| Poles |
4P |
| Pole Contact Composition |
2 NO + 2 NC |
| Contactor Application |
Resistive load |
| Utilization Category |
AC-1 |
| Rated Operational Voltage |
Power circuit <= 690 V AC, 25...400 Hz |
| Rated Operational Current |
125 A at <= 1000 V AC-1 |
| Control Circuit Voltage |
110 V AC 50/60 Hz |
| Rated Insulation Voltage |
1000 V IEC 60947-4-1 |
| Rated Impulse Withstand Voltage |
8 kV |
| Mechanical Durability |
4 million cycles |
| Electrical Durability |
0.8 million cycles at 125 A AC-1 <= 440 V |
| Maximum Operating Rate |
3600 cycles/hour at 60 °C |
| Mounting Support |
DIN rail or plate |
| Ingress Protection |
IP20 front face |
| Dimensions (H x W x D) |
5.0 x 3.8 x 5.5 in (127 x 96 x 140 mm) |
| Weight |
4.06 lb (1.84 kg) |
Information About LC1D80008F7
The LC1D80008F7 is part of Schneider Electric’s TeSys Deca range and is built as a nonreversing 4-pole contactor with 2 normally open and 2 normally closed contacts for AC-1 resistive-load duty. It uses screw terminals for the power circuit and screw clamp terminals for the control circuit, supporting practical wiring in panel-built industrial assemblies. The unit can be mounted on DIN rail or fixed directly to a plate, and it is designed for operating rates up to 3600 cycles per hour in ambient conditions up to 60°C. This model is also compatible with side- and front-mounted auxiliary contact blocks ordered separately and is certified to multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine approvals.
Key Features:
- 4-Pole Contact Layout: Configured with 2 NO and 2 NC power contacts for flexible resistive-load switching.
- 125A AC-1 Rating: Supports non-inductive load applications up to 125A in AC-1 duty.
- 110V AC Coil: Operates with a 110V AC 50/60Hz control coil for standard control-voltage systems.
- TeSys Deca Design: Built within Schneider Electric’s TeSys Deca platform for industrial switching assemblies.
- DIN Rail or Plate Mounting: Supports either rail mounting or screw fixing for installation flexibility.
- Screw Terminal Connections: Uses screw-type power terminals and screw clamp control terminals for secure conductor termination.
- High Mechanical Endurance: Rated for 4 million mechanical operating cycles in repeated-duty service.
- Global Compliance: Approved to IEC, UL, CSA, CCC, EAC, and Marine standards for broad industrial acceptance.
The LC1D80008F7 delivers the reliability and precision required for high-current resistive load switching in industrial control and power distribution systems.
