Description

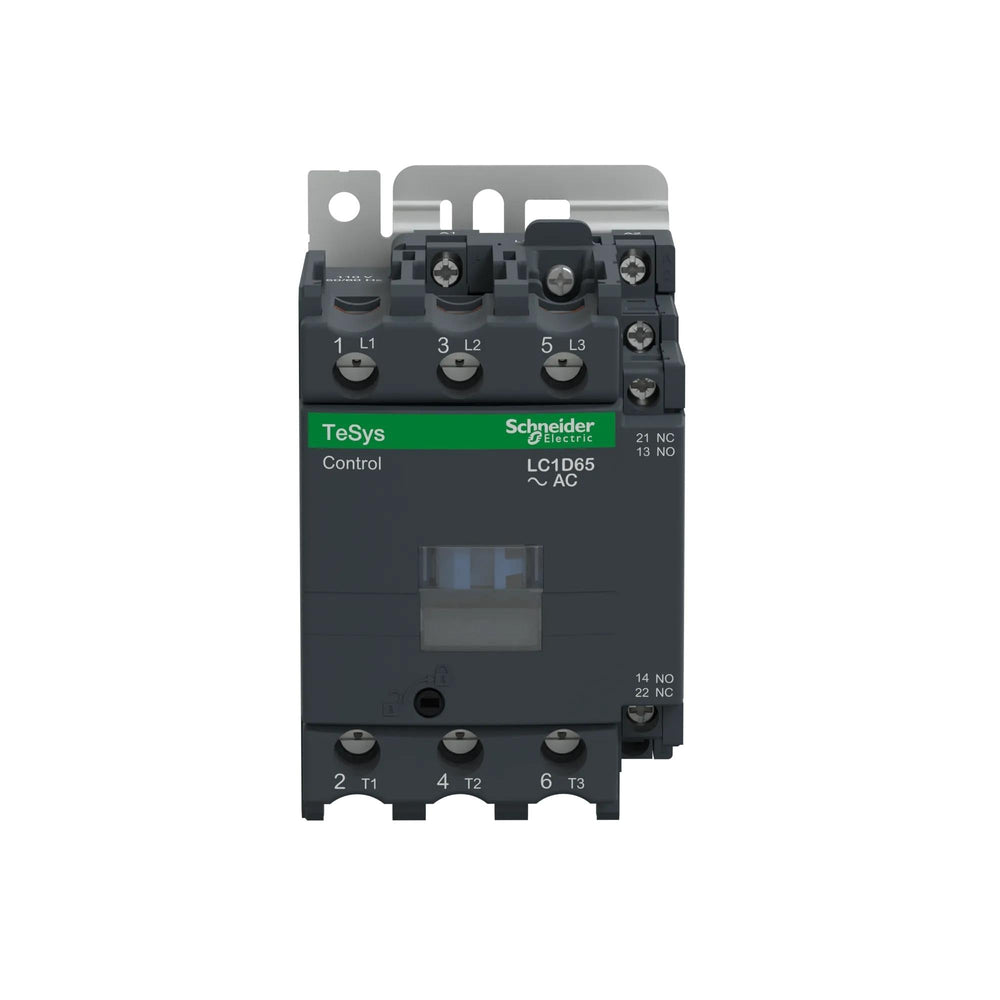

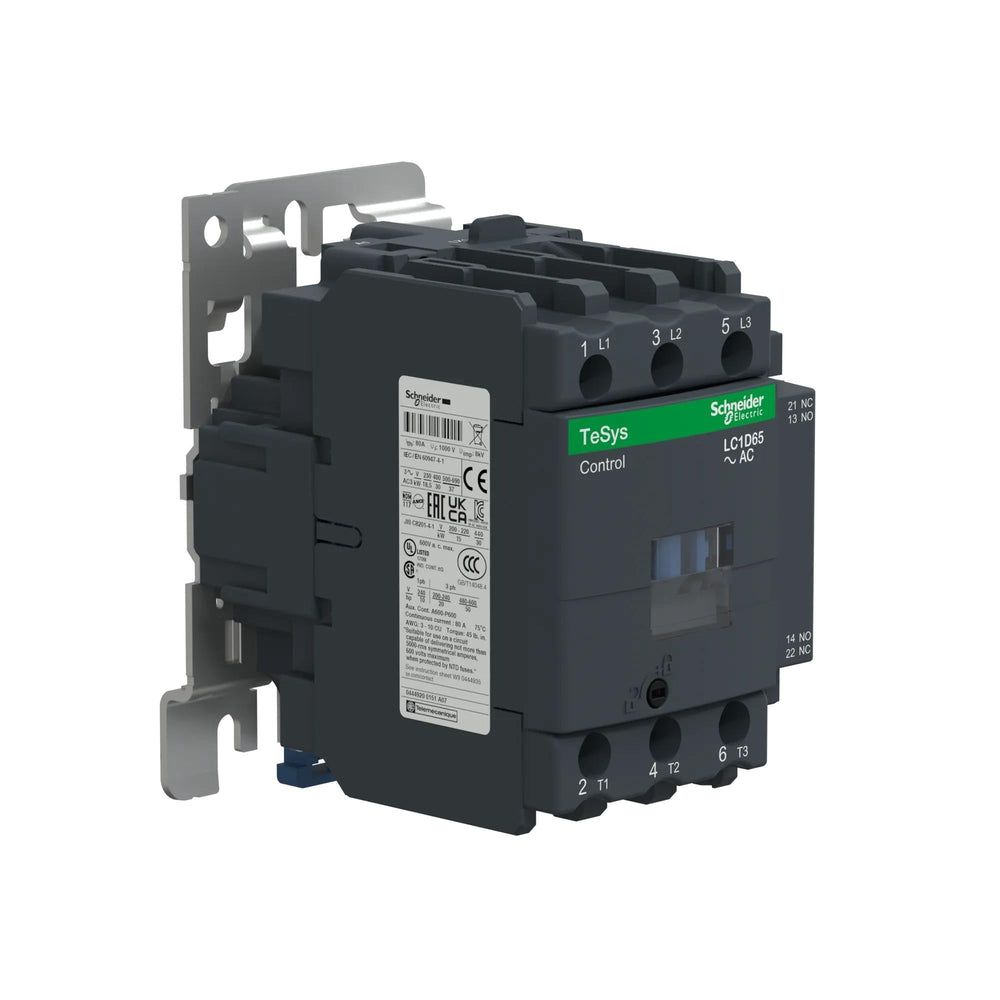

The Schneider Electric LC1D65G7 is a TeSys D contactor designed for reliable switching and control of three-phase motors in industrial applications. It is rated at 65A AC-3 and supports motor loads up to 50 HP at 480 VAC, using a 120V AC coil for standard control circuits. This contactor provides consistent performance for both motor and resistive load control systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Industrial Automation |
| Part Number |
LC1D65G7 |
| Subcategory |
IEC Contactors |
| Series |
TeSys D |
| Product Type |
Contactor |
| Poles |
3P (3 NO) |
| Rated Operational Current |
65 A (AC-3) |
| Rated Operational Voltage |
Up to 600 V AC |
| Control Voltage |
120 V AC 50/60 Hz |
| Auxiliary Contacts |
1 NO + 1 NC |
| Motor Power Rating |
Up to 50 HP at 480 VAC |
| Mounting Type |
Panel Mount |
| Terminal Type |
Screw clamp terminals |
| Interrupt Rating |
1000 A at 440 V (IEC) |
| Certifications |
IEC, UL, CSA, CCC |
| Dimensions |
Approx. 127 mm height |
| Weight |
1.44 kg |
Information About LC1D65G7
The LC1D65G7 is part of Schneider Electric’s TeSys D series, engineered for motor control and power switching in industrial and HVAC systems. It features a 3-pole (3NO) configuration with integrated auxiliary contacts (1NO + 1NC), allowing for control circuit signaling and interlocking. The unit is equipped with a 120V AC coil operating at 50/60 Hz, making it compatible with common control voltages in automation systems. Designed with screw clamp terminals and a compact structure, it supports easy installation and complies with IEC, UL, and CSA standards for global use.
Key Features:
- 65A AC-3 Rating: Supports motor control applications up to 65 amps for medium-duty industrial loads
- TeSys D Series Design: Optimized for motor control and switching in industrial and HVAC systems
- 3-Pole Configuration: Provides three normally open contacts for three-phase motor circuits
- 120V AC Coil: Compatible with standard 50/60 Hz control systems
- Integrated Auxiliary Contacts: Includes 1NO + 1NC contacts for control signaling and interlocking
- High Power Capability: Suitable for motors up to 50 HP at 480 VAC
- Screw Clamp Terminals: Ensures secure and reliable wiring connections
- Multi-Standard Certification: Meets IEC, UL, and CSA requirements for industrial compliance
The LC1D65G7 delivers the reliability and precision required for motor control and power switching in industrial automation systems.
