Description

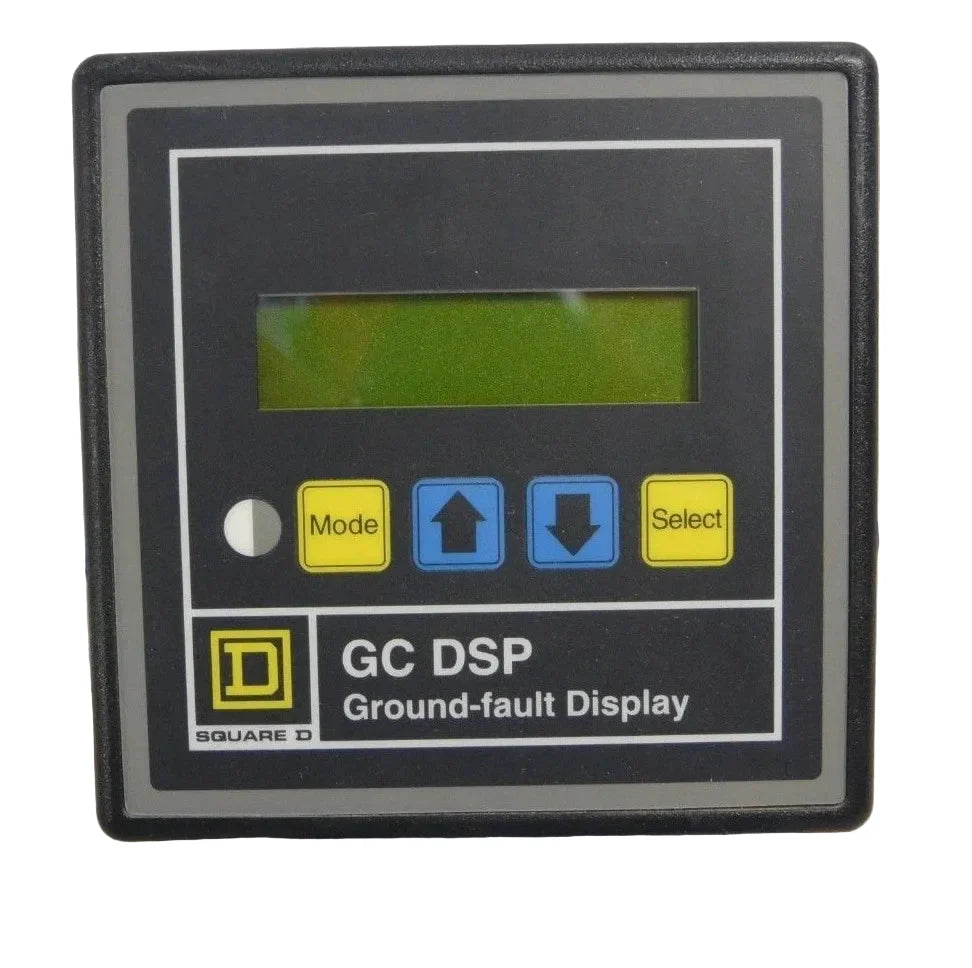

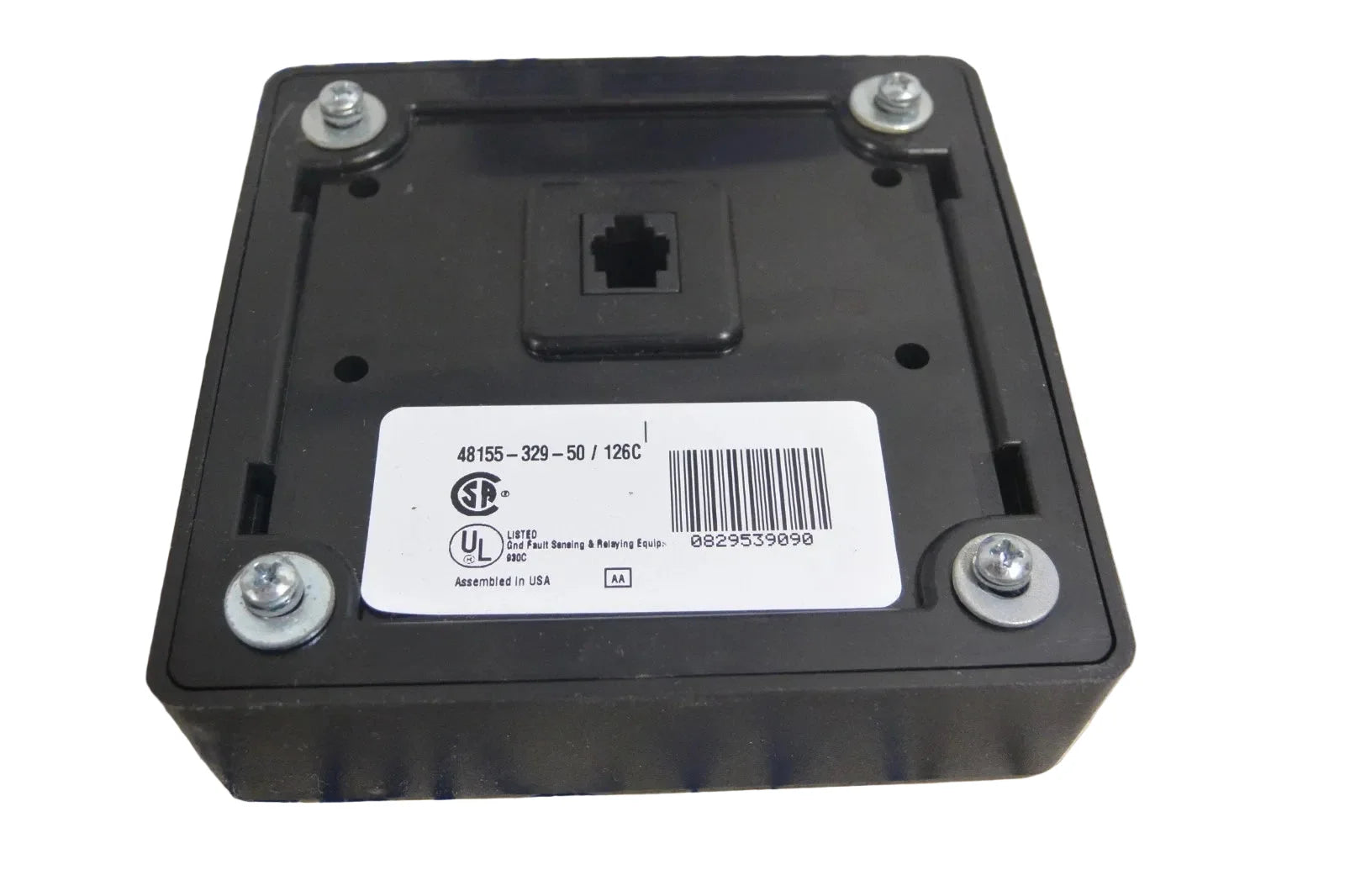

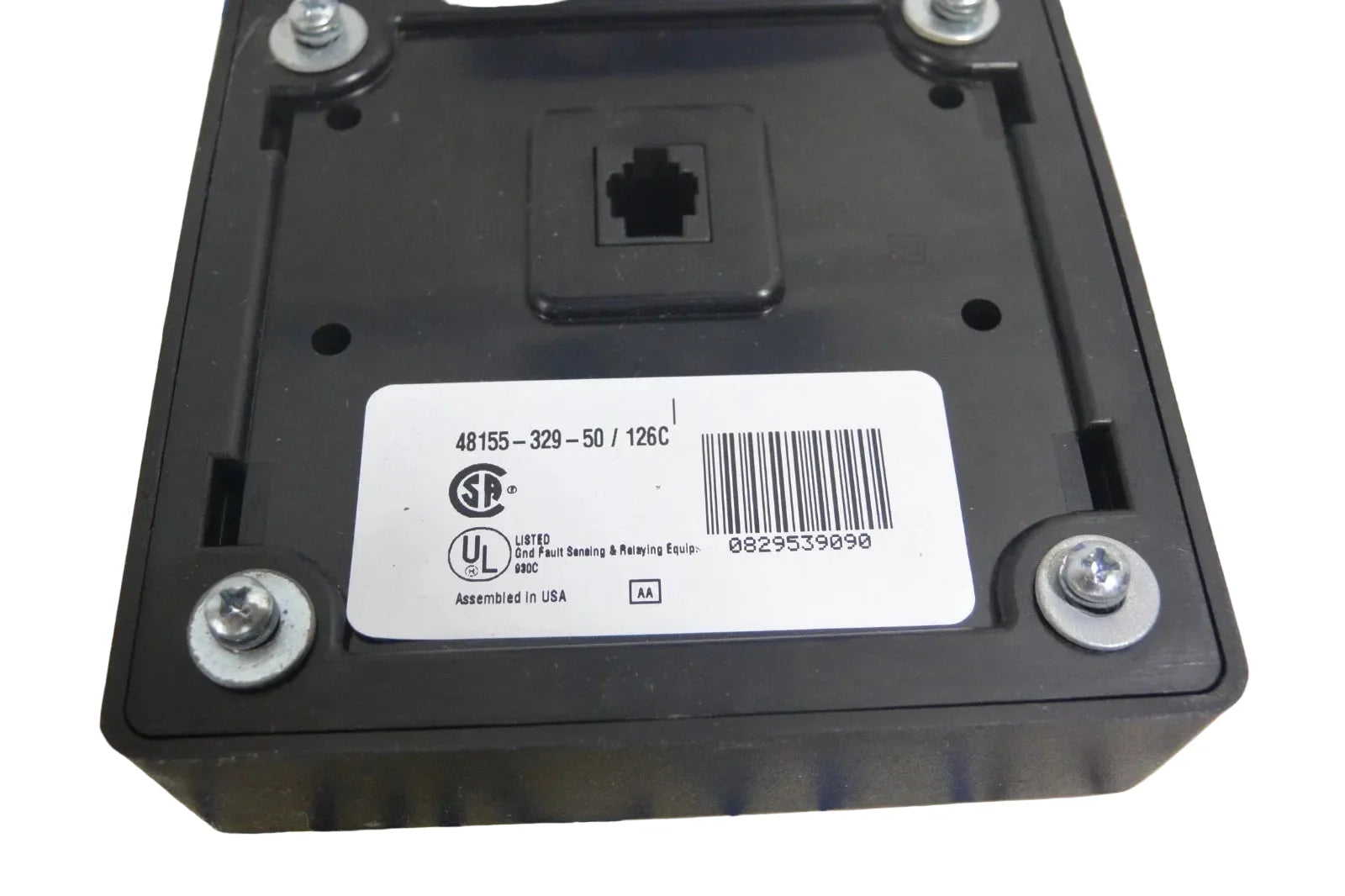

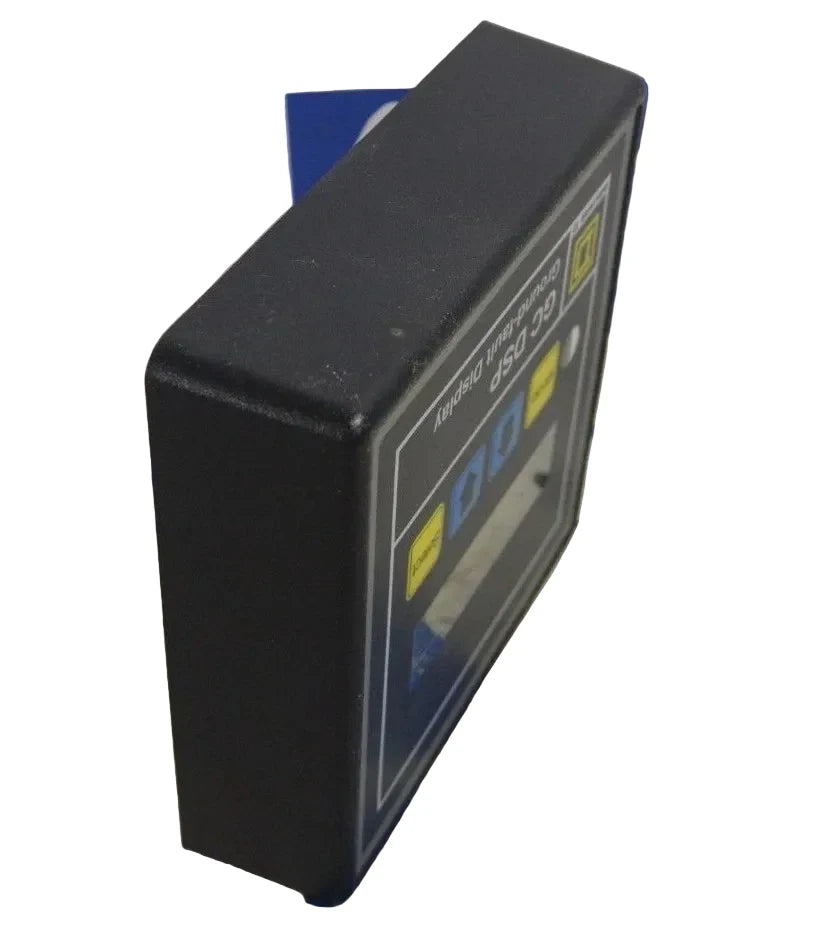

The Schneider Electric GC-DSP is a ground-fault relay display module designed to provide clear visual indication and monitoring of ground-fault protection systems. It enables operators to easily view system status, alarms, and fault conditions in industrial electrical installations. This display unit is typically used alongside compatible ground-fault relays to enhance system diagnostics and operational awareness.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Part Number |
GC-DSP |
| Category |
Controls & Indicators |
| Subcategory |
Indicator/Display |
| Product Type |
Ground-Fault Relay Display Module |
| Function |
Ground-fault status indication |
| Mounting Type |
Panel mount |
| Compatibility |
Ground-fault relay systems |
| Display Type |
Visual indicator/display |
| Application |
Electrical protection monitoring |
| Manufacturer Status |
Discontinued |
| Usage Environment |
Industrial and commercial panels |
| Weight |
0.70 lbs |
Information About GC-DSP
The GC-DSP is a display module developed by Schneider Electric for use with ground-fault protection systems, offering a dedicated interface for monitoring electrical fault conditions. It is designed to integrate with relay-based protection devices, allowing real-time visualization of fault events and system status. The unit provides a compact and reliable solution for panel-mounted applications in industrial and commercial environments. Although discontinued by the manufacturer, it remains a functional component in existing installations where reliable ground-fault indication is required.
Key Features:
- Ground-Fault Status Display: Provides clear visual indication of system conditions and fault events
- Relay Integration Capability: Designed to work with compatible ground-fault relay systems for enhanced monitoring
- Compact Panel Mount Design: Suitable for installation in control panels and electrical enclosures
- Improved System Visibility: Allows operators to quickly identify and respond to fault conditions
- Durable Industrial Construction: Built for reliable operation in demanding electrical environments
- Simple Interface Operation: Offers straightforward display functionality for ease of use
- Legacy System Compatibility: Ideal for maintaining and supporting existing Schneider Electric installations
The GC-DSP delivers the reliability and precision required for effective ground-fault monitoring and display in electrical protection systems.
