Description
The Schneider Electric CU600LF52K3 is a mechanical lug kit designed for secure electrical connections in PowerPact L circuit breakers. It supports high-current applications up to 600A and accommodates large copper conductors for reliable power distribution. This accessory ensures stable and efficient conductor termination in industrial and commercial electrical systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Part Number |
CU600LF52K3 |
| Category |
Electrical Products |
| Subcategory |
Circuit Breaker Accessory |
| Product Type |
Mechanical Lug Kit |
| Series |
PowerPact L |
| Rated Current |
400–600 A |
| Material |
Copper |
| Quantity per Set |
Set of 3 |
| Compatible Conductors |
3/0 AWG to 500 kcmil (copper) |
| Mounting Type |
Unit mount |
| Tightening Torque |
50 N·m (442.5 lbf·in) |
| Standards |
UL, CSA |
| Application |
Circuit breaker connection accessory |
| Country of Origin |
USA |
| Weight |
2.0 lbs |
Information About CU600LF52K3

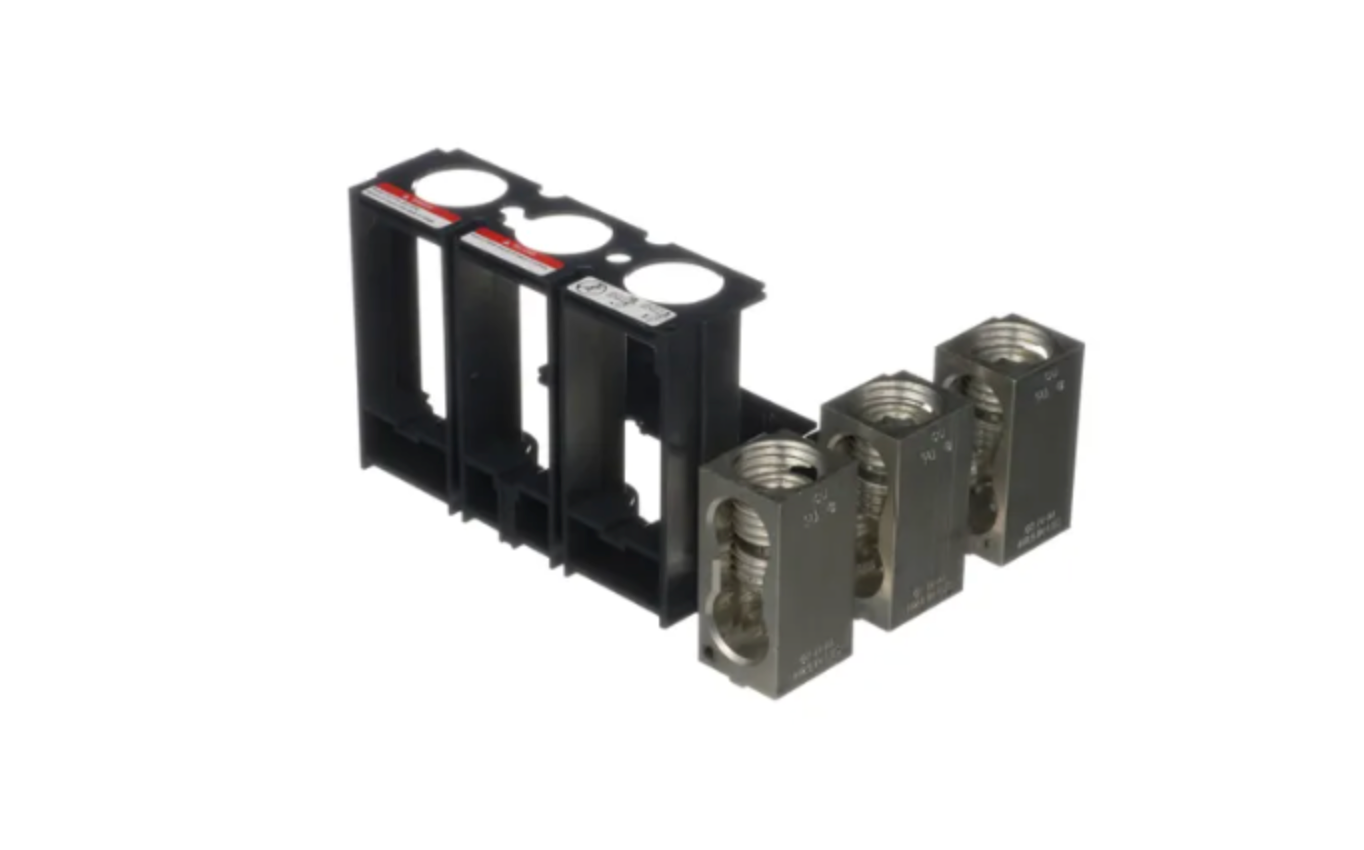

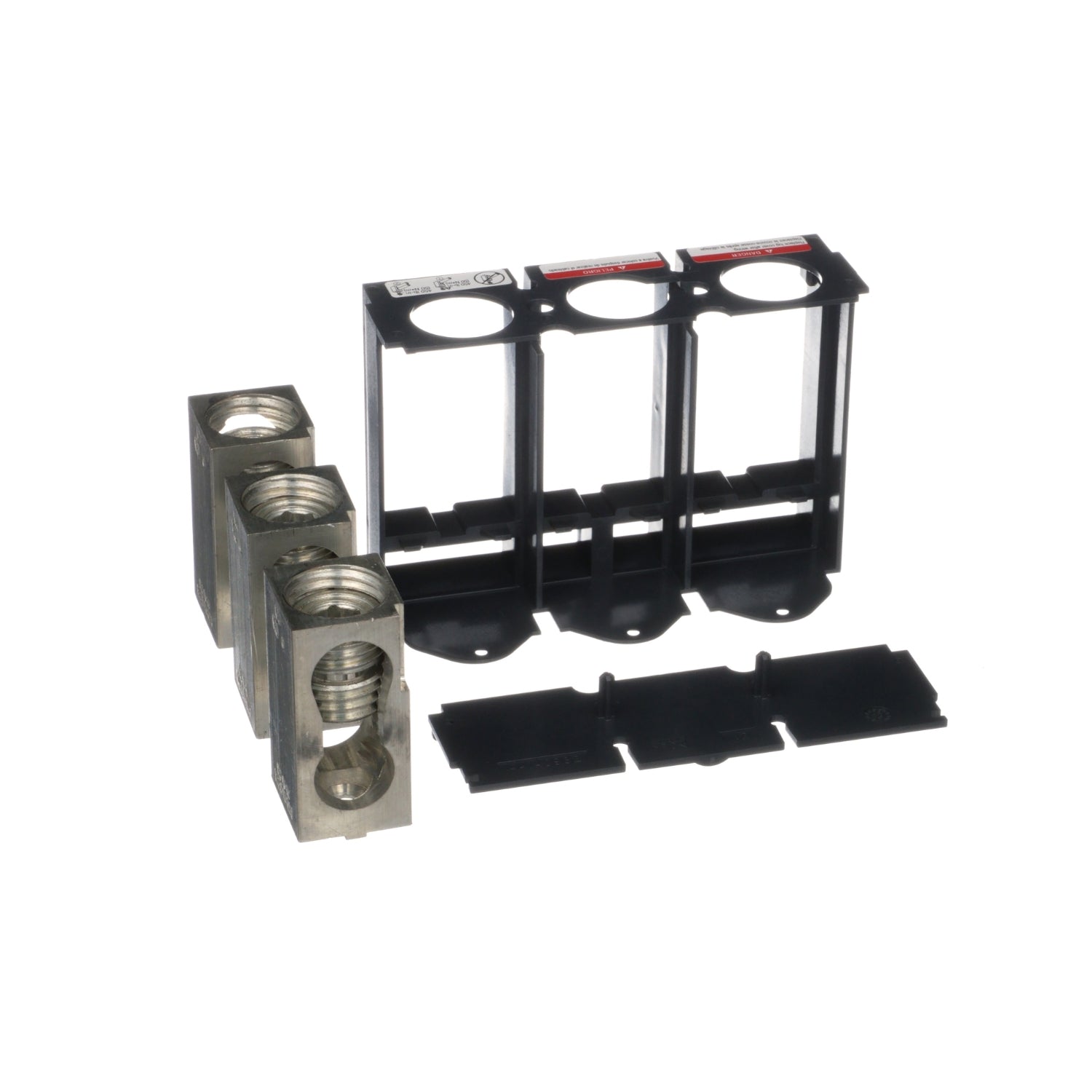

The CU600LF52K3 is a Schneider Electric connection accessory from the PowerPact L series, engineered for use with molded case circuit breakers. It consists of a set of three copper mechanical lugs designed to provide secure and efficient electrical connections for high-current circuits. The lugs accept a wide conductor range from 3/0 AWG to 500 kcmil, making them suitable for heavy-duty installations. Built to meet UL and CSA standards, this lug kit ensures dependable performance in demanding power distribution environments.
Key Features:
- PowerPact L Compatibility: Specifically designed for use with PowerPact L circuit breakers
- High Current Capacity: Supports applications rated from 400A to 600A
- Wide Conductor Range: Accepts copper conductors from 3/0 AWG to 500 kcmil
- Durable Copper Construction: Provides excellent conductivity and corrosion resistance
- Set of Three Lugs: Includes complete kit for multi-phase installations
- Secure Mechanical Connection: Ensures stable and reliable conductor termination
- Standards Compliance: Meets UL and CSA requirements for safety and performance
- Easy Installation: Designed for unit mounting on compatible breakers
The CU600LF52K3 delivers the reliability and precision required for secure high-current electrical connections in power distribution systems.
