Description

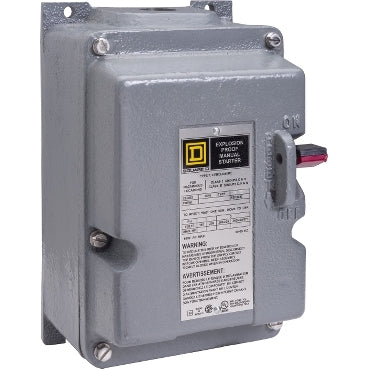

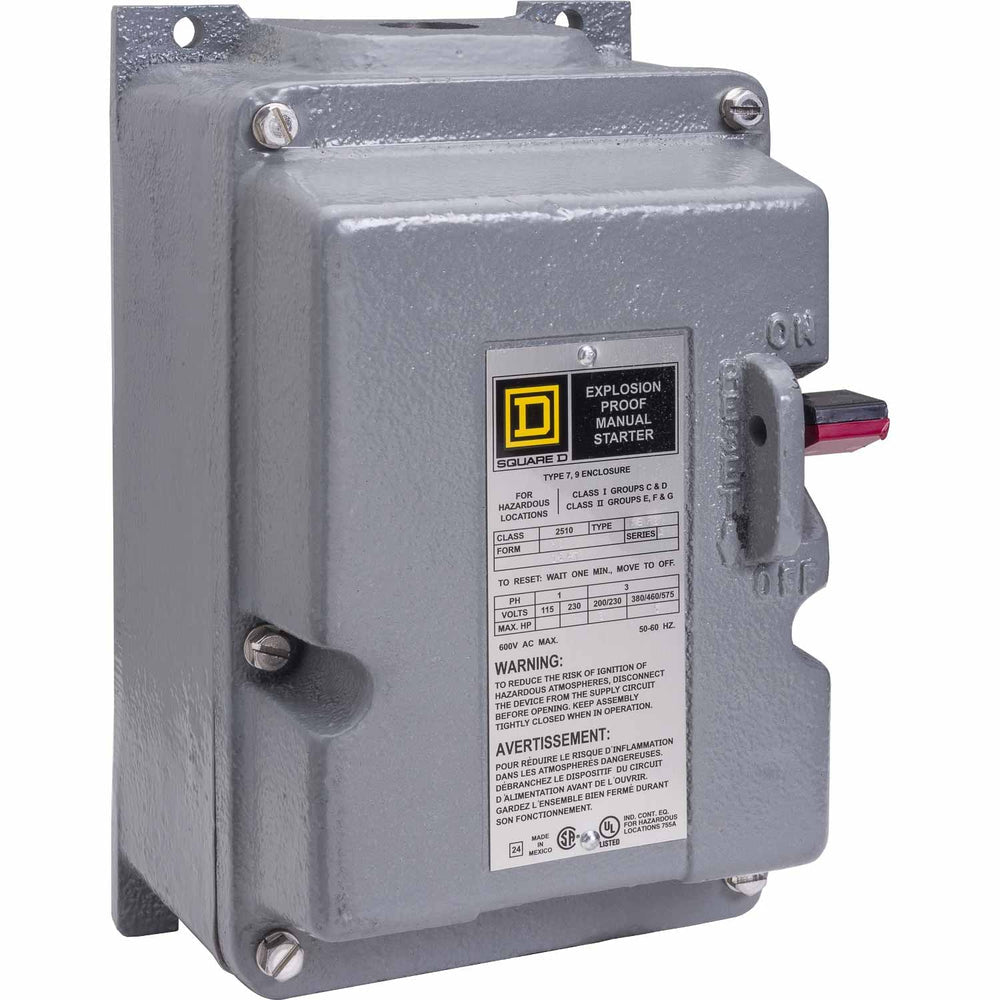

The Schneider Electric 2510MBR2 is a manual motor starter designed for direct control and overload protection of three-phase motors. It features an 18A rating with support for up to 600 VAC systems and is housed in a rugged NEMA 7/9 enclosure for hazardous environments. This unit provides dependable manual operation and thermal protection for industrial motor applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Motor Control |
| Part Number |
2510MBR2 |
| Subcategory |
Manual Motor Starters |
| Series |
Square D 2510 |
| Starter Type |
Non-Reversing Manual Starter |
| NEMA Size |
M-0 |
| Poles |
3 |
| Rated Current |
18 A |
| Rated Voltage |
600 VAC / 250 VDC |
| Horsepower Rating |
3 HP at 200–230 VAC; 5 HP at 380–575 VAC |
| Control Type |
Push-button |
| Overload Protection |
Melting alloy thermal units |
| Enclosure Type |
NEMA 7/9 Cast Iron |
| Connection Type |
Pressure wire clamp |
| Certifications |
UL, CSA, NEMA |

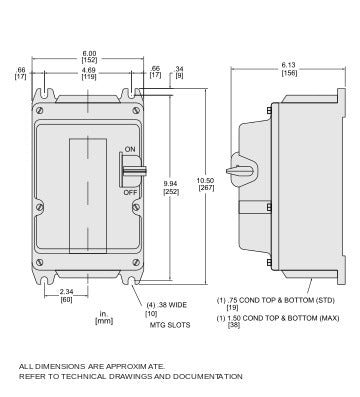

| Dimensions (H x W x D) |
10.5 x 6 x 6.13 in |
| Weight |
32.13 lb |
Information About 2510MBR2
The 2510MBR2 is part of Schneider Electric’s Square D 2510 series of manual starters, engineered for integral horsepower motor control. It incorporates a 3-pole configuration with melting alloy thermal overload units that detect and respond to excessive current conditions. Designed for use in hazardous locations, the cast iron NEMA 7/9 enclosure provides durability and environmental protection in demanding industrial settings. The device uses pressure wire clamp terminals and push-button control, making it suitable for standalone motor control applications without auxiliary contacts.
Key Features:
- Manual Motor Starter Design: Provides direct on/off control for three-phase motors with integrated overload protection
- 18A Current Rating: Supports motor loads up to 18 amps for industrial applications
- Thermal Overload Protection: Uses melting alloy thermal units to protect motors from overheating and overload conditions
- Hazardous Location Enclosure: Cast iron NEMA 7/9 enclosure suitable for Class I and II hazardous environments
- 3-Pole Configuration: Ensures full three-phase motor control capability
- Push-Button Operation: Includes built-in start/stop push-button control for manual operation
- High Voltage Capacity: Rated for up to 600 VAC and 250 VDC operation
- Pressure Clamp Terminals: Provides secure and reliable wiring connections
The 2510MBR2 delivers the reliability and precision required for manual motor control and overload protection in hazardous industrial environments.
