Description

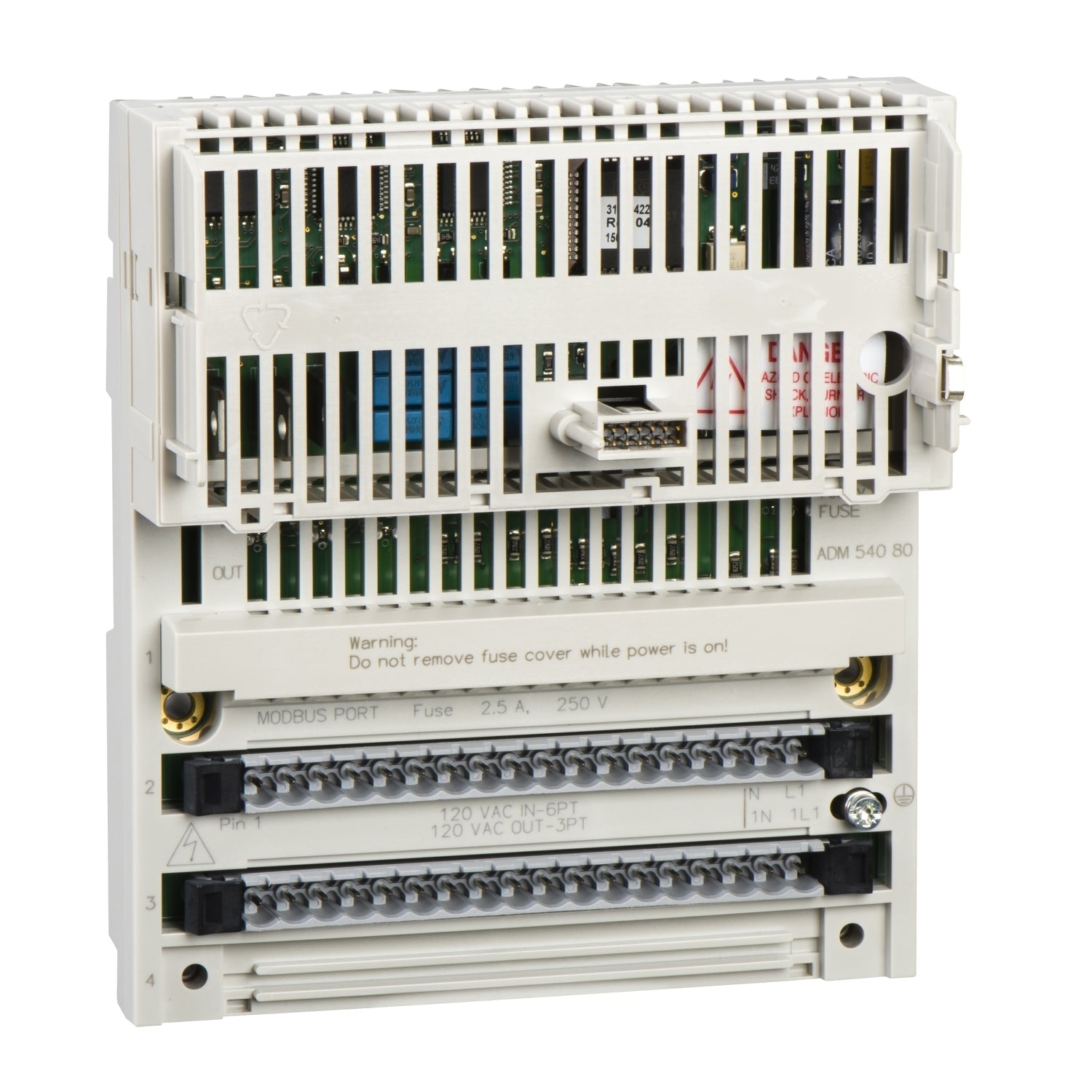

The Schneider Electric 170ADM54080 is a Modicon Momentum discrete I/O base module designed for distributed control systems using Modbus communication. It provides reliable integration of field devices with 6 AC inputs and 3 outputs for industrial automation tasks. This module is suited for infrastructure, material handling, and simple machine control applications requiring dependable I/O processing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Part Number |
170ADM54080 |
| Category |
Panel Accessories |
| Subcategory |
Panel Accessory |
| Product Type |
Modbus I/O Base Module |
| Series |
Modicon Momentum |
| Discrete Inputs |
6 (120V AC) |
| Discrete Outputs |
3 |
| Communication Protocol |
Modbus RTU / ASCII |
| Communication Interface |
RS-485 |
| Transmission Rate |
9600 / 19200 bit/s |
| Input Voltage |
120 V AC |
| Output Voltage |
120 V AC |
| Isolation Voltage |
1250 V RMS |
| Response Time |
< 12.5 ms |
| Current Consumption |
125 mA |
| Mounting Type |
Wall Mount |
| Operating Temperature |
0°C to 60°C |
| Certifications |
CE, UL, CSA |
| Status |
Discontinued by Manufacturer |
| Weight |
0.53 lbs |
Information About 170ADM54080
The 170ADM54080 is a Schneider Electric Modicon Momentum I/O base module that combines discrete input and output functionality within a compact, modular platform. It is engineered for distributed automation architectures, allowing seamless communication via Modbus over RS-485 networks. The module supports 120V AC input signals and output control, making it compatible with a wide range of industrial field devices. With built-in electrical isolation and robust construction, it ensures reliable operation in demanding industrial environments even though it has been discontinued by the manufacturer.
Key Features:
- Modicon Momentum Platform: Modular I/O system designed for flexible distributed automation architectures
- Discrete I/O Configuration: Includes 6 AC inputs and 3 outputs for control and monitoring applications
- Modbus Communication: Supports RS-485 communication with RTU and ASCII protocols
- 120V AC Operation: Compatible with standard industrial AC control systems
- Electrical Isolation: Provides 1250V RMS isolation between channels, groups, and bus for protection
- Fast Response Time: Ensures efficient signal processing with response times under 12.5 ms
- Compact Wall-Mount Design: Space-saving form factor suitable for panel or wall installation
The 170ADM54080 delivers the reliability and precision required for distributed I/O control in industrial automation and process applications.
