Overview

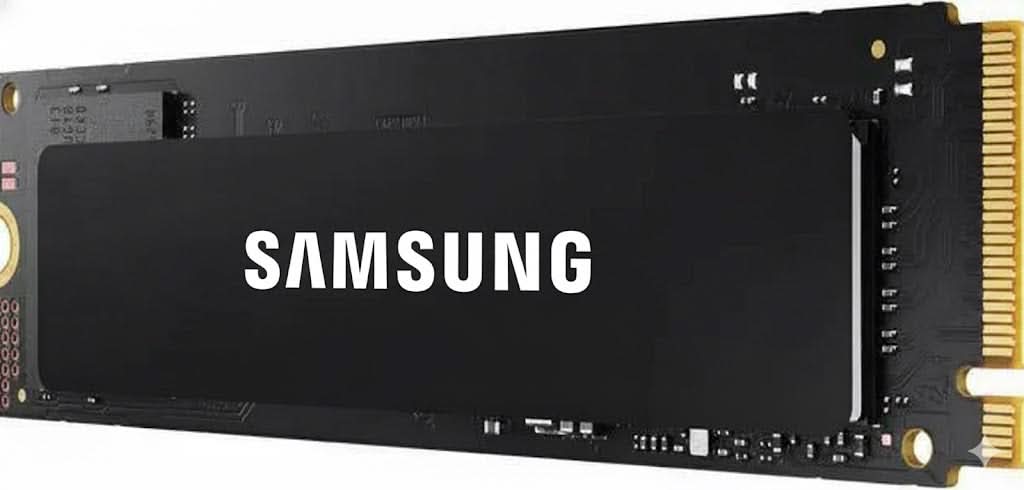

Samsung MZVL8512HFLU-00B07 PM9C1b 512 GB PCI M.2 Express Gen.4 x4 512 Bytes SSD
Specifications
Model Number:MZVL8512HFLU-00B07
Brand:Samsung
Alt Part Number(s):MZVL8512HFLU-00B07
Product Type: Solid State Drive
Technical Description
Brand:Samsung
Model:MZVL8512HFLU-00B07
Capacity: 512GB
Form Factor: M.2
Interface: PCIe Gen4 x4
NVMe Compliance: NVM Express Specification Rev. 2.0 (Mandatory Only)
Bytes per Sector: 512 Bytes
Security: TCG OPAL (v2.01) Compliant for SED
RoHS Compliance: RoHS / Halogen Free
Sequential Read (128KB): Up to 7,000 MB/s
Sequential Write (128KB): Up to 6,600 MB/s
Random Read (4KB): Up to 800K IOPS
Random Write (4KB): Up to 1,300K IOPS
Active Read (Typ, 3.3V): 4.8 W
Active Write (Typ, 3.3V): 4.3 W
Idle (Typ.): 50 mW
Sleep (Typ.): 5 mW
Supply Voltage: 3.3V ± 5%
Voltage Ripple/Noise (Max.): 200mV p-p
UBER: < 1 sector per 10^15 bits read
MTBF: 1.5 million hours
Operating Temperature: 0°C to 70°C
Non-operating Temperature: -40°C to 85°C
Non-operating Humidity: 5% ~ 95% (non-condensing)
Non-operating Shock: 1,500 G (0.5ms, half sine)
Non-operating Vibration: 20 G (20Hz ~ 2,000Hz, sinusoidal)
PCIe Compliance:
• PCIe Gen.4 16Gb/s Interface, up to 4 Lanes
• PCI Express Base Specification Rev. 4.0
• PCI Express M.2 Specification Rev. 4.0
Power Saving Features:
• APST Support
• L1.2 Mode Support
• Admin NVM Command Set Support
*
