Samsung 3.84TB SATA 6G RI (with SC SFF Tray) 2.5" SSD PM863a MZ-7LM3T8N MZ7LM3T8HMLP for HPE ProLiant Server
Other Related Part Numbers: MZ-7LM3T8N, MZ7LM3T8HMLP, MZ7LM3T8HMLP-000K0, MZ7LM3T8HMLP-00005
The Samsung PM863a (MZ7LM3T8HMLP / MZ-7LM3T8N) is a 3.84TB enterprise-grade SATA SSD designed for read-intensive workloads in HPE ProLiant environments. Built with Samsung V-NAND technology, it delivers reliable performance, strong endurance, and enterprise-class data protection. This listing includes an HPE SmartDrive (SC) 2.5" SFF tray for direct installation in compatible ProLiant servers.
Core Specifications
- Capacity: 3.84TB (3840GB)
- Form Factor: 2.5-inch SFF (7mm height)
- Interface: SATA III 6Gb/s
- NAND Type: Samsung V-NAND TLC
- Controller: Samsung Mercury
- Workload Type: Read Intensive (RI)
Performance
- Sequential Read: Up to 520–540 MB/s
- Sequential Write: Up to 480 MB/s
- Random Read (4KB): Up to 97,000 IOPS
- Random Write (4KB): Up to 24,000 IOPS
- Latency: ~130 µs (Read) / ~30 µs (Write)
Reliability & Endurance
- Endurance (TBW): ~5,466 TB
- Endurance (DWPD): ~1.3 DWPD
- MTBF: 2,000,000 hours
- Data Protection: Power Loss Protection (PLP) & End-to-End Data Protection
- Encryption: AES 256-bit hardware encryption
Power & Environmental
- Active Power: ~3W (Read) / ~4W (Write)
- Operating Temperature: 0°C to 70°C
- Shock Resistance: 1500G @ 0.5ms
Compatible HPE ProLiant Servers
DL Series (Rackmount)
Gen11: DL110, DL320, DL325, DL345, DL360, DL365, DL380, DL380a, DL385, DL560
Gen10 / Gen10 Plus: DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL388, DL560, DL580
Gen9: DL120, DL160, DL180, DL360, DL380, DL560, DL580
Gen8: DL160, DL320e, DL360e, DL360p, DL380e, DL380p, DL385p, DL560
ML Series (Tower)
Gen11: ML30, ML110, ML350
Gen10 / Gen10 Plus: ML30, ML110, ML350
Gen9: ML10, ML110, ML150, ML350
Other HPE Platforms
- MicroServer: Gen10, Gen10 Plus, Gen11
- Apollo Systems: Apollo 2000 (Gen9/Gen10), Apollo 4200, Apollo 4500
- Synergy / BladeSystem: Synergy 480, Synergy 660, BL460c Gen9 / Gen10
Drive Tray / Carrier Compatibility (7mm SATA SSD)

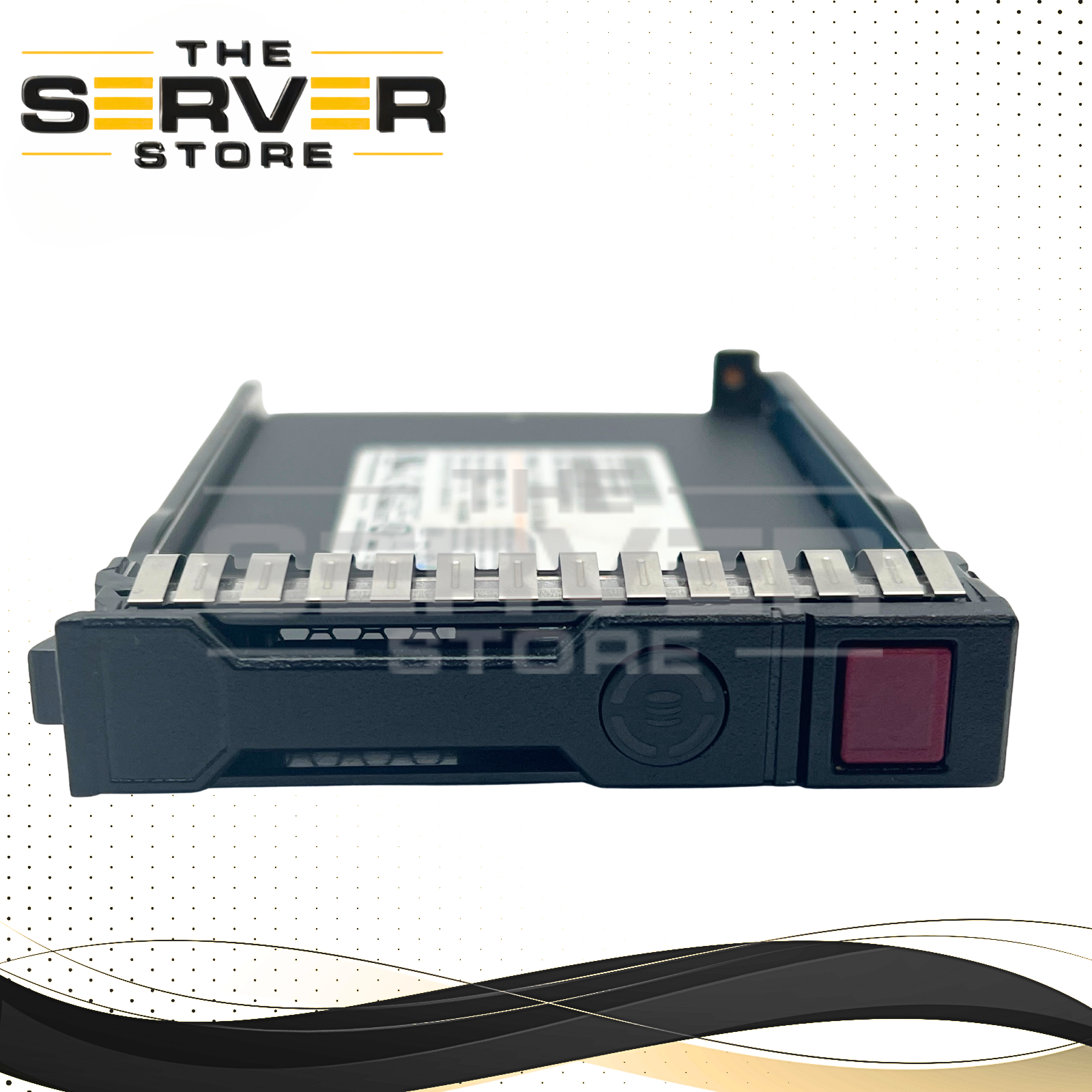

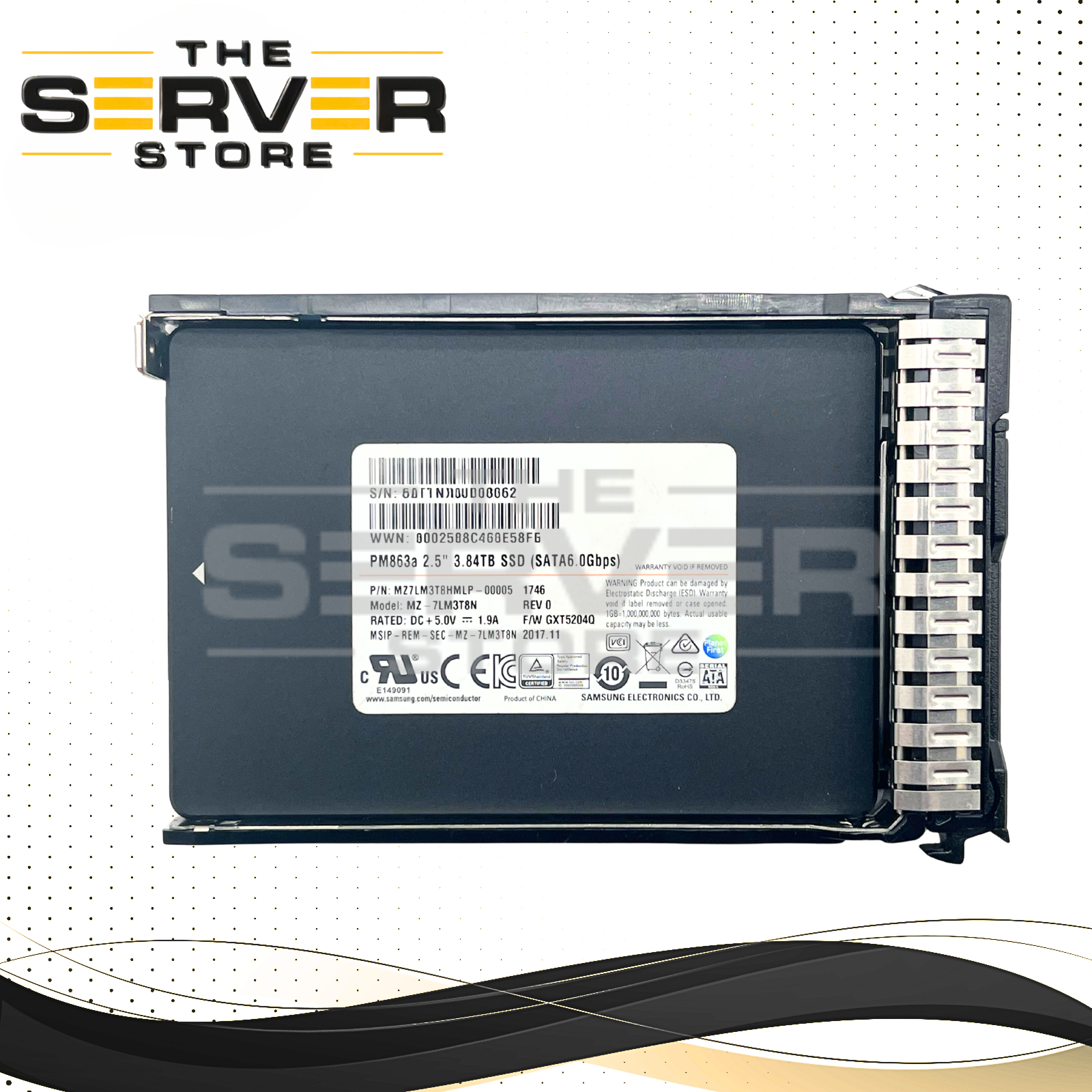

This SSD includes an HPE SmartDrive (SC) 2.5″ SFF hot-swap tray for direct installation in Gen8, Gen9, Gen10, and Gen11 ProLiant servers. It is designed for seamless integration into HPE hot-plug drive bays.
RAID / Controller Compatibility
- HPE Smart Array Controllers (P440, P408i, P816, etc.)
- Fully compatible with SATA controllers and RAID environments
Important Compatibility Notes
- Requires HPE SmartDrive (SC) tray (included) for hot-swap use
- SATA interface (not SAS)
- Fits both 7mm and 15mm 2.5" drive bays
- May show as “non-HPE” or “third-party” in iLO if not HPE firmware, but fully functional
- Ideal for virtualization, cloud storage, and read-intensive workloads
The Samsung PM863a 3.84TB SSD with HPE SmartDrive tray is a dependable enterprise storage solution, offering strong performance and broad compatibility across HPE ProLiant server platforms.
