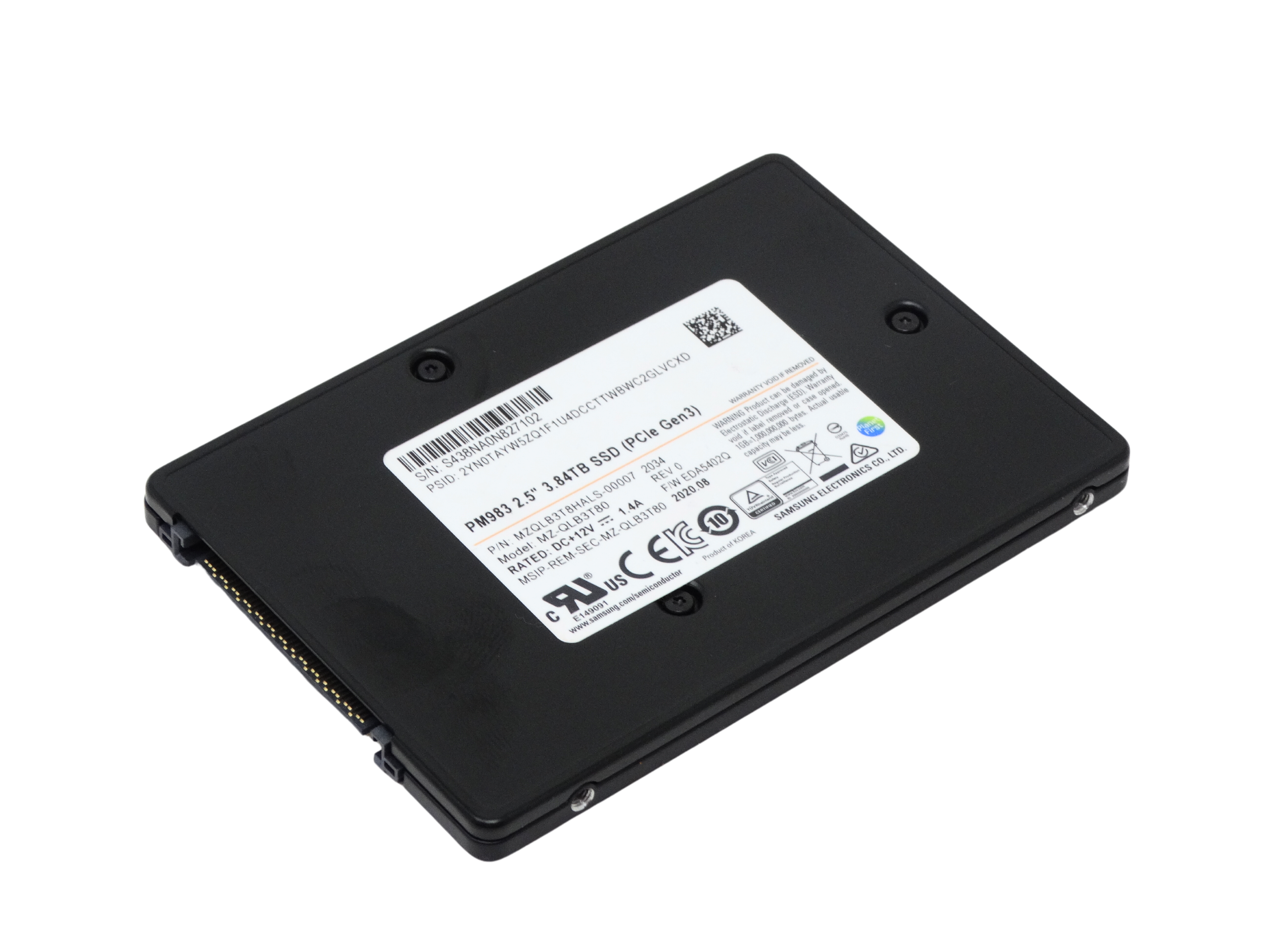

Samsung 3.84TB U.2 NVMe PCIe Gen 3.0 x4 SFF 2.5" SSD – PM983 Series (MZ-QLB3T80 / MZQLB3T8HALS)

The Samsung PM983 3.84TB NVMe SSD is an enterprise-class solid-state drive primarily positioned as Read-Intensive (RI), though it is often classified as Mixed-Use (MU) by resellers due to its higher endurance rating. Built on PCIe Gen 3.0 x4 NVMe architecture and housed in a U.2 2.5-inch SFF form factor, the PM983 delivers high throughput, strong random I/O performance, and enterprise-grade reliability for data center workloads.

Core Technical Specifications

• Capacity: 3.84TB

• Workload Class: Read-Intensive (RI) / Mixed-Use (MU)

• Interface: PCIe Gen 3.0 x4 NVMe

• Form Factor: U.2 (2.5" SFF, 7mm height)

• NAND Type: Samsung V-NAND (3-bit MLC / TLC)

Performance

• Sequential Read Speed: Up to 3,200 MB/s

• Sequential Write Speed: Up to 2,000 MB/s

• Random Read (4KB): Up to 540,000 IOPS

• Random Write (4KB): Up to 55,000 IOPS

Endurance & Reliability

• Endurance Rating: 1.3 DWPD (3-year rating)

• Total Bytes Written (TBW): 5,466 TB

• MTBF: 2,000,000 hours

Power & Efficiency

• Active Power Consumption: Up to 10.6 W

• Idle Power Consumption: 3.6 – 4.0 W

Security & Data Protection

• AES 256-bit hardware encryption

• Enterprise-grade Power Loss Protection (PLP)

• End-to-end data path protection

• Designed for continuous 24/7 data center operation

Workload Classification Notes

• Official Positioning: Samsung generally markets the PM983 series for read-intensive and mixed data center workloads

• Endurance Context: The 1.3 DWPD rating exceeds typical entry-level RI drives, which is why many vendors label this model as Mixed-Use (MU)

Part Number Identification

• Samsung Part Numbers:

  • MZ-QLB3T80

  • MZQLB3T8HALS-00007

  • MZQLB3T8HALS
