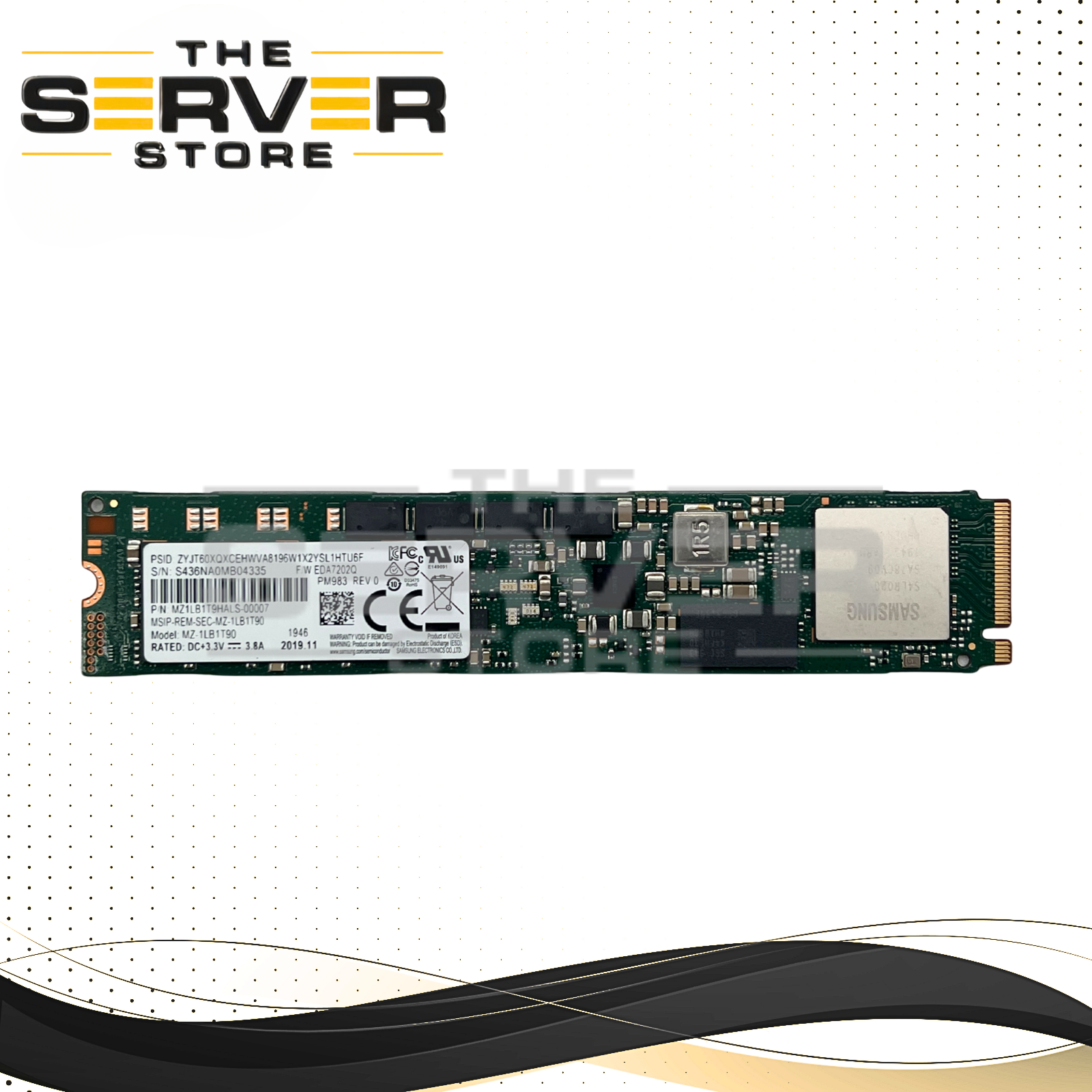

The Samsung 1.92TB 22110 M.2 PCIe Gen3 x4 SSD PM983 Series (MZ-1LB1T90 / MZ1LB1T9HALS) is an enterprise-class NVMe solid state drive engineered for data center and server workloads requiring high performance, reliability, and consistent endurance.

Built on Samsung’s proven TLC V-NAND technology, the PM983 delivers fast throughput, low latency, and advanced data protection features, making it ideal for virtualization, cloud infrastructure, and high-density storage deployments.

Key Specifications

• Product Series: Samsung PM983

• Model Numbers: MZ-1LB1T90, MZ1LB1T9HALS

• Capacity: 1.92TB

• Form Factor: M.2 22110 (22 × 110 mm)

• Interface: PCIe Gen 3.0 x4, NVMe 1.2b

• NAND Type: TLC V-NAND

Performance

• Sequential Read Speed: Up to 3,000 MB/s

• Sequential Write Speed: Up to 1,400 MB/s

• Random Read (4KB): Up to 480,000 IOPS

• Random Write (4KB): Up to 42,000 IOPS

Endurance & Reliability

• Endurance Rating: 1.3 DWPD (Drive Writes Per Day)

• Power Consumption:

  • Max Active Power (RMS): 10.6 W

• Operating Temperature: 0°C to 70°C

• Warranty: Limited 3-Year Warranty

Features & Security

• Power-Loss Protection (PLP): Enhanced PLP with end-to-end data protection for enterprise reliability

• Encryption: Hardware-based AES-XTS 256-bit encryption, TCG Opal compliant

• Drive Monitoring: Supports SSD Enhanced S.M.A.R.T. feature set

• Enterprise Optimization: Designed for sustained workloads and predictable performance

Physical Specifications

• Dimensions (W × D × H): 30.50 × 110.00 × 4.38 mm

• Weight: Up to 22 g

The Samsung PM983 1.92TB M.2 NVMe SSD (MZ1LB1T9HALS) is a dependable storage solution for enterprise servers and data centers, offering strong endurance, robust security, and consistent PCIe Gen3 performance in a compact M.2 22110 form factor—perfect for high-density and performance-driven environments.
