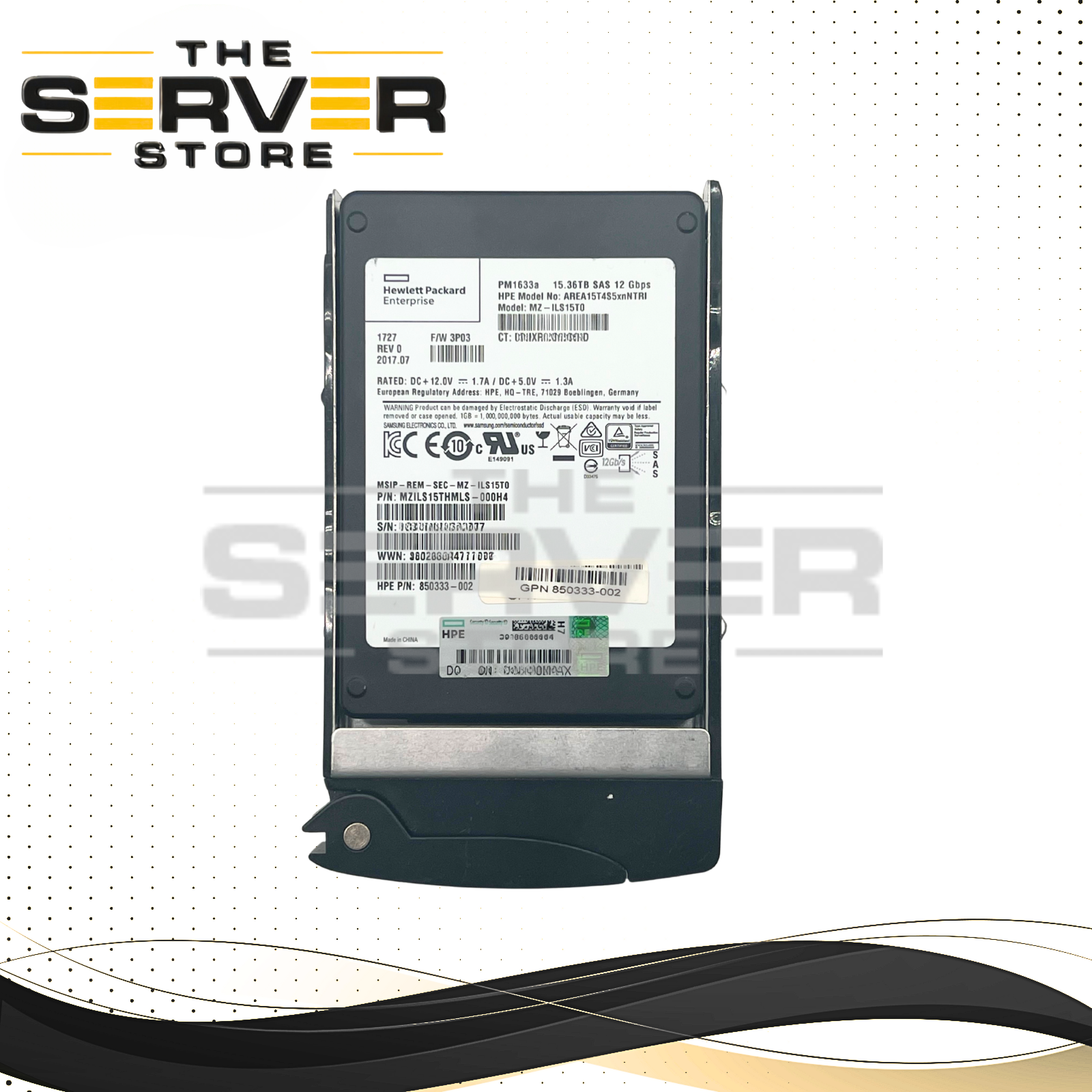

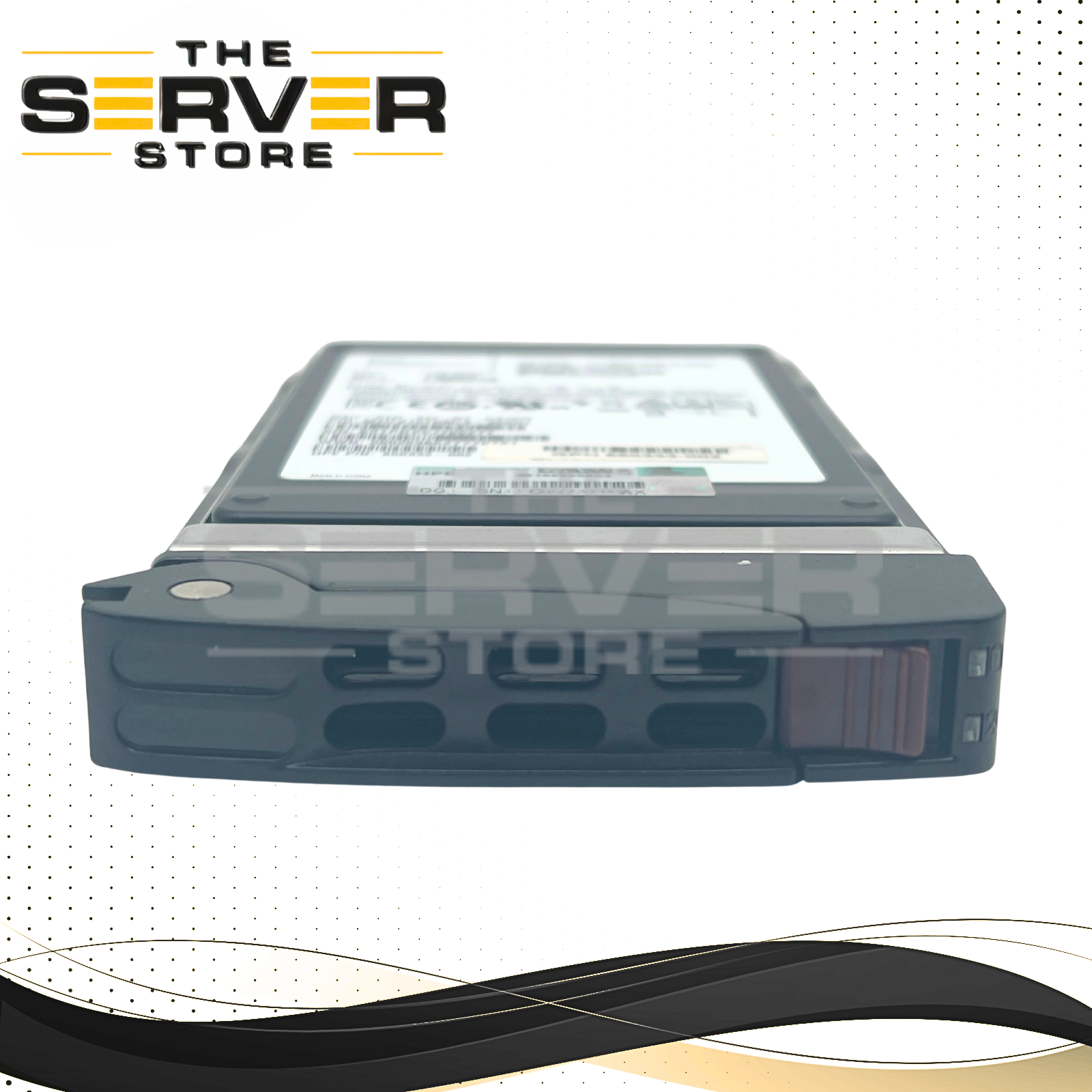

Samsung 15.36TB SAS 12Gbps RI 2.5" 15mm SSD PM1633a Series MZ-ILS15T0 for Supermicro Server

Part Numbers: MZILS15THMLS-000H4, MZ-ILS15T0,

The Samsung PM1633a 15.36TB Enterprise SSD is a high-capacity, 12Gb/s SAS (SAS-3) solid-state drive designed for read-intensive workloads, enterprise servers, cloud infrastructure, and big data environments.

---

Key Specifications

• Capacity: 15.36TB
• Interface: SAS-3 Dual-Port (12Gbps, backward compatible)
• Form Factor: 2.5" SFF (15mm height)
• NAND Type: Samsung 3D V-NAND TLC
• Sequential Read/Write: Up to 1,250 MB/s
• Random Read/Write (4KB): Up to 200K / 35K IOPS

---

Reliability & Endurance

• Endurance: 1.0 DWPD (5 years)
• MTBF: 2,000,000 hours
• UBER: 1 per 10^17 bits read
• Power-Loss Protection (PLP): Yes
• Encryption: TCG Enterprise

---

Power

• Active: ~11W
• Idle: ~4.5W

---

Server & Storage Compatibility (One-Line Format)

Supermicro Server:



• X10 Generation: 1028U-TNR4T+, 1028U-TN10RT+, 2028U-TNR4T+, 2028U-E1CNR4T+
• X11 Generation: 1029U-TN10RT, 1029U-E1CR4T, 2029U-E1CR4T, 2029U-E1CR2T
• X12 Generation: 120U-TNR, 220U-MTNR
• X13 Generation: 121U-TN10R, 221U-TN24R
• other Supermicro Compatibility: BigTwin (2029BT-HNR, 2129BT-HNR, 220BT-HNTR, 221BT-HNTR); TwinPro (2028TP-HC0FR, 2028TP-HC1R, 2029TP-HC0R, 2029TP-HC1R); SSG Series (SSG-1029P-NES24R, SSG-2029P-E1CR24H, SSG-2029P-E1CR24L, SSG-220P-E1CR24H, SSG-221P-E1CR24H, SSG-6029P-E1CR12H); Mainstream/CloudDC (5019C-WR, 1029P-WTR, 2029P-WTR, 120P-WTR, 220P-WTR, 110P-MTR, 210P-MTR, 111P-WR, 211P-WR); SuperBlade (SBI-4129P-C2N, SBI-6119P-C2N, SBI-7428R-C3/C3N)**

---

Important Notes

• Requires SAS (not SATA) backplane
• 15mm height (check server bay compatibility)
• For Dell/Lenovo systems, proper caddy/tray may be required
