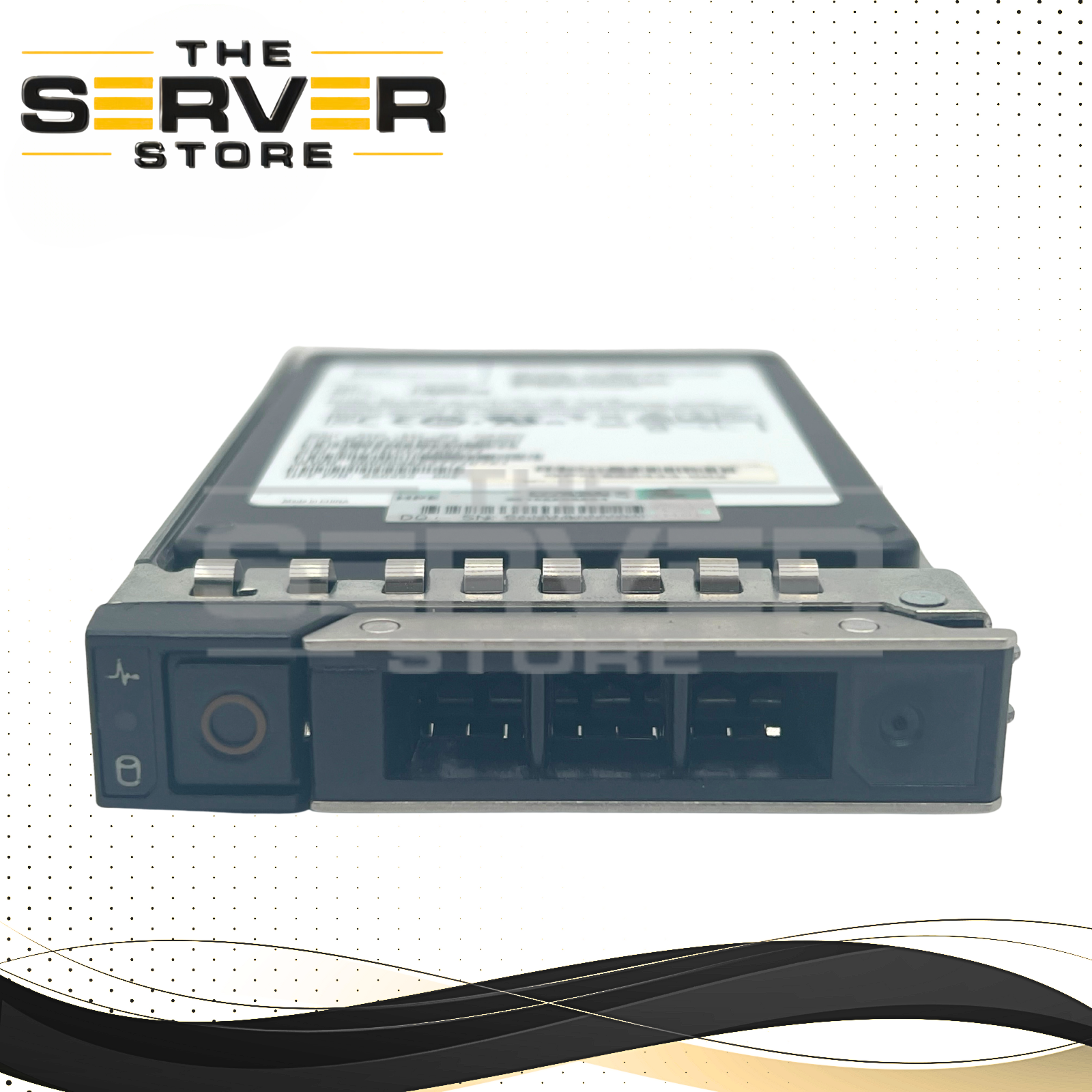

Samsung 15.36TB SAS 12Gbps RI 2.5" 15mm SSD PM1633a Series MZ-ILS15T0  for Dell PowerEdge G15th Tray

Part Numbers: MZILS15THMLS-000H4, MZ-ILS15T0,

The Samsung PM1633a 15.36TB Enterprise SSD is a high-capacity, 12Gb/s SAS (SAS-3) solid-state drive designed for read-intensive workloads, enterprise servers, cloud infrastructure, and big data environments.

---

Key Specifications

• Capacity: 15.36TB
• Interface: SAS-3 Dual-Port (12Gbps, backward compatible)
• Form Factor: 2.5" SFF (15mm height)
• NAND Type: Samsung 3D V-NAND TLC
• Sequential Read/Write: Up to 1,250 MB/s
• Random Read/Write (4KB): Up to 200K / 35K IOPS

---

Reliability & Endurance

• Endurance: 1.0 DWPD (5 years)
• MTBF: 2,000,000 hours
• UBER: 1 per 10^17 bits read
• Power-Loss Protection (PLP): Yes
• Encryption: TCG Enterprise

---

Power

• Active: ~11W
• Idle: ~4.5W

---

Server & Storage Compatibility

Dell PowerEdge:

Gen14 (14G): R340, R440, R540, R640, R740, R740xd, R740xd2, R840, R940, R940xa; R6415, R7415, R7425; T440, T640; C6420, C6425, MX740c

Gen15 (15G): R450, R550, R650, R750; R650xs, R750xs, R750xa; R6515, R6525, R7515, R7525; T350, T550; XE8545, C6520

Gen16 (16G): R660, R760; R660xs, R760xs, R760xa, R860, R960; R6615, R6625, R7615, R7625; T360, T560; HS5610, HS5620, C6620

Gen17 (17G): R470, R570, R670, R770; R6715, R6725, R7715, R7725, R7725xd

---

Important Notes

• Requires SAS (not SATA) backplane
• 15mm height (check server bay compatibility)
• For Dell/Lenovo systems, proper caddy/tray may be required
