Description

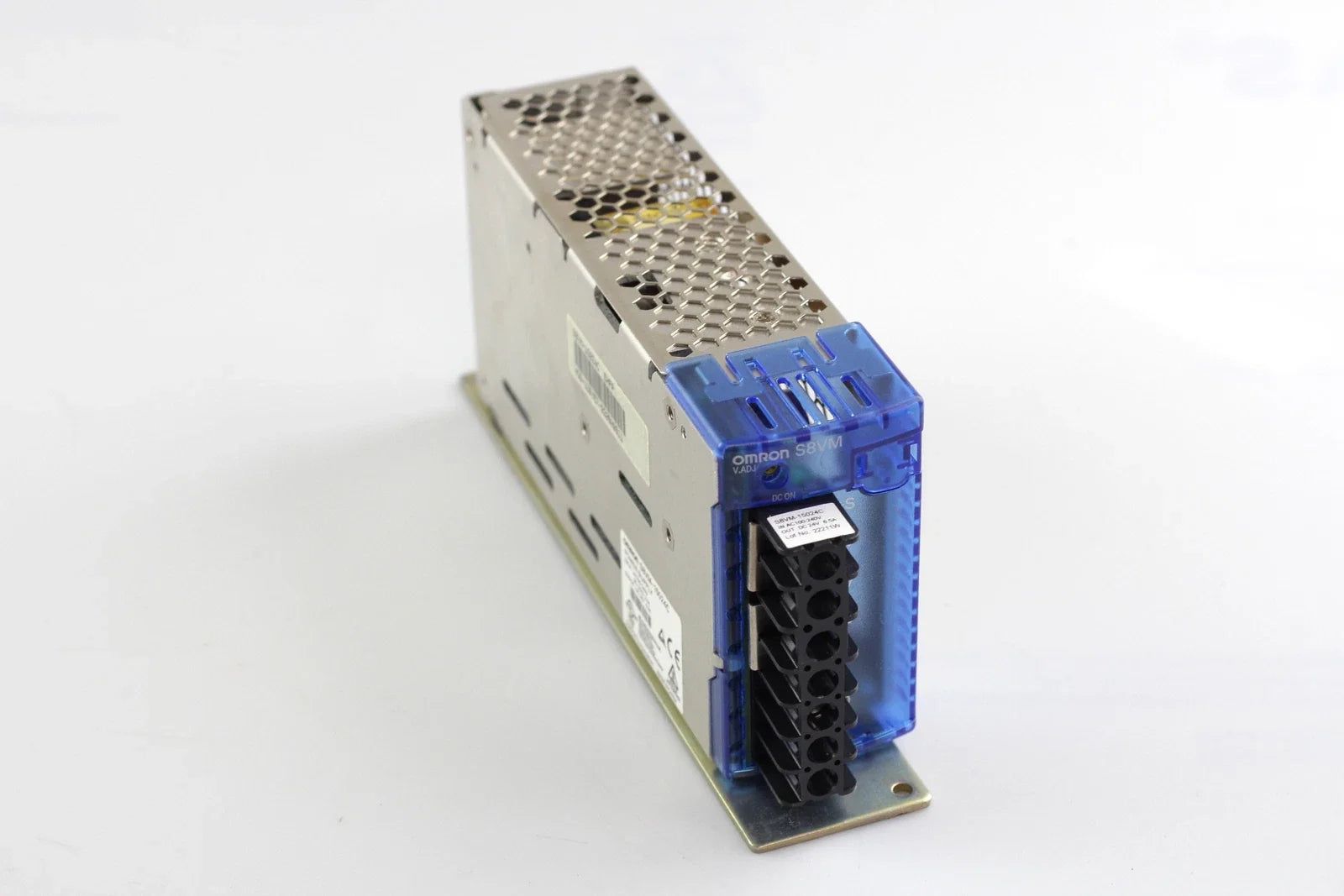

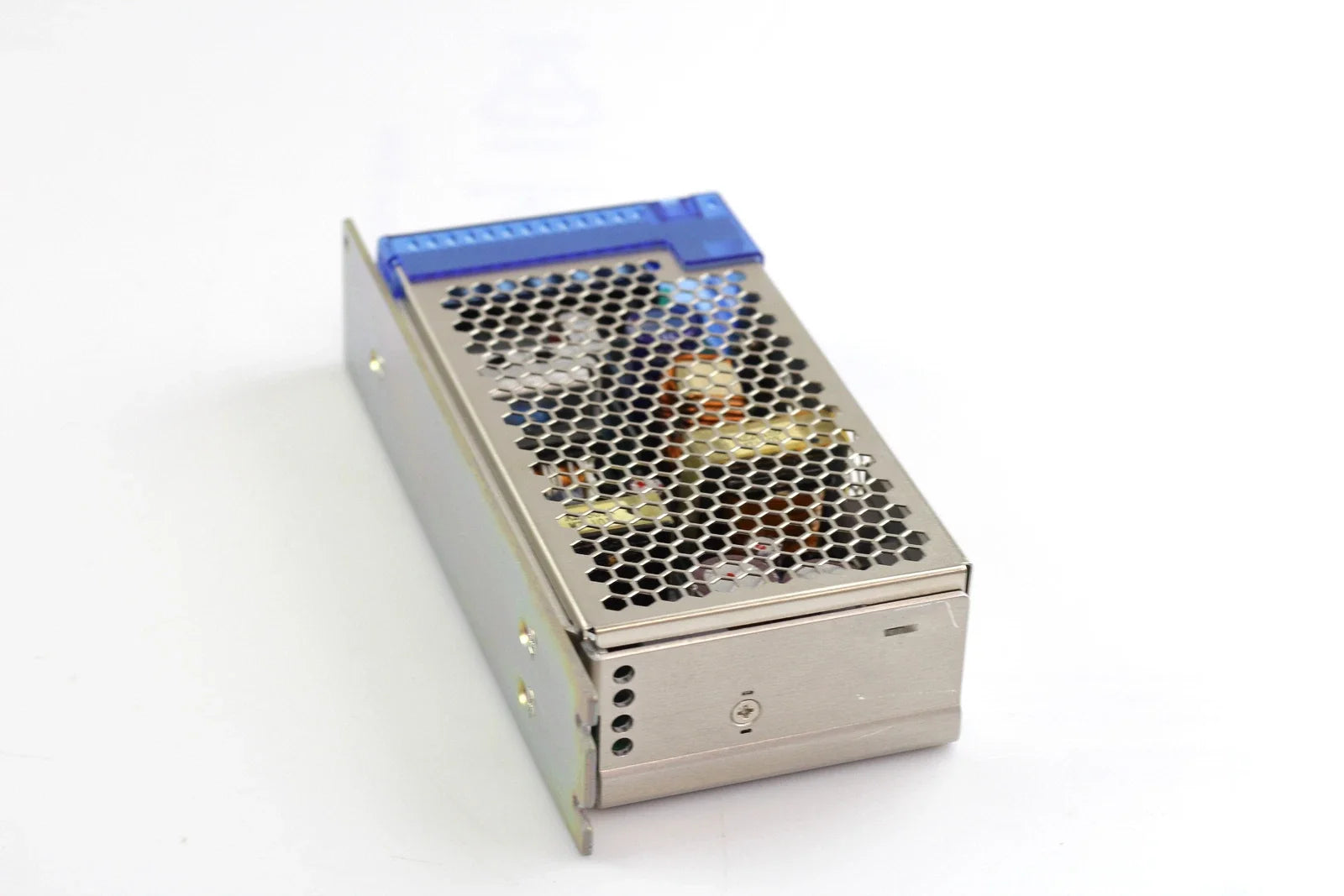

The Omron S8VM-15024C is a 24 VDC switching power supply designed to provide stable DC output for industrial control systems. Rated at 6.5 amps with a wide 100–240 VAC input range, it supports reliable operation of PLCs, HMIs, sensors, and other automation components. Its covered design enhances protection in panel-mounted applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Power Supplies |
| Part Number |
S8VM-15024C |
| Subcategory |
Power Supply |
| Product Type |
Switching Power Supply |
| Input Voltage |
100–240 VAC |
| Input Frequency |
50/60 Hz |
| Output Voltage |
24 VDC |
| Output Current |
6.5 A |
| Rated Power |
150 W |
| Housing Type |
Covered |
| Mounting Method |
DIN Rail Mount |
| Protection Features |
Overload, overvoltage, short-circuit protection |
| Model Series |
S8VM Series |
| Weight |
1.19 lbs |
Information About S8VM-15024C
The S8VM-15024C is part of Omron’s S8VM series of compact DIN rail power supplies engineered for industrial environments. It converts a universal AC input into regulated 24 VDC output suitable for control panels and automation equipment. The unit features built-in overvoltage, overload, and short-circuit protection to safeguard connected devices. Designed for efficient heat dissipation and long service life, it integrates easily into standard control cabinets.
Key Features:
- 24 VDC Output: Provides regulated DC power for industrial control devices.
- 6.5 Amp Output Current: Supports multiple field devices and control components.
- Wide AC Input Range: Accepts 100–240 VAC for global installation flexibility.
- Covered Housing Design: Enhances safety and protection inside control panels.
- Built-In Protection Functions: Includes overload, overvoltage, and short-circuit protection.
- DIN Rail Mounting: Allows fast and secure installation in electrical cabinets.
- Compact Industrial Form Factor: Optimized for space-saving panel integration.
The S8VM-15024C delivers the reliability and precision required for stable DC power distribution in industrial automation systems.
