Overview

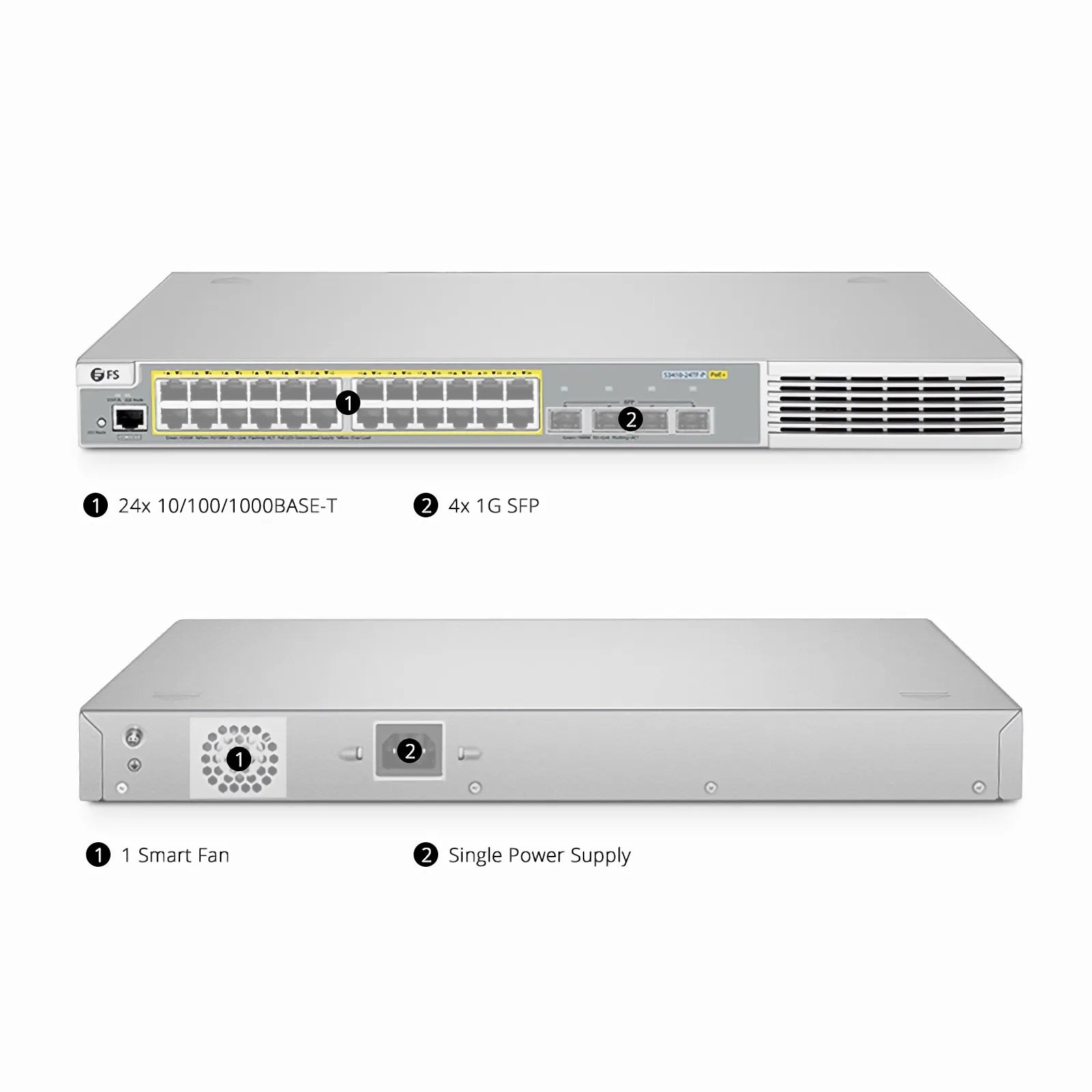

The S3410L-24TF-P is a Layer 2+ Ethernet switch equipped with 24 x 10/100/1000Mbps PoE+ ports and 4 x 1Gb SFP uplink ports. Designed for access-layer deployment, this switch utilizes a Broadcom BCM56150 chipset and an ARM A9 single-core processor. It supports the PicOS network operating system, providing a foundation for network configuration and management, including automated deployment via the AmpCon-Campus platform.
Key Features
-
370W Power over Ethernet Budget: Provides up to 30W of power per individual port, allowing for the direct powering of security cameras and Wi-Fi 6 access points.
-
Multi-Chassis Link Aggregation (MLAG) Support: Enables the grouping of multiple physical switches into a single logical entity to increase link redundancy and total bandwidth.
-
Comprehensive Management Protocols: Features built-in support for SNMP v1/v2/v3, RMON, and Ansible, allowing for standardized network monitoring and automated configuration tasks.
-
Advanced Security Functions: Includes integrated 802.1X authentication, MAC-based authentication, and Dynamic ARP Inspection to verify the identity of connected devices and protect against unauthorized network access.
-
Traffic Prioritization: Supports Quality of Service (QoS) and Voice VLAN configurations, allowing administrators to prioritize time-sensitive voice and video traffic over standard data traffic.
Technical Specifications
| Product Model |
S3410L-24TF-P |
| Switching Chipset |
Broadcom BCM56150 |
| CPU |
ARM A9 Single-Core |
| RJ45 Ports |
24 x 10/100/1000BASE-T PoE+ |
| SFP Ports |
4 x 1Gb SFP Uplinks |
| PoE Budget |
370W |
| Switching Capacity |
28 Gbps (Unidirectional) / 56 Gbps (Bidirectional) |
| Operating System |
PicOS |
| Redundancy Features |
MLAG, VRRP, LACP, MSTP, ERPS |
| Security Protocols |
802.1X, RADIUS, TACACS+, DHCP Snooping, DAI, IPv4 Source Guard |
| Management Interfaces |
AmpCon-Campus, SNMP, Syslog, CLI |
