Description

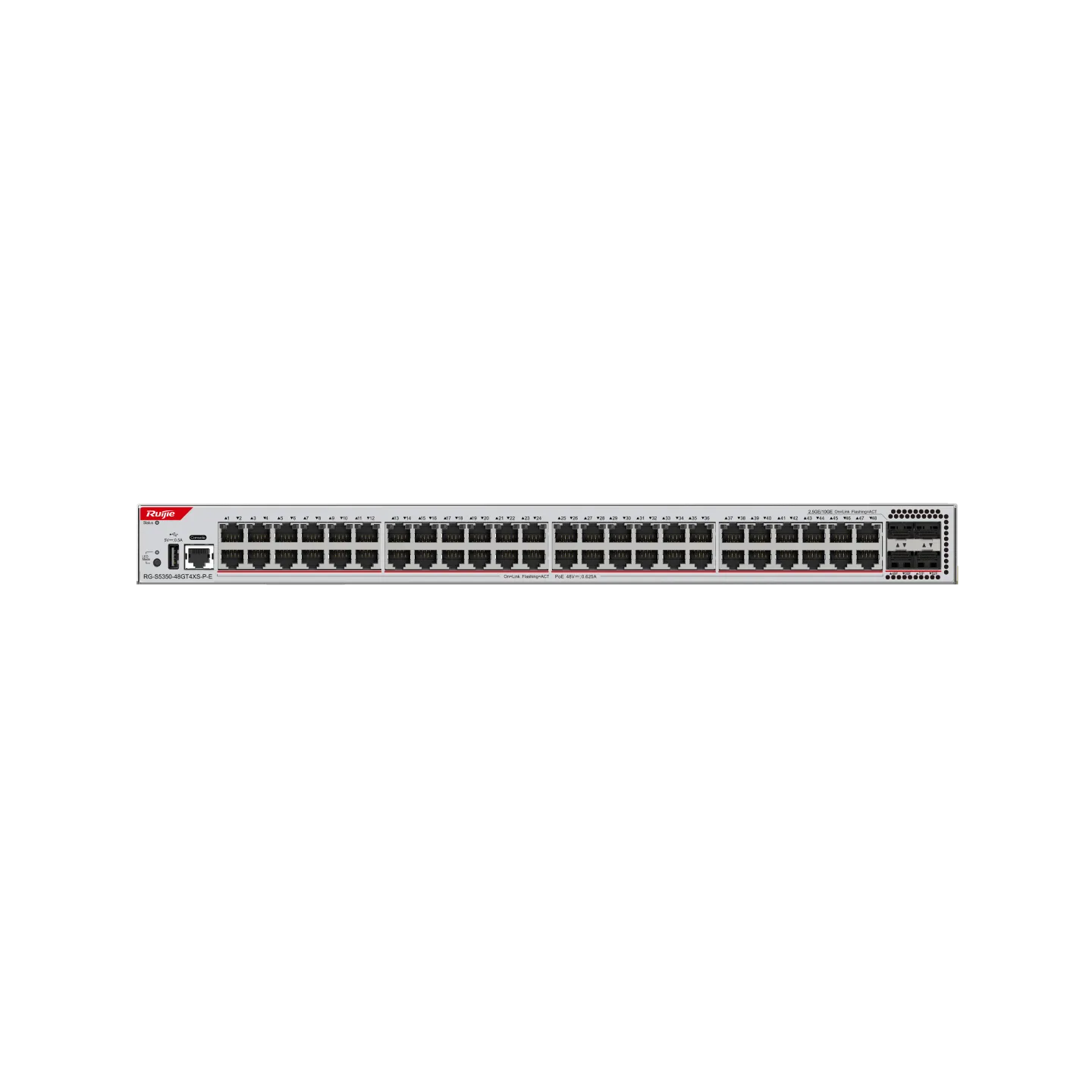

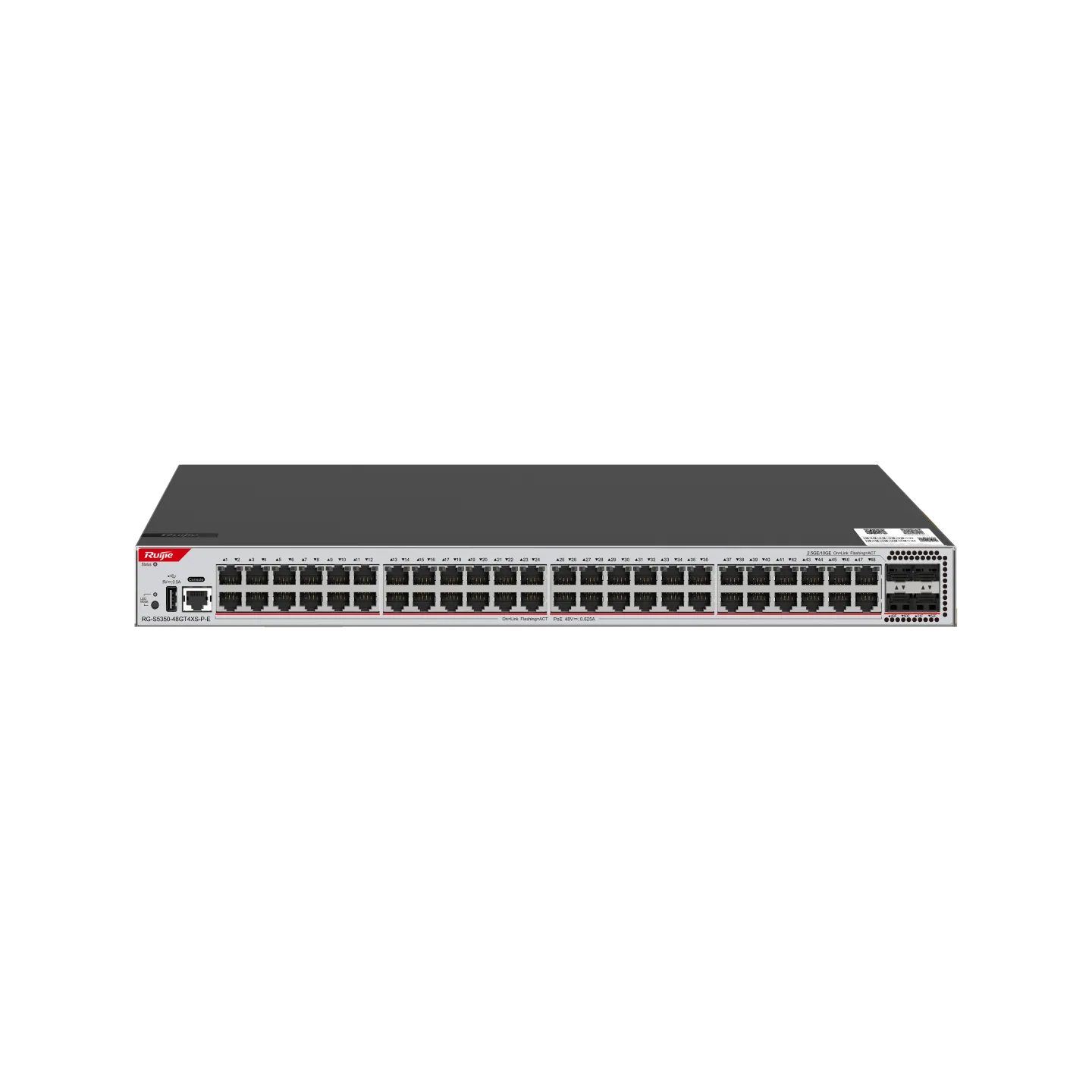

Ruijie RG-S5350-48GT4XS-P-E 48-Port GE Layer 3 PoE+ Switch, 4×1 GE/10 GE SFP+ Uplinks
The RG-S5350-48GT4XS-P-E from Ruijie’s RG-S5350-E Essentials series is designed for high-density, high-performance campus-edge deployments. It features 48 auto-sensing 10/100/1000 BASE-T downlinks with IEEE 802.3af/at PoE/PoE+ (up to 30 W per port) and four fixed SFP+ slots supporting 1 GE, 2.5 GE, or 10 GE optics .
Powered by a dual-core 1.0 GHz CPU, 1 GB DDR4, 512 MB flash, 16 MB BootROM, and a 4 MB packet buffer, it provides 211 Gbps of non-blocking switching capacity and a 158 Mpps forwarding rate.
Housed in a fanless IP 40 1 RU chassis, it supports VSU virtualization for sub-50 ms failover, IEEE 802.3az Energy-Efficient Ethernet, CPU Protection Policy (CPP), Network Foundation Protection Policy (NFPP), and zero-touch O&M via Ruijie INC or Cloud.
Overview
Highlights
- High scalability: The switching capacity of 176 Gbps and a forwarding rate of 131 Mpps enable the RG-S5350-48GT4XS-P-E to amicably deal with high traffic loads, ensuring the network is performing smoothly without interruption.
- PoE+ Power Supply: Ports 1 to 48 support IEEE 802.3af/at PoE/PoE+, 30 W per port, which can meet the power supply for terminals, such as VoIP phones, wireless access points, and IP camera.
- Multiple Connectivity: The RG-S5350-48GT4XS-P-E provides multiple connectivity with 48 Gigabit Ethernet ports, 4 SFP+ uplink ports, supporting various topologies and network requirements.
- Support IEEE 802.1X authentication, IP Source Guard, Dynamic ARP Inspection at the network side, for the user to provide safe and reliable network access.
- Extensive Management: The switch has a number of managing interfaces such as SNMP, Web and CLI configuration that ensure easy configuration, monitoring and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5350-48GT4XS-P-E:
| Product Name | Category | Description |
| Ruijie RG-PA150IB-F | Power Supply Units |
150W AC power supply module, suitable for industrial switches like the RG-S5350-48GT4XS-P-E. |
| Ruijie RG-PD150IB-F | Power Supply Units |
150W DC power supply module, offering a compact solution for smaller setups. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
|
MokerLink 1U Rack Mount Kit |
Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5350-48GT4XS-P-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Capacity / Forwarding | PoE Budget |
|---|---|---|---|
| RG-S5350-48GT4XS-P-E | 48×GE PoE/PoE+ + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | 740 W / 370 W |
| RG-S5350-24GT4XS-P-E | 24×GE PoE/PoE+ + 4×10 GE SFP+ | 154 Gbps / 115 Mpps | 370 W |
| RG-S5350-12GT4XS-P-E | 12×GE PoE/PoE+ + 4×10 GE SFP+ | 125 Gbps / 94 Mpps | 360 W |
| RG-S5350-48GT4XS-E | 48×GE data-only + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | None |
Specifications
| Parameter | Specification |
| Model | RG-S5350-48GT4XS-P-E |
| Port Configuration | 48 x 10/100/1000BASE-T, 4 x 1G/10G SFP+ |
| PoE Support | Ports 1 to 48 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 131 Mpps |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 4,000/16,000 (authorized) |
| ND Table Size | 2,000/8,000 (authorized) |
| IPv4 Unicast Routes | 8,000/12,000 (authorized) |
| IPv6 Unicast Routes | 4,000 |
| Access Control Entries | Ingress: 3,500; Egress: 1,500 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 65 W (without PoE load); 810 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 4.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
