Built for demanding outdoor environments, this ruggedized 12-fiber MPO/MTP multimode test set delivers fast and accurate link attenuation measurements across all 12 fibers in under 10 seconds.
Featuring an integrated 850 nm light source and 12-channel InGaAs power meter, the unit supports A, B, and C polarity detection, and provides instant Pass/Fail reporting based on user-defined thresholds.
Ideal for certifying MPO trunks in data centers, telecom installations, or harsh environments, this unit includes reference cables, PC software, and a sealed case for water-resistant field operation.
🧰 Kit Includes
-
Rugged 12-Position Multimode Power Meter
-
850 nm Multimode Light Source
-
2 MPO/MTP Type A Reference Cords with MTP Pro Connectors
-
2 MPO/MTP Mating Sleeves
-
2 AC Power Adapters (120–240 V AC to 12 V DC)
-
USB Mini Cable & PC Reporting Software
-
Ruggedized Waterproof Carrying Case
✅ Key Features
-
Test 12 MPO Fibers in Under 10 Seconds
-
Supports A, B, C, and 40G Polarity Configurations
-
Pass/Fail Reporting with user-defined dB/dBm thresholds
-
USB Data Transfer for up to 1,000 stored test results
-
Flexible Light Source Modes:
-
Class 3B Laser with CW or Modulated Output
-
Auto Power-Off after 10 Minutes Idle
-
Field-Proven Rugged Design with Sealed Housing

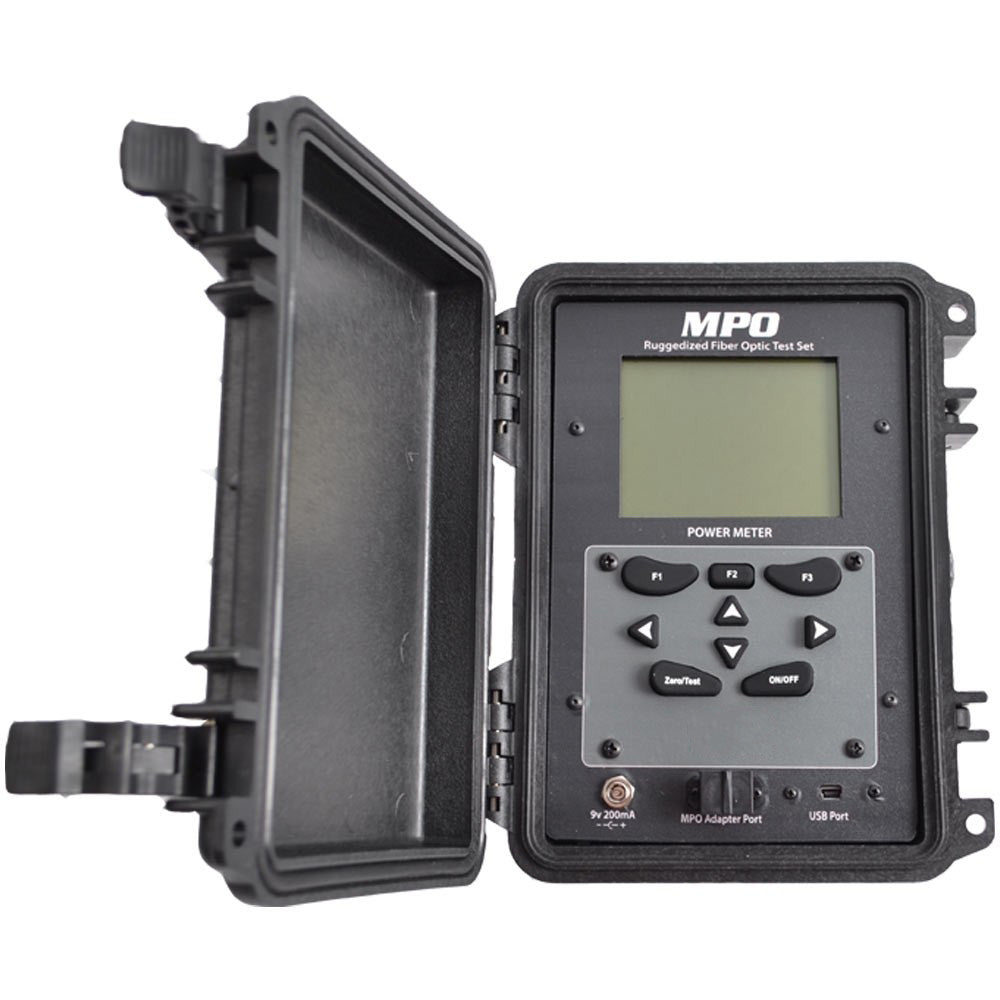

📋 Power Meter Specifications
| Parameter |
Value |
| Measurement |
Power / Insertion Loss (dBm/dB) |
| Detector Type |
12 × InGaAs Photodiodes (800–1700 nm range) |
| Calibrated Wavelength |
850 nm (Multimode) |
| Dynamic Range |
+3.0 dBm to –50 dBm |
| Resolution |
0.01 dBm/dB |
| Accuracy |
±0.15 dBm/dB |
| Polarity Detection |
A, B, C, and 40G |
| Test Storage |
999 results |
| Data Output |
USB Mini (Serial Interface) |
| Connector Type |
MPO Male UPC (62.5/125 or 50/125 µm compatible) |
| Battery Type |
8 × NiMH Rechargeable (2100 mAh) |
| Battery Life / Charge |
~6 hrs / ~3 hrs |
| Dimensions / Weight |
8″ × 6″ × 4″ / 3.0 lbs (ruggedized) |

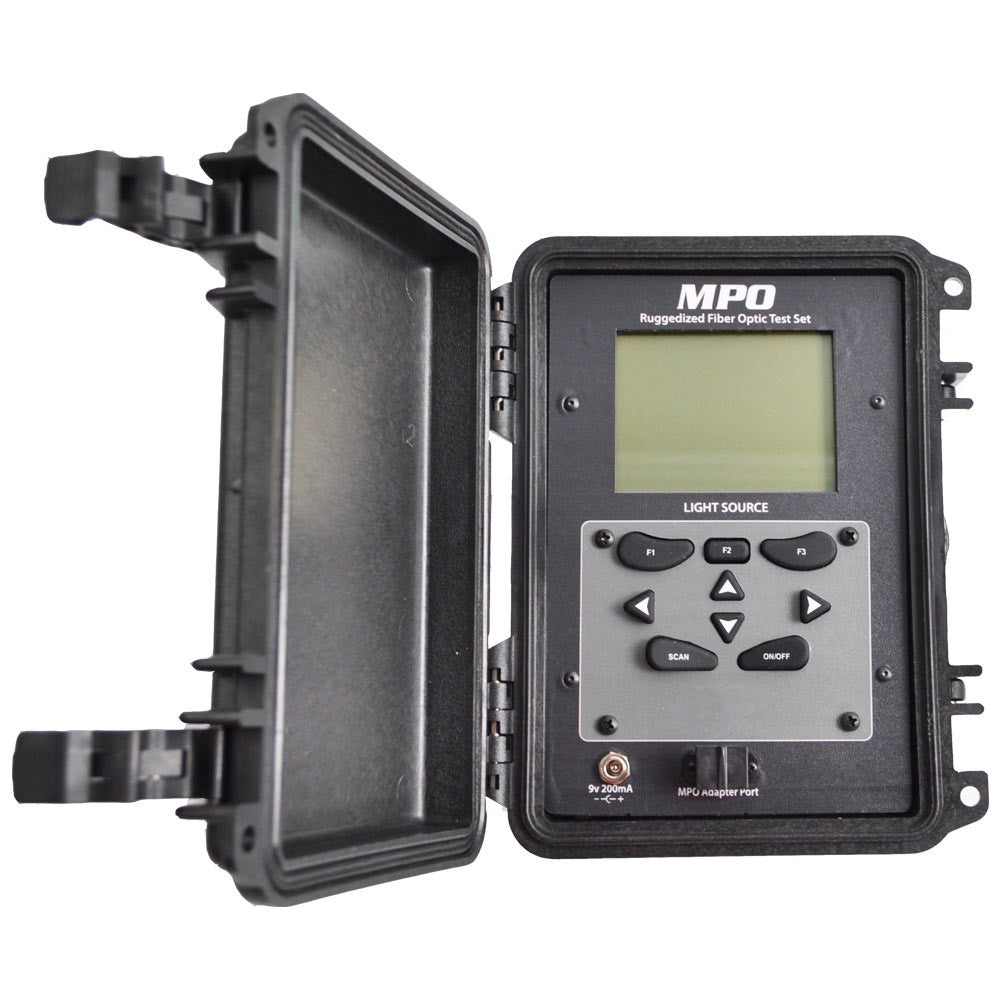

📋 Light Source Specifications
| Parameter |
Value |
| Wavelength |
850 nm (Multimode) |
| Output Power |
< –4.0 dBm typical (50/125 µm fiber) |
| Modulation Modes |
CW, 270 Hz, 1 kHz, 2 kHz |
| Output Modes |
Auto, Manual, All-On, 40G (1–4 & 9–12) |
| Laser Safety Class |
Class 3B |
| Battery Life / Charge |
~6 hrs / ~3 hrs |
| Dimensions / Weight |
8″ × 6″ × 4″ / 3.0 lbs (ruggedized) |
| Water Resistance |
30 min in 1 m (3.3 ft) of water with cover closed |
🔢 Ordering Information
| Part Number |
Description |
| F1850MPOR |
Rugged MPO 12-Fiber MM Test Set – 850 nm Source |
| F1850MPO |
Standard MPO MM Test Set – 850 nm Source |
| 9400-0001MMLS |
MM 850 nm Light Source (Unit Only) |
| 9400-0003MMPM |
MM Power Meter (Unit Only – 850 nm) |
🧩 Optional Accessories
-
MPOACCESSORYKITMM – OM3 Cleaner, Gender Change Tool, Sleeves, Reference Cord
-
18814 – MTP Pro Field Tool (Gender Changer)
-
F1EFRC-OM3 – OM3 Encircled Flux Reference Cord
-
LC–MPO Breakout Cable – For fan-out trunk testing
