Description

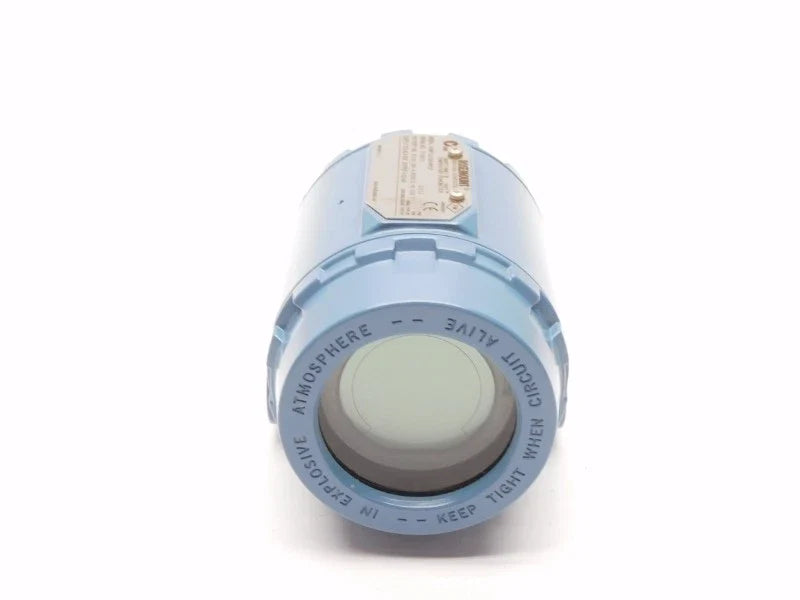

The Rosemount 3144PD1A1NAB4M5 Temperature Transmitter is a field-mounted smart temperature transmitter designed to deliver highly accurate and reliable temperature measurements in industrial process applications. This Rosemount transmitter features a 4–20 milliampere output with HART® communication, a dual-compartment housing, and a large LCD display for simplified configuration and diagnostics. It is suitable for critical process monitoring in oil and gas, chemical processing, power generation, water treatment, and manufacturing industries.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Rosemount |
| Category |
Sensors & Switches |
| Part Number |
3144PD1A1NAB4M5 |
| Subcategory |
Temperature Transmitter |
| Product Family |
Rosemount 3144P |
| Product Type |
Smart Temperature Transmitter |
| Housing |
Dual-Compartment Field Mount Housing (D1) |
| Output Signal |
Four to Twenty Milliampere with HART® Digital Communication |
| Sensor Input |
Single Universal Sensor Input |
| Display |
Integrated LCD Display (M5) |
| Mounting Bracket |
Universal Stainless Steel Bracket for Two-Inch Pipe and Panel Mounting |
| Hazardous Area Approval |
No Approval (NA) |
| Sensor Compatibility |
Resistance Temperature Detector, Thermocouple, Millivolt, Ohm |
| Diagnostics |
Hot Backup™, Sensor Drift Alert, Thermocouple Degradation, Minimum and Maximum Temperature Tracking |
| Long-Term Stability |
Five Years |
| Technology Support |
Rosemount X-well™ Technology Compatible |
| Operating Ambient Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Weight |
2.4 kg |
Information About 3144PD1A1NAB4M5

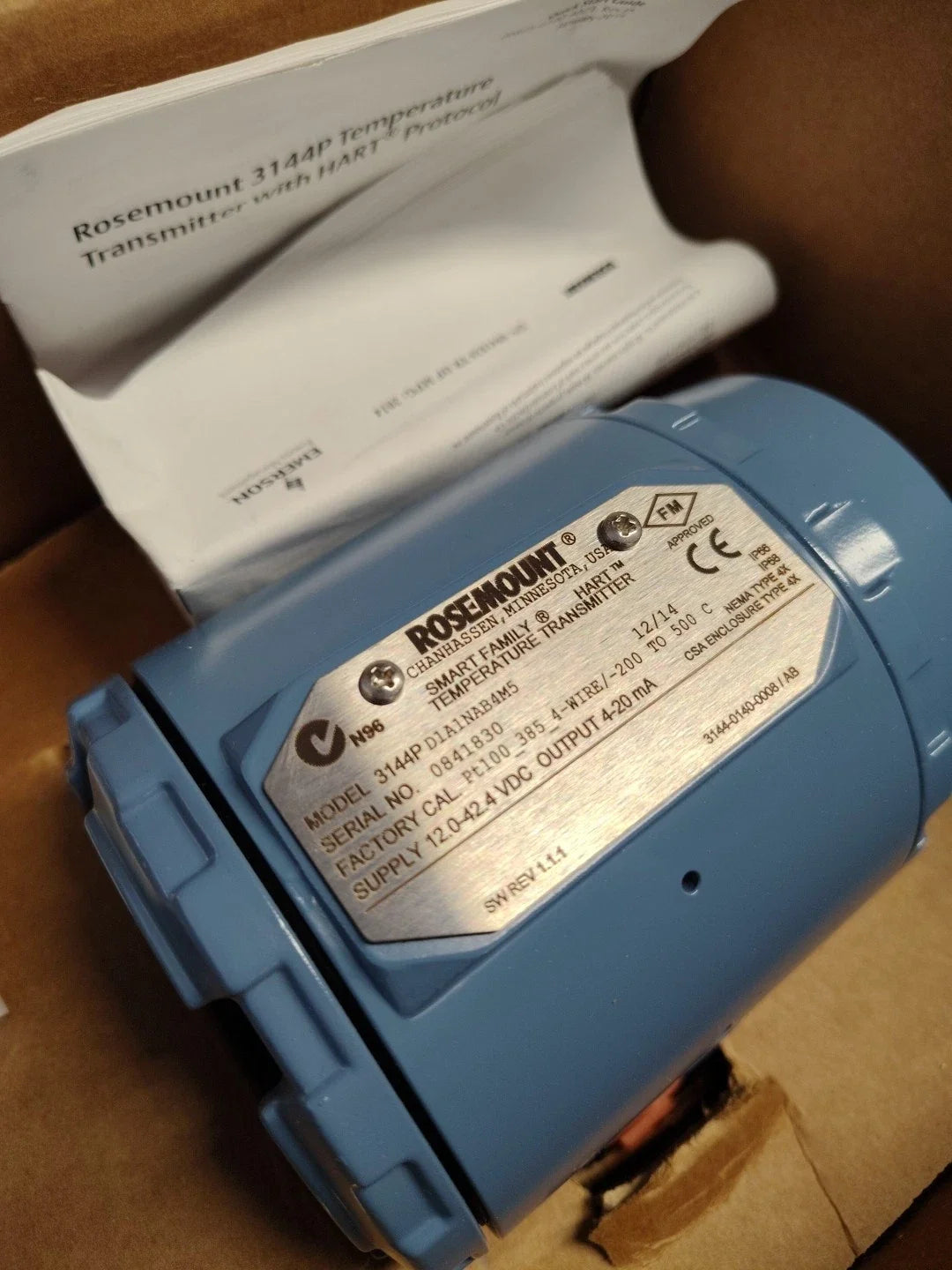

The 3144PD1A1NAB4M5 is a configurable model within the Rosemount™ 3144P Temperature Transmitter family engineered by Emerson for demanding industrial environments. This configuration includes a dual-compartment field-mount aluminum housing, single-sensor input, HART® communication, universal stainless steel mounting bracket, and an integrated LCD display for local monitoring. The transmitter supports transmitter-to-sensor matching, advanced diagnostics, Hot Backup™, sensor drift alert, thermocouple degradation monitoring, and Rosemount X-well™ Technology for temperature measurement without process penetration. Its rugged construction, long-term stability, and intelligent diagnostics help improve process reliability while reducing calibration frequency and maintenance costs.
Key Features:
- Industry-Leading Accuracy: Provides precise and stable temperature measurement for critical process applications.
- HART® Communication: Supports remote configuration, diagnostics, and asset management through standard HART protocol.
- Dual-Compartment Housing: Separates electronics from field wiring to improve reliability in harsh environments.
- LCD Display: Displays process values and diagnostic information locally for easier operation and troubleshooting.
- Advanced Diagnostics: Includes Hot Backup™, sensor drift alert, thermocouple degradation monitoring, and minimum/maximum temperature tracking.
- Universal Sensor Compatibility: Supports resistance temperature detectors, thermocouples, millivolt, and resistance input types.
- Universal Mounting Bracket: Includes stainless steel bracket for two-inch pipe or panel mounting.
- Long-Term Stability: Five-year stability helps reduce recalibration intervals and maintenance requirements.
The 3144PD1A1NAB4M5 delivers the reliability and precision required for critical industrial temperature measurement and process automation applications.
