Description

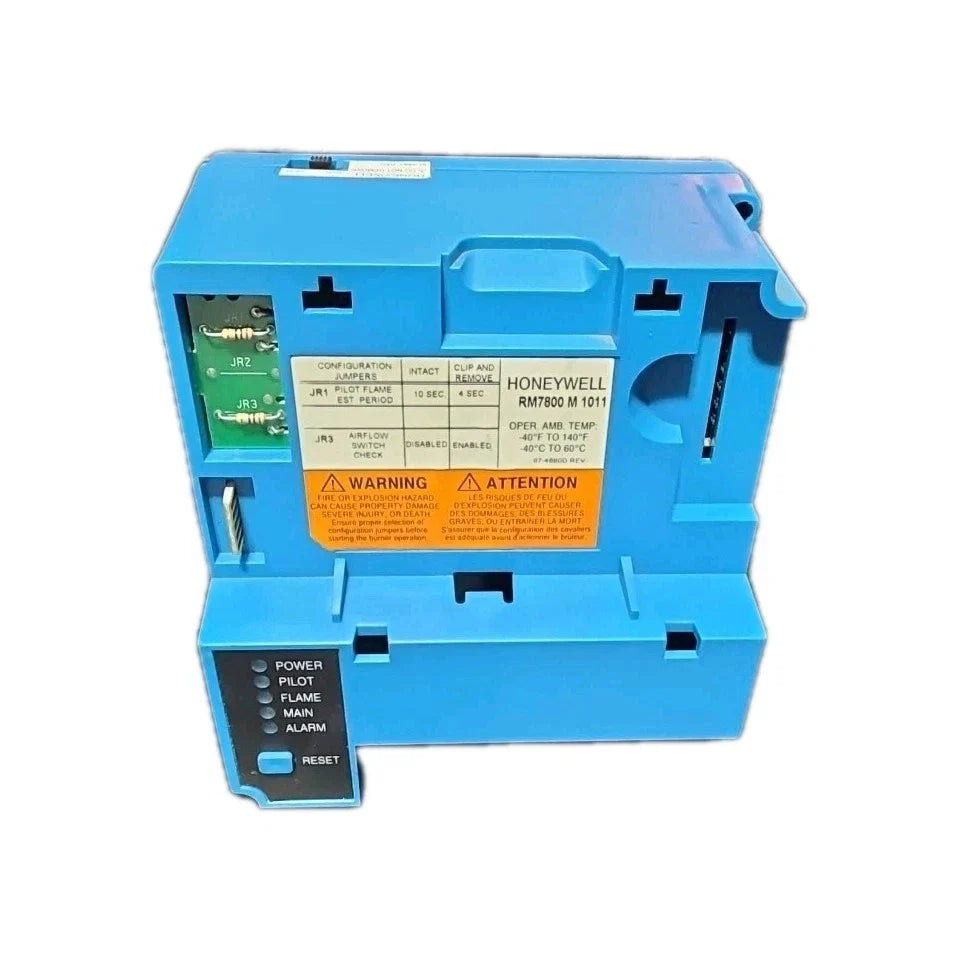

The Honeywell RM7800M1011 burner control is a microprocessor-based relay module designed to manage ignition and flame supervision in industrial burner systems. Operating on 120 VAC at 50/60 Hz, it coordinates pre-ignition, running, and low-fire sequences for safe burner operation. This control is part of the Honeywell 7800 Series and is used with compatible keyboard display modules.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Burner Controls |
| Part Number |
RM7800M1011 |
| Subcategory |
Burner Control Modules |
| Series |
7800 Series |
| Product Type |
Burner Control Relay Module |
| Supply Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
10 W |
| Control Functions |
Pre-Ignition, Running, Low Fire |
| Display Interface |
Keyboard Display Module |
| Application |
Industrial and commercial burner systems |
| Weight |
2.15 lbs |
Information About RM7800M1011
The RM7800M1011 is part of Honeywell’s 7800 Series burner management controls, engineered for reliable operation in commercial and industrial combustion applications. It functions as a relay module that executes programmed burner sequences, including pre-ignition checks and controlled transitions between operating states. The unit is designed to interface with a keyboard display module, providing visibility into system status and diagnostics. Built for continuous-duty environments, it supports stable operation using standard 120 VAC power.
Key Features
- 7800 Series Relay Module: Designed for integration into Honeywell 7800 Series burner control systems.
- Microprocessor-Based Control: Manages ignition sequencing and burner operating states with precision.
- Pre-Ignition Sequencing: Supports controlled pre-ignition checks prior to burner startup.
- Low-Fire and Run Control: Regulates burner operation during low-fire and normal running conditions.
- Keyboard Display Module Support: Enables system monitoring and diagnostics when paired with a display module.
- 120 VAC Operation: Compatible with standard industrial and commercial power supplies.
- Continuous Duty Design: Engineered for reliable operation in burner management applications.
The RM7800M1011 delivers the reliability and precision required for safe burner sequencing and flame safeguard control in industrial combustion systems.
