[shortdesc] RM-FR-T14: Customized 19" rack mount for specific Fortinet desktop firewalls, ensuring ease of access to connections and steadfast power supply. [/shortdesc]
[properties]
| Product Name |
RM-FR-T14 Rack Mount for Fortinet Desktop Firewalls |
| Description |
1U rack mount kit specifically designed for Fortinet desktop firewalls, allowing secure installation in a 19-inch rack with front-facing network connections. |
| Supported Models |
FortiGate 40F, FortiGate 40F-3G4G, FortiADC 60F |
| Assembly Time |
Fast installation in rack setup |
| Height |
1U (1.75 inches or 44.45 mm) |
| Enclosure Type |
Metal enclosure for durability |
| Mount Compatibility |
19-inch racks |
| Network Connections Front-Facing |
6 Ethernet ports |
| Console Port |
Front-facing for ease of access |
| Environmental Compliance |
RoHS compliant |
| Certifications |
CE certified |
[/properties]
[specifications]
| Dimensions (HxWxD) |
1.75 in. x 18.98 in. x 8.54 in. (44.45 x 482 x 217 mm) |
| Cable Lengths |
6 x 0.5m Ethernet cables included |
| Number of RJ45 Couplers |
6 x RJ45 couplers |
| Material |
Steel, corrosion-resistant |
| Mounting Design |
Front-facing connectors for easy access |
| Power Supply Support |
Fixed power setup prevents accidental disconnection |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity Support |
10% to 90% non-condensing |
| Color |
RAL 9003 Signal White |
| What's in the Box |
FortiRack, RJ45 couplers, cables, assembly materials, installation guide |
[/specifications]
RM-FR-T14 Rack Mount for Fortinet Desktop Firewalls

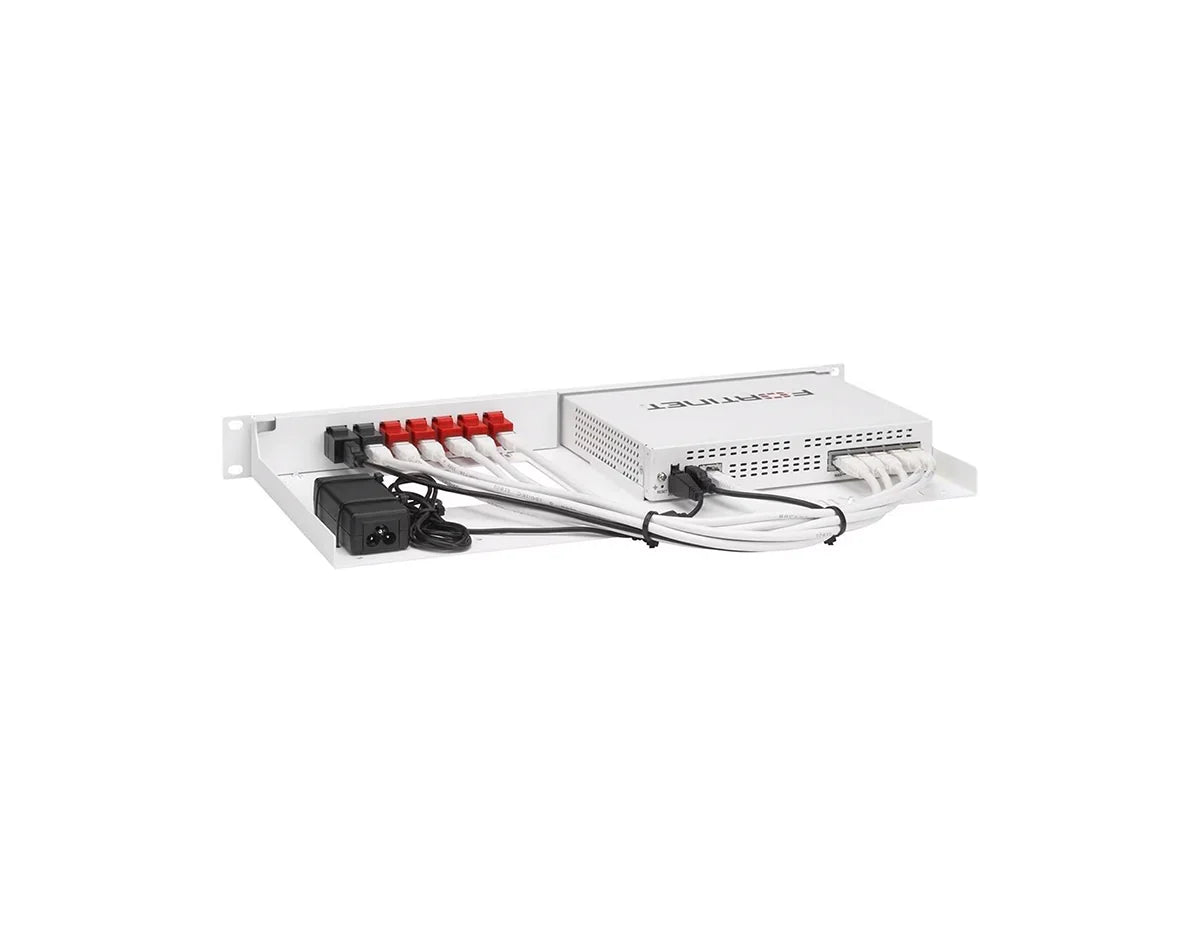

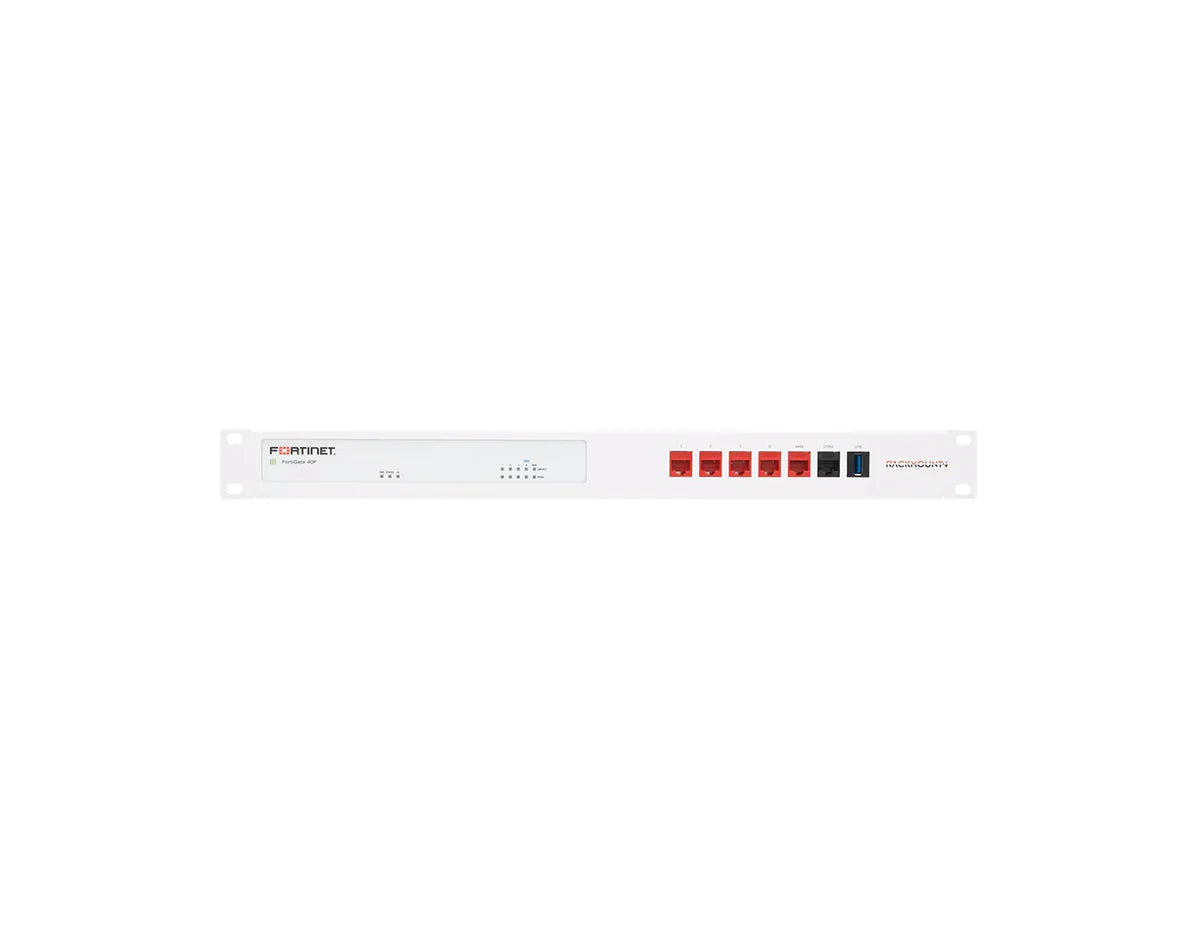

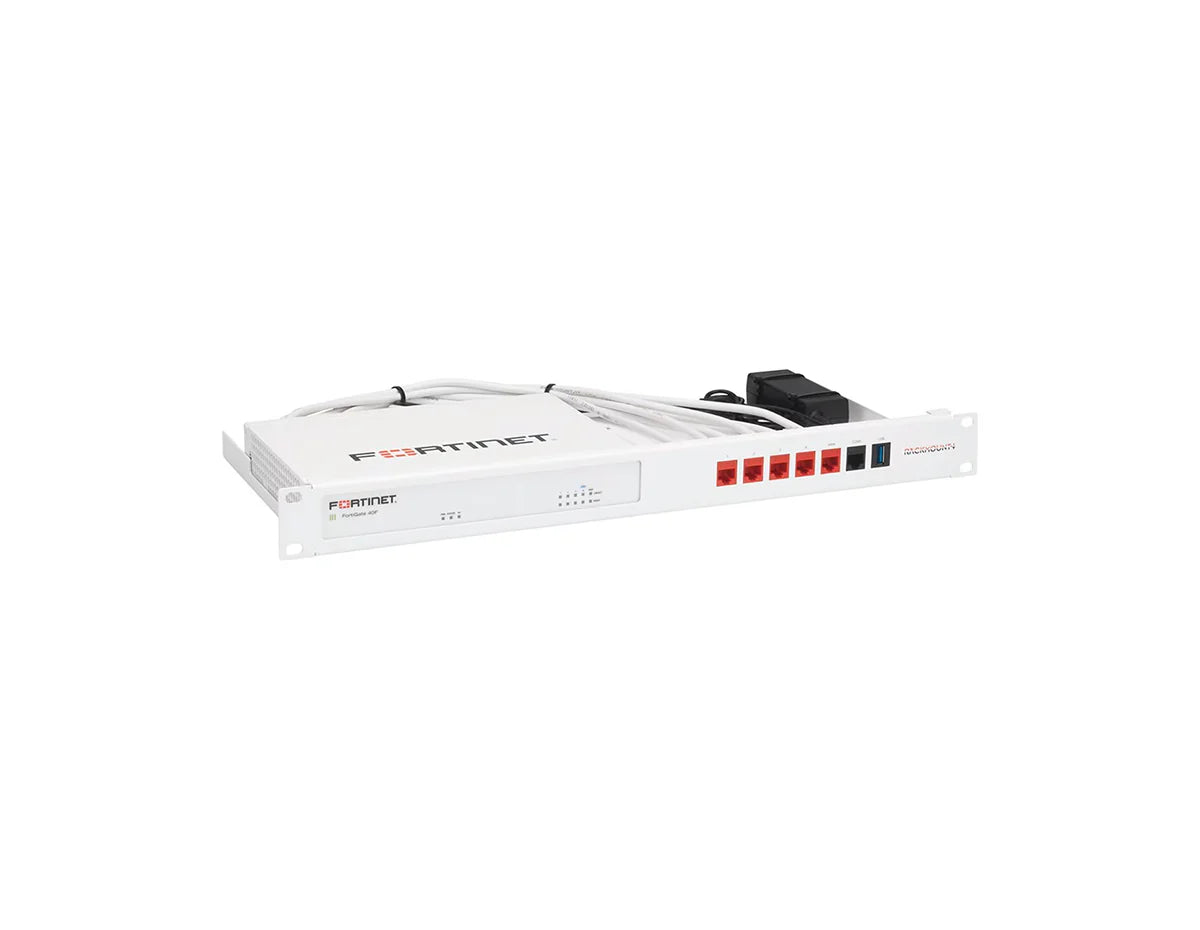

The RM-FR-T14 provides the capability to mount a Fortinet desktop firewall securely within a 19" rack. This rack is designed specifically for the specified models to ensure precise compatibility. Furthermore, the front-facing placement of connections facilitates convenient access, while the fixed power supply mitigates the risk of inadvertent power loss.
Quick Specs:
- Easy 5-minute assembly in a 19-inch rank
- Front facing network connections
- Supported models: FortiGate 40F, FortiGate 40F-3G4G and FortiADC 60F
- 1U
Please see the related tabs for the RM-FR-T14 datasheet and compatible accessories.
