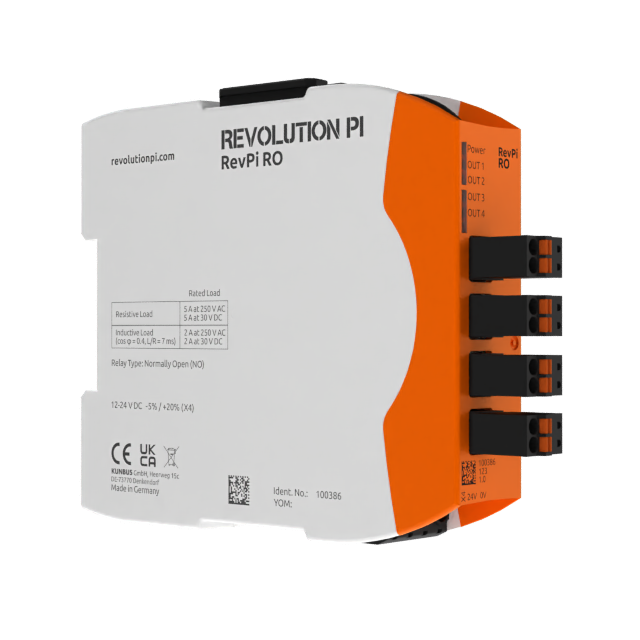

| Interfaces | 4 potential-free relay contacts, max. 250 V AC / 30 V DC, 5 A (2 A inductive load) |
| Connectors | 1 x 4-pole screw-type terminal for power supply 4 x 2-pole socket connectors with spring clamp contacts (0.08 mm² ... 1.5 mm²), pitch 3.5 mm |
| Conformity | CE, RoHS |
| Protection class | IP20 |
| Power | 24 V DC (10.8 ... 28.8 V DC) |
| Max consumption | 2.5 W |
| Dimensions | 96 x 22.5 x 111.5 mm (without connectors) 96 x 22.5 x 126 mm (incl. connectors) |
| Weight | approx. 95 g / 110 g (incl. connectors) |
| EMC immunity |
according to EN 61000-6-2 |
| EMC interference emission | in accordance with EN 61000-6-3 (may therefore also be used in residential and office areas without restriction) |
| Optical indicator | 5 status LEDs (bi-color) |
| Operating temperature | -20 °C to 55 °C |
| Storage temperature | -40°C to 55 °C |
| max. relative humidity (at 40 °C) | 85 % (non-condensing) |
| Casing material | Polycarbonate |
| Mounting | DIN rail (EN50022) |
