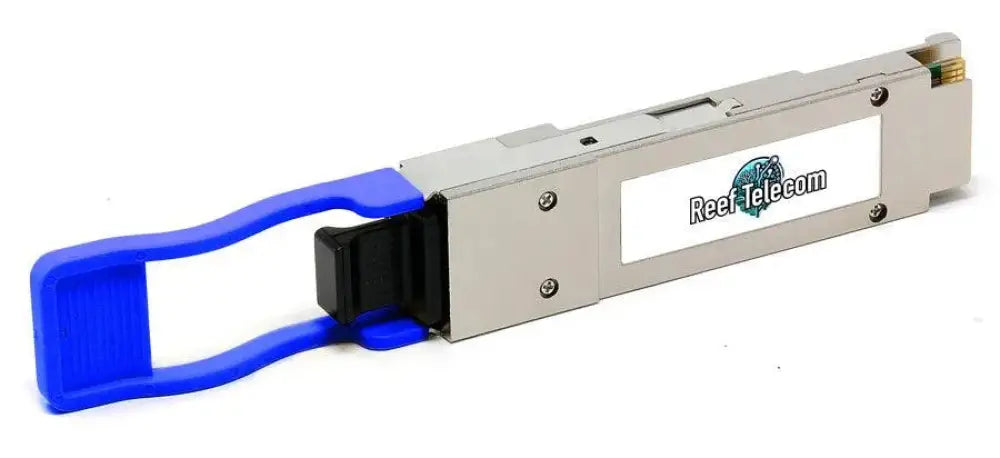

Reef Optics 40GBase-PLR4 QSFP+ Transceiver Module — NVIDIA Mellanox MC2210511-PLR4 Compatible
Deliver reliable 40G connectivity over single-mode fiber at a fraction of OEM cost. This Reef Optics QSFP+ transceiver is fully compatible with NVIDIA Mellanox platforms and replaces the MC2210511-PLR4, providing enterprise-grade performance backed by Reef Telecom's industry-leading 10-year warranty.
Key Specifications
-
Data Rate: 40Gbps (4x10G channels)
-
Wavelength: 1310nm
-
Max Distance: 10km over single-mode fiber (SMF)
-
Connector: MTP/MPO-12
-
Form Factor: QSFP+
-
Digital Diagnostics: DOM/DDM supported
-
Power Consumption: Less than 2.5W
-
Standards: IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
-
OEM Part Number: MC2210511-PLR4
Why Choose Reef Telecom?
- 10-year warranty — the longest in the industry
- Free shipping on orders over $300
- 100% compatibility guaranteed with NVIDIA Mellanox switches, routers, and NICs
- Hot-pluggable for zero-downtime installation
Ideal Applications
Designed for data center interconnects, enterprise core and distribution layers, campus backbone links, high-performance computing (HPC) environments, and InfiniBand QDR/DDR applications requiring reliable 40GbE connectivity up to 10km.
