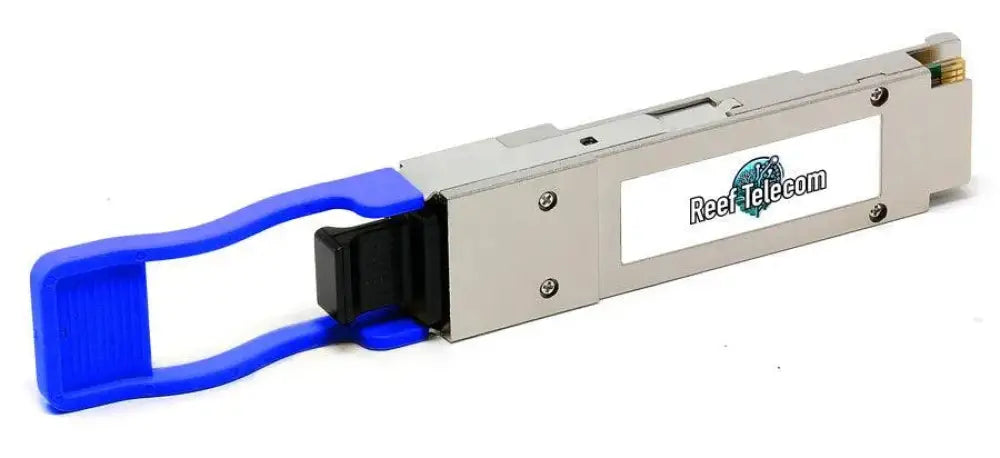

Reef Optics 200GBASE-SR4 QSFP56 Transceiver – NVIDIA/Mellanox MMA1T00-VS Compatible
Deliver high-performance 200GbE connectivity to your data center with this Reef Optics QSFP56 SR4 optical transceiver. Fully compatible with NVIDIA/Mellanox MMA1T00-VS, this module provides reliable 200Gbps Ethernet throughput over multimode fiber — backed by Reef Telecom's industry-leading 10-year warranty.
Key Specifications
-
Data Rate: 200Gbps (4x 50Gb/s PAM4 modulation)
-
Form Factor: QSFP56, hot-pluggable
-
Wavelength: 850nm VCSEL
-
Connector: MPO-12/MTP-12 UPC
-
Fiber Type: Multimode Fiber (MMF)
-
Max Reach: 100m (OM4) / 70m (OM3)
-
Standards: IEEE 802.3bs, 200GBASE-SR4, SFF-8636, SFF-8665, QSFP56 MSA
-
DDM/DOM: Digital Diagnostic Monitoring supported
-
Power Consumption: <5W typical
-
Temperature: Commercial 0°C to 70°C
-
Compatibility: NVIDIA/Mellanox MMA1T00-VS equivalent
Ideal Use Cases
Designed for data center interconnects, high-performance computing (HPC), enterprise core/distribution networks, and cloud infrastructure. The 200G SR4 uses the same MPO-12 interface as 100G SR4, enabling a seamless upgrade path from 100GbE to 200GbE without changing your fiber plant. Also backward compatible with QSFP-DD 400G ports operating at 200G.
