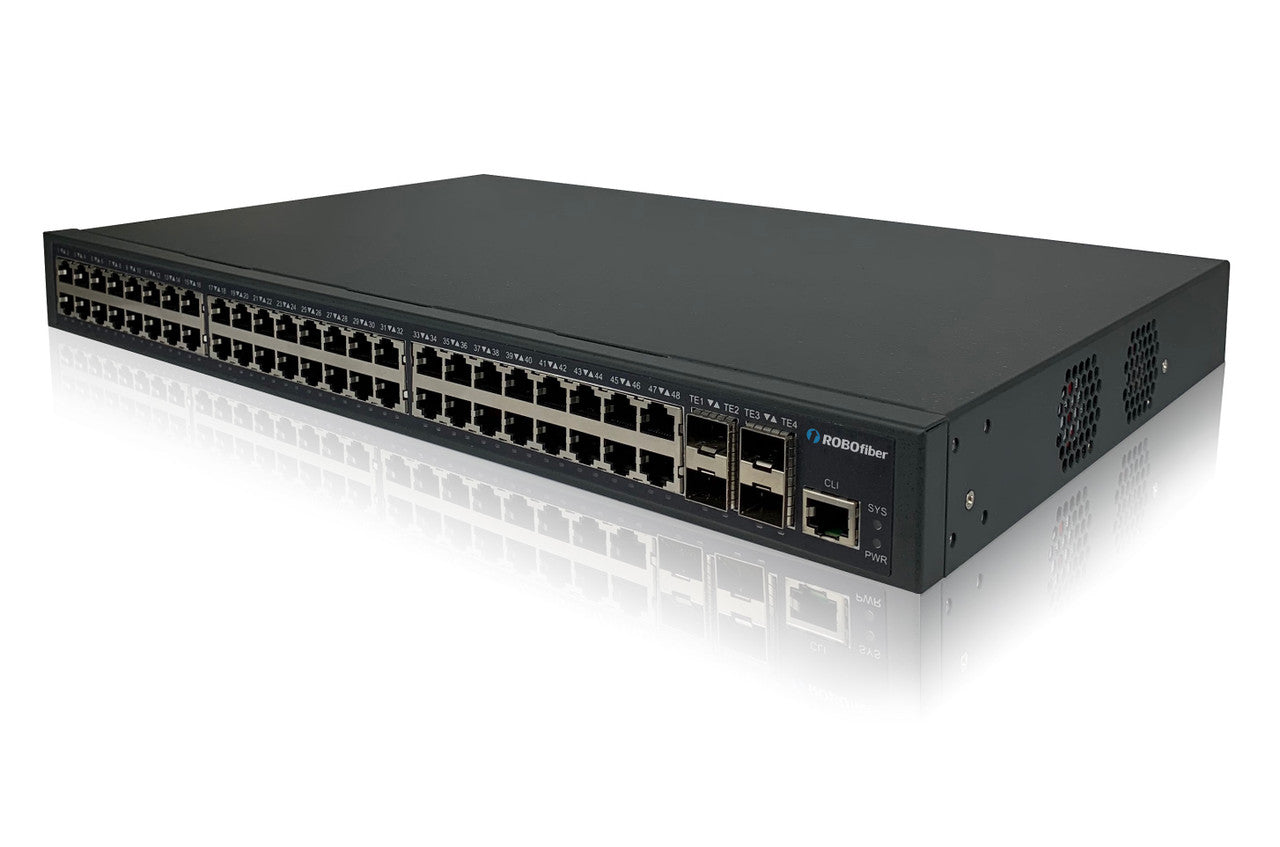

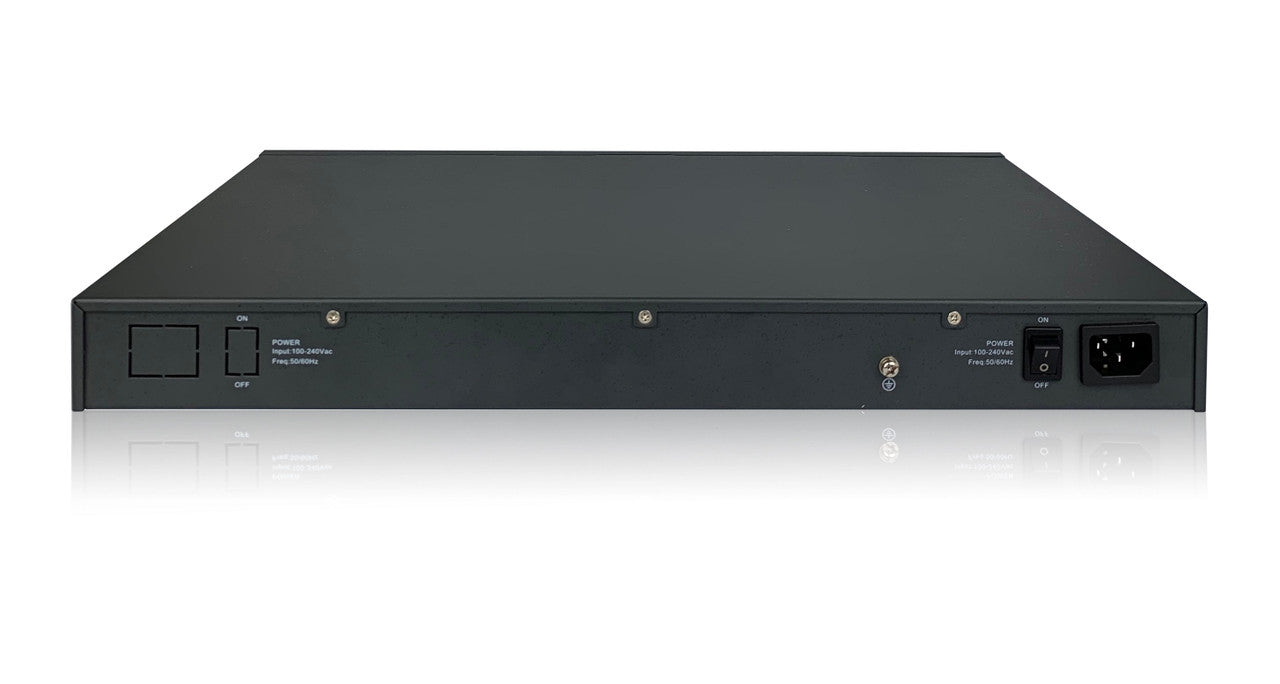

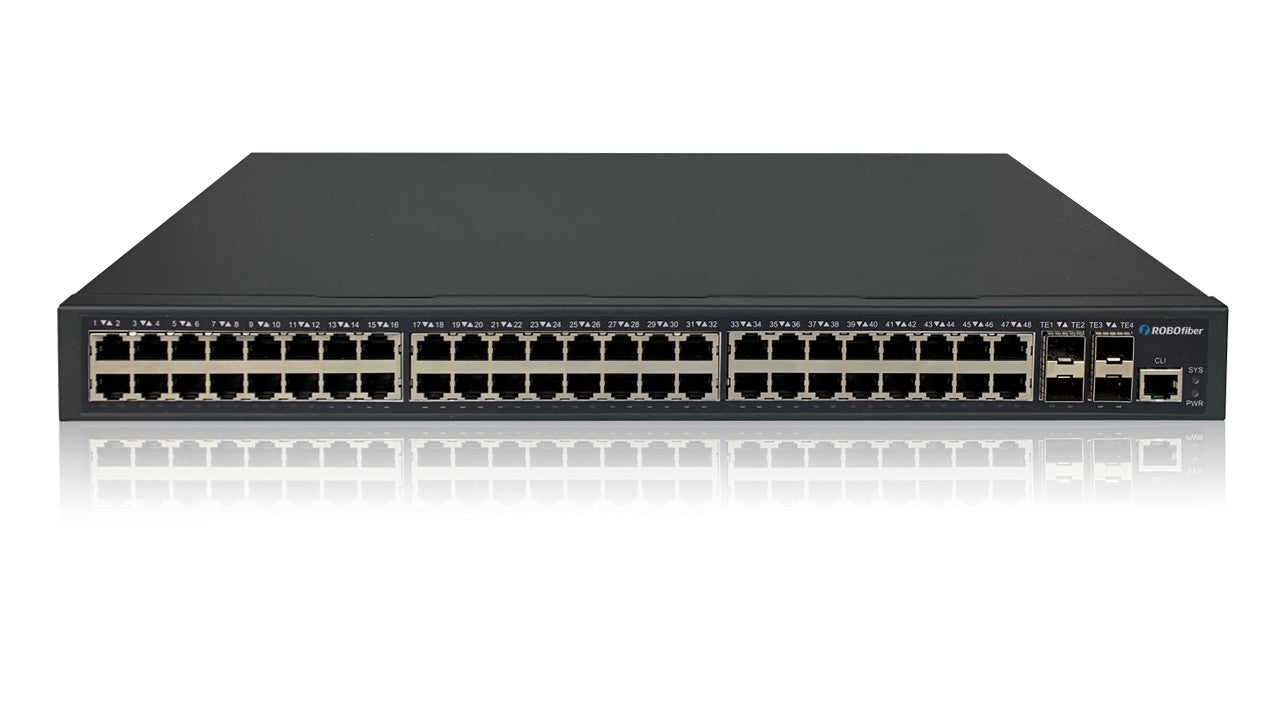

RBG-T4804M3-AC Layer 3 switch design is 1RU/19” wide box with 48x 10/100/1000Base-Tx ports and 4x 10G/1G SFP+ ports, powered by a high-performance ASIC switch chip, supporting 32K MAC addresses and 32K routing items and offering redundant power input.

Supports Virtual Cluster Switching Technique: the logic control plane, service control plane and service data plane are separated and therefore device can support continuous Layer3 routing forwarding, avoiding service interruption as a result of a single point of failure.

Features:

VLAN: 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice VLAN
Spanning Tree: 802.1D (STP) 802.1W (RSTP) and 802.1S (MSTP) BPDU guard, root guard and loopback guard
Multicast: IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter
IP: Static route, IPv4/v6 dual stack
Accessories: Power cord, rackmount kits, console cable
QoS: CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority re- labeling, SP, WRR and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping
Security: Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky DHCP Snooping and option 82, DAI & IP source guard, PPPoE+, IEEE 802.1x, Radius and BDTacacs+ L2/L3/L4 ACL flow identification and
filtration, Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control MD5, SHA-256, RSA-1024, AES256, etc.
Reliability: Static/LACP link aggregation, Interface backup EAPS and ERPS , ISSU uninterrupted system upgrade
Management: Console, Telnet, SSH v1/2, HTTP, HTTPS SNMP v1/v2/v3, RMON TFTP, FTP, SFTP NTP ZTP(Zero Touch Provisioning), SPAN, RSPAN
Environment: Operating temperature/humidity: 0°C -50°C ,10%-90% non-condensing
Storage temperature/humidity: -20°C -70°C , 5%-95% non-condensing
Certification: CE, FCC, ROHS

Specifications

Additional information on RBG-T4804M3-AC switch: PDF Datasheet
