Description

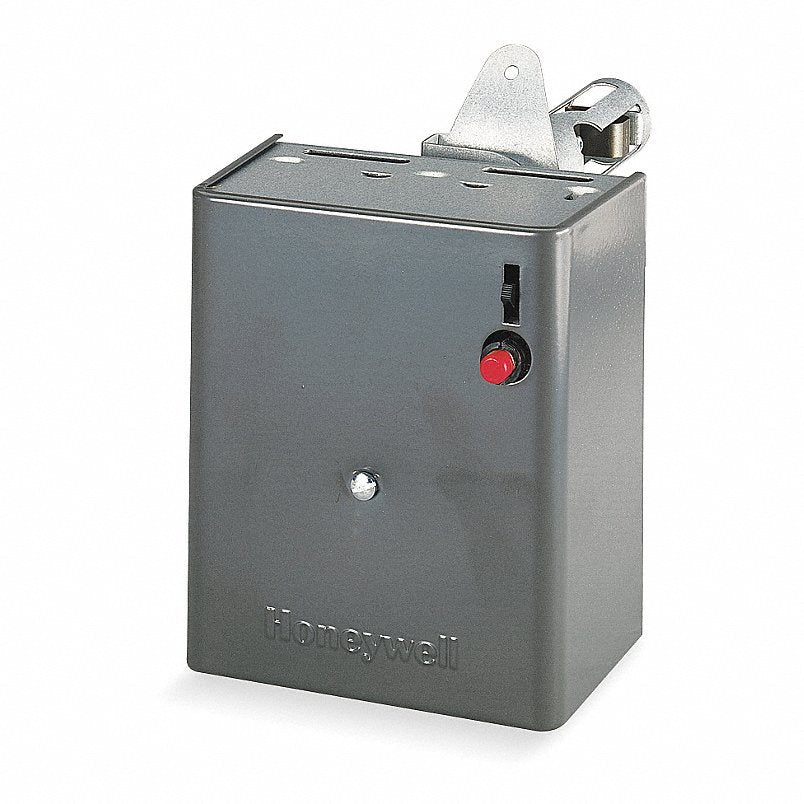

The Honeywell RA117A1047 is a robust oil burner primary control from the Protectorelay® series, combining ignition control with flame detection support for reliable heating system operation. It is designed to work with Pyrostat® temperature-based flame detectors and provides critical safety lockout functions with manual reset.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
RA117A1047
|
| Subcategory |
Oil Burner Protectorelay Controllers |
| Flame Detection |
Pyrostat® (thermal, flue gas temperature-based) |
| Safety Lockout Timing |
75 seconds (manual reset required) |
Number of Zones
|
1 |
| Voltage |
120 VAC
|
| Amperage |
10.2 A |
| Relay Type |
SPST Line Voltage |
| Power Compatibility |
120V line voltage or 24 VAC control circuits |
| Mounting Type |
Flange mount (flat or curved surfaces) |
| Dimensions (in.) |
6 H × 5-3/16 W × 3-3/16 D |
| Ambient Operating Temp. |
Max 105–115°F |
| Weight |
3.30 lbs
|
Information About RA117A1047
The RA117A1047 is an oil burner safety control module designed to cycle the burner and monitor ignition through the use of a Pyrostat® flame detector. This detector responds to temperature changes in flue gases up to 1000°F (556°C), making it suitable for oil-fired heating systems where temperature-based flame verification is required. The unit includes a safety switch with a nominal 75-second lockout time, which must be manually reset after ignition failure, ensuring safe burner shutdown and preventing unsafe restarts.
Key Features:
- Temperature-Based Flame Detection: Works with Pyrostat® detectors that monitor flue gas temperatures up to 1000°F (556°C).
- Manual Reset Safety Lockout: 75-second safety switch lockout requires manual reset after ignition failure for enhanced safety.
- Integrated Trip Switch: Manual trip function enables secure burner shutdown during servicing or inspection.
- Flange Mount Design: Easily installs on curved or flat surfaces with standard flange mounting.
- Flexible Power Compatibility: Operates with either 120V line voltage or 24 VAC control circuits.
- Single-Zone Control: Designed to manage one heating zone per unit.
- SPST Relay Switching: Rated for 10.2 amps at 120V to control burner operation reliably.
- Certified Safety: UL Listed and CSA Certified for safe operation in oil-fired heating systems.
The RA117A1047 delivers dependable oil burner cycling, lockout protection, and thermal flame supervision in a compact, service-friendly design.
