Description

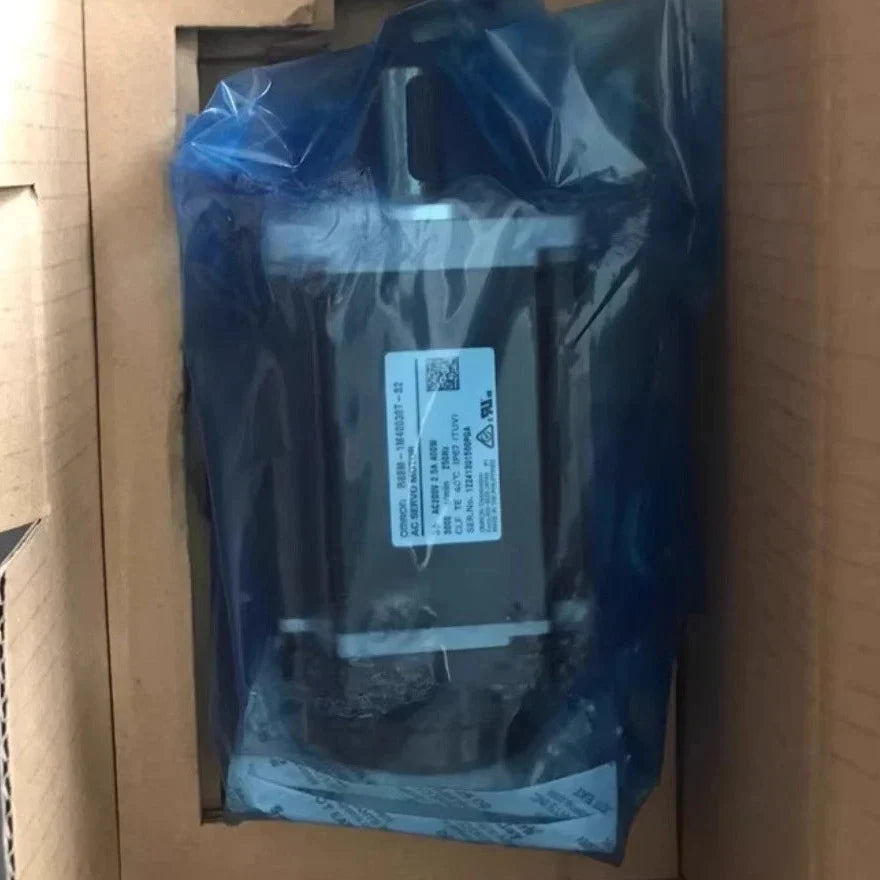

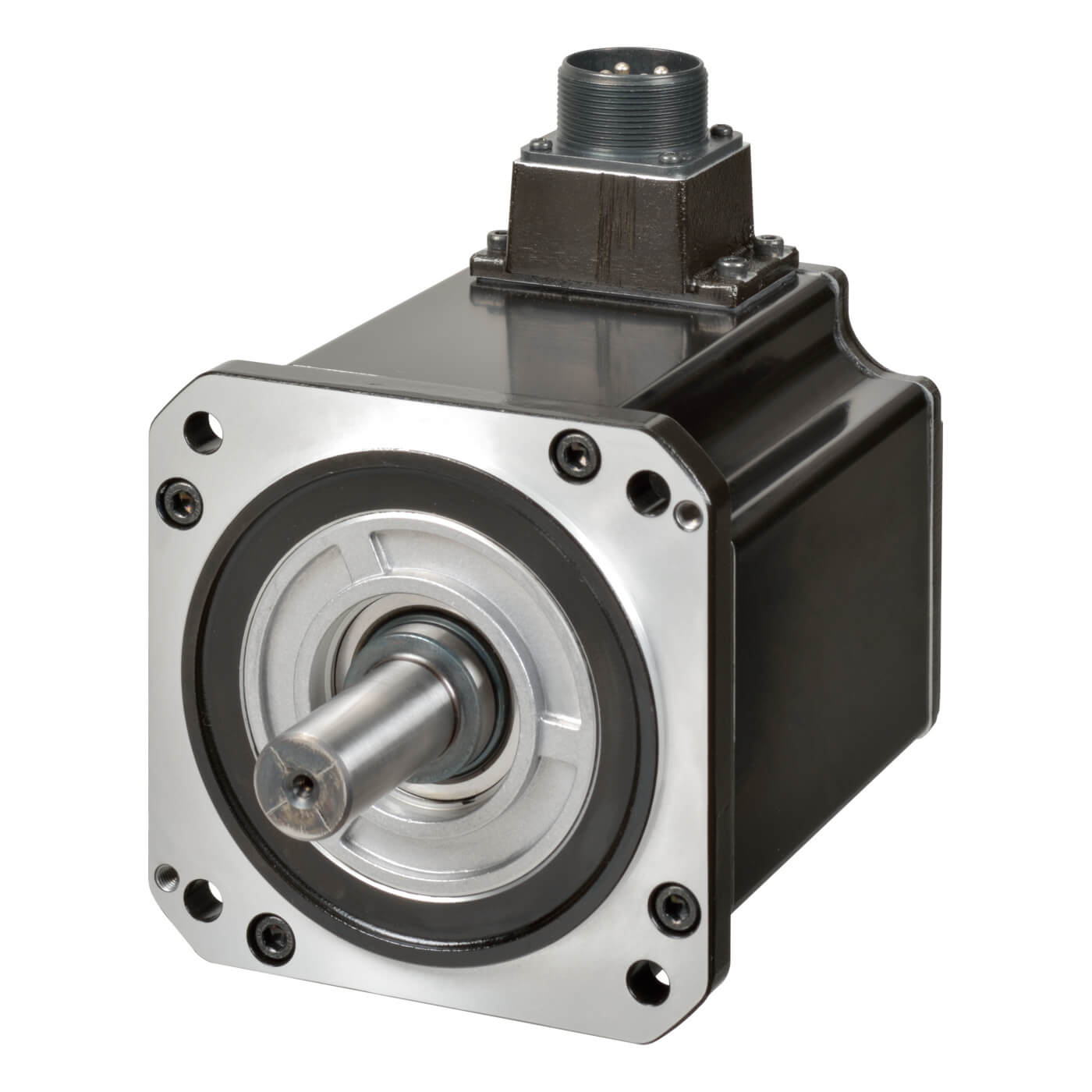

The Omron R88M-1M3K020C-BS2 is a high-performance AC servo motor designed for precise motion control in industrial automation systems. It delivers 3 kW output power with a rated speed of 2000 RPM and integrated holding brake for secure positioning. This servo motor is commonly used in high-precision machinery, robotics, and motion control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Servo Products |
| Part Number |
R88M-1M3K020C-BS2 |
| Subcategory |
Servo Motor |
| Motor Type |
AC Servo Motor |
| Series |
Omron 1S |
| Rated Output Power |
3 kW |
| Rated Speed |
2000 RPM |
| Rated Torque |
14.3 Nm |
| Peak Torque |
43 Nm |
| Supply Voltage |
400 VAC |
| Rated Current |
8.6 A |
| Encoder Type |
Absolute encoder |
| Encoder Resolution |
23-bit |
| Brake |
Integrated 24 VDC holding brake |
| Protection Rating |
IP67 |
| Flange Size |
130 mm |
| Shaft Type |
Straight shaft with key and tap |
| Operating Temperature |
0°C to 40°C |
| Cooling Method |
Air cooled |
| Weight |
12.00 lbs |
Information About R88M-1M3K020C-BS2
The R88M-1M3K020C-BS2 belongs to the Omron 1S-series servo motor family engineered for advanced motion control systems. It features a high-efficiency design with a 23-bit absolute encoder that provides precise position feedback for accurate motion control. The motor includes a straight shaft with key and tap for secure mechanical coupling and a built-in 24 VDC brake for holding position during power loss or system stops. With IP67 protection and a robust construction, it is designed to operate reliably in demanding industrial environments.
Key Features:
-
3 kW Servo Motor Output: Provides high power for demanding motion control applications.
-
Absolute Encoder Feedback: 23-bit encoder ensures precise position and speed control.
-
Integrated Holding Brake: Built-in 24 VDC brake maintains shaft position when power is removed.
-
2000 RPM Rated Speed: Suitable for controlled motion in automation and machine systems.
-
High Torque Capability: Rated torque of 14.3 Nm with peak torque up to 43 Nm.
-
Industrial Protection Rating: IP67 protection allows operation in harsh environments.
-
Keyed Shaft with Tap: Ensures secure coupling with mechanical drive components.
-
1S Series Compatibility: Designed for use with Omron 1S-series servo drives and motion systems.
The R88M-1M3K020C-BS2 delivers the reliability and precision required for high-performance motion control in industrial automation systems.
