Description

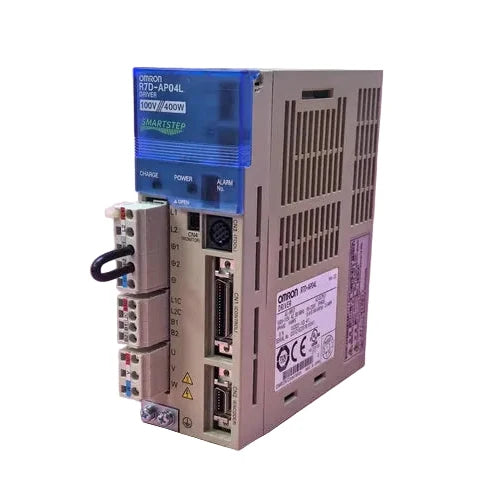

The Omron R7D-AP04L is a SmartStep series AC servo drive designed to control a single 400 W servo motor using a 100–115 VAC single-phase power supply. It delivers stable motion control performance with compact construction for industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Motion Control |
| Part Number |
R7D-AP04L |
| Subcategory |
Servo Drives |
| Series |
SmartStep |
| Drive Type |
AC Servo Drive |
| Motor Type |
Servo Motor |
| Number of Motors Supported |
1 |
| Rated Motor Power |
400 W |
| Supply Voltage |
100–115 VAC |
| Supply Phase |
Single Phase |
| Supply Frequency |
50/60 Hz |
| Input Current |
11 A |
| Output Voltage |
0–240 VAC |
| Output Current |
2.6 A |
| Load Voltage |
100 V |
| Control Interface |
Serial |
| Mounting Type |
Chassis Mount |
| Operating Temperature Range |
0 °C to 55 °C |
| Weight |
2.2 lbs |
Information About R7D-AP04L
The R7D-AP04L is part of Omron’s SmartStep servo drive family, developed to provide reliable and compact motion control for light to medium-duty automation tasks. This drive is designed to operate with a single 400 W AC servo motor and uses a 100–115 VAC single-phase input, making it suitable for installations with limited power availability. It delivers controlled AC output up to 240 VAC with precise current regulation for smooth motor performance. The chassis-mount design and serial communication interface allow straightforward integration into machine control panels and motion systems.
Key Features
- SmartStep Servo Drive Architecture: Engineered to provide stable and responsive control of AC servo motors in compact automation systems.
- 400 W Motor Support: Rated to drive a single servo motor up to 400 watts, supporting precise speed and position control.
- Single-Phase 100 VAC Input: Operates from standard 100–115 VAC single-phase power, simplifying electrical installation requirements.
- High-Resolution Output Control: Delivers up to 240 VAC output with 2.6 A current capacity for smooth and controlled motor operation.
- Serial Communication Interface: Enables configuration, monitoring, and integration with Omron motion controllers and control systems.
- Compact Chassis-Mount Design: Supports space-efficient installation in control cabinets and machine enclosures.
- Industrial Operating Range: Designed for reliable operation in environments from 0 °C to 55 °C.
The R7D-AP04L delivers the reliability and precision required for compact servo-driven motion control applications.
