Description

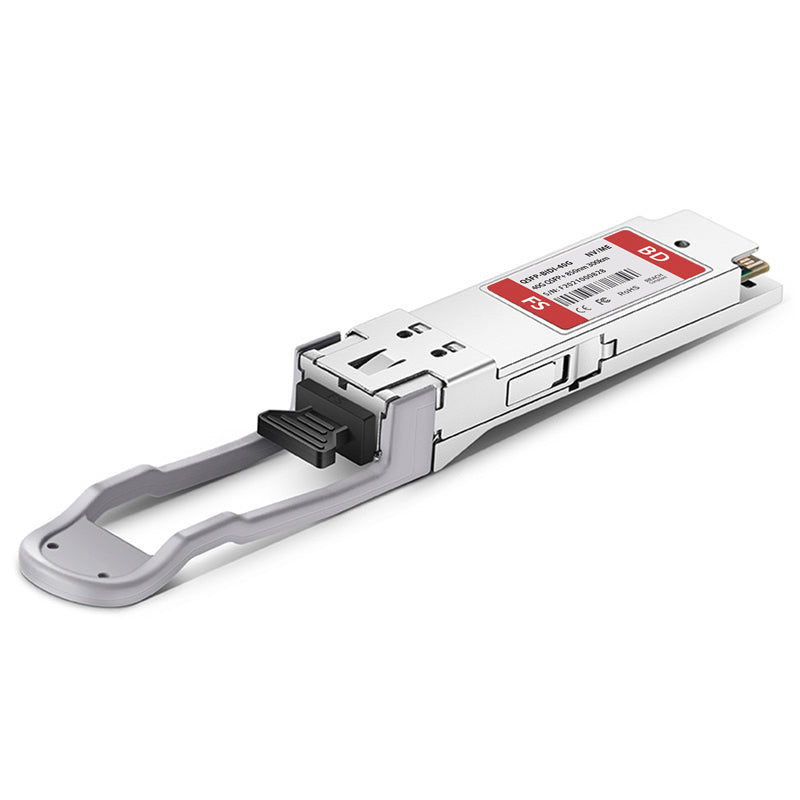

The Cisco QSFP-40G-SR-BD is a bidirectional 40G transceiver module designed for short-reach data center connections over duplex multimode fiber (MMF).
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
QSFP-40G-SR-BD |
| Subcategory |
Optical Transceivers / 40G QSFP Modules
|
| Product Type |
QSFP+ |
| Interfaces/Ports Details |
1 x LC Duplex 40GBase-X Network |
| Media Type Supported |
Optical Fiber
|
| Fiber Optic Cable Standard |
50 µm
|
| Fiber Mode Supported |
Multi-mode
|
| Ethernet Technology |
40 Gigabit Ethernet
|
| Network Technology |
40GBase-X |
| Form Factor |
Hot-swappable |
| Height |
0.5" |
| Width |
0.7" |
| Depth |
2.9" |
| Speed |
40 Gbps |
| Wavelength |
850 nm |
| Cable Distance |
490 ft |
| Weight |
0.165 lbs |
Information About QSFP-40G-SR-BD
The Cisco QSFP-40G-SR-BD is a bidirectional 40G transceiver module designed for short-reach data center and enterprise applications. It enables 40G Ethernet over existing duplex multimode fiber using two wavelengths on a single fiber pair, simplifying migration from 10G to 40G without requiring new cabling infrastructure.
Key Features:
- Form Factor: QSFP+
- Connector Type: Duplex LC
- Wavelengths: 832–918 nm (bidirectional operation)
- Fiber Type: Multimode Fiber (MMF)
- Maximum Data Rate: 40 Gbps
- Transmission Distance: Up to 100 m (OM3), 150 m (OM4/OM5)
- Power Consumption: Approximately 3.5W
- Operating Temperature: 0°C to 70°C
- Compliance: IEEE 802.3ba, QSFP+ MSA (SFF-8436), RoHS
- Weight: Approximately 75 grams (0.165 lbs)
- Digital Diagnostics Monitoring (DDM): Supported for real-time parameter monitoring
The QSFP-40G-SR-BD is ideal for data center interconnects and enterprise backbone upgrades, offering a cost-effective and efficient 40G Ethernet solution. Its ability to reuse existing 10G MMF cabling makes it perfect for high-speed deployments with minimal infrastructure changes.
