Description

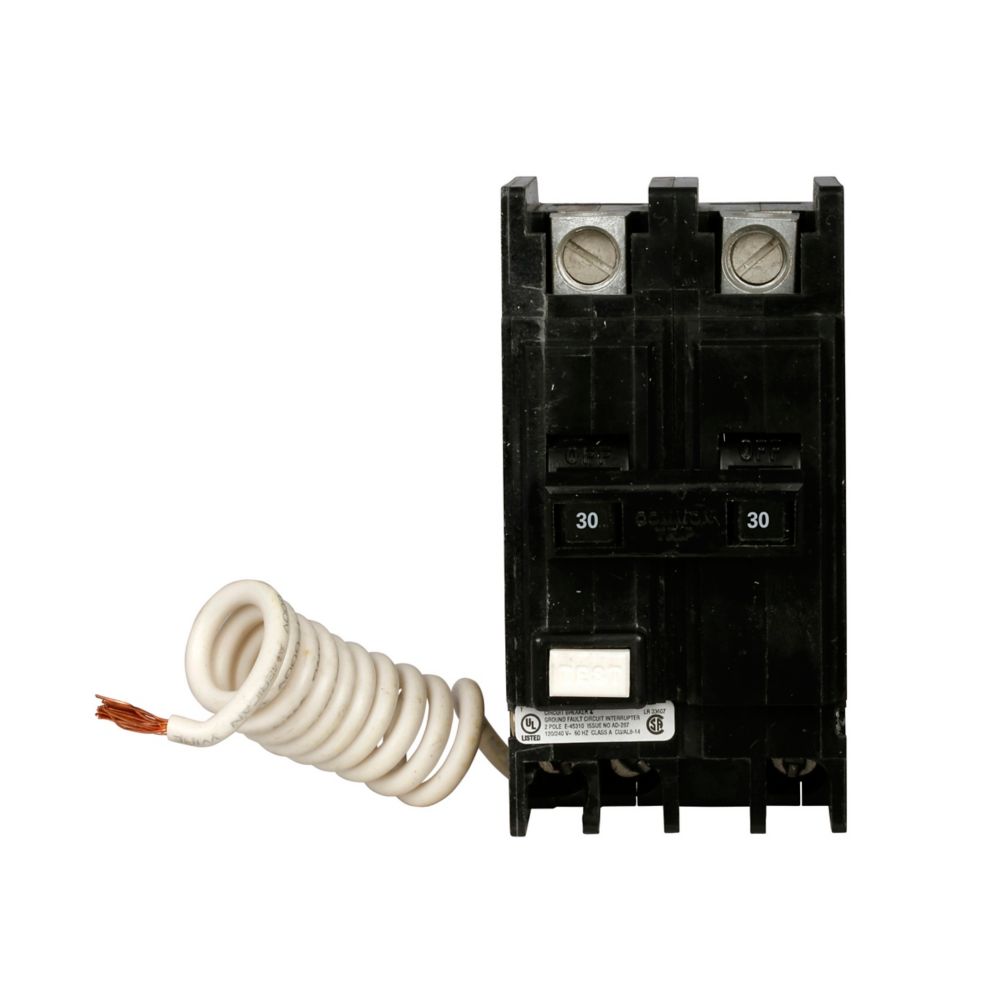

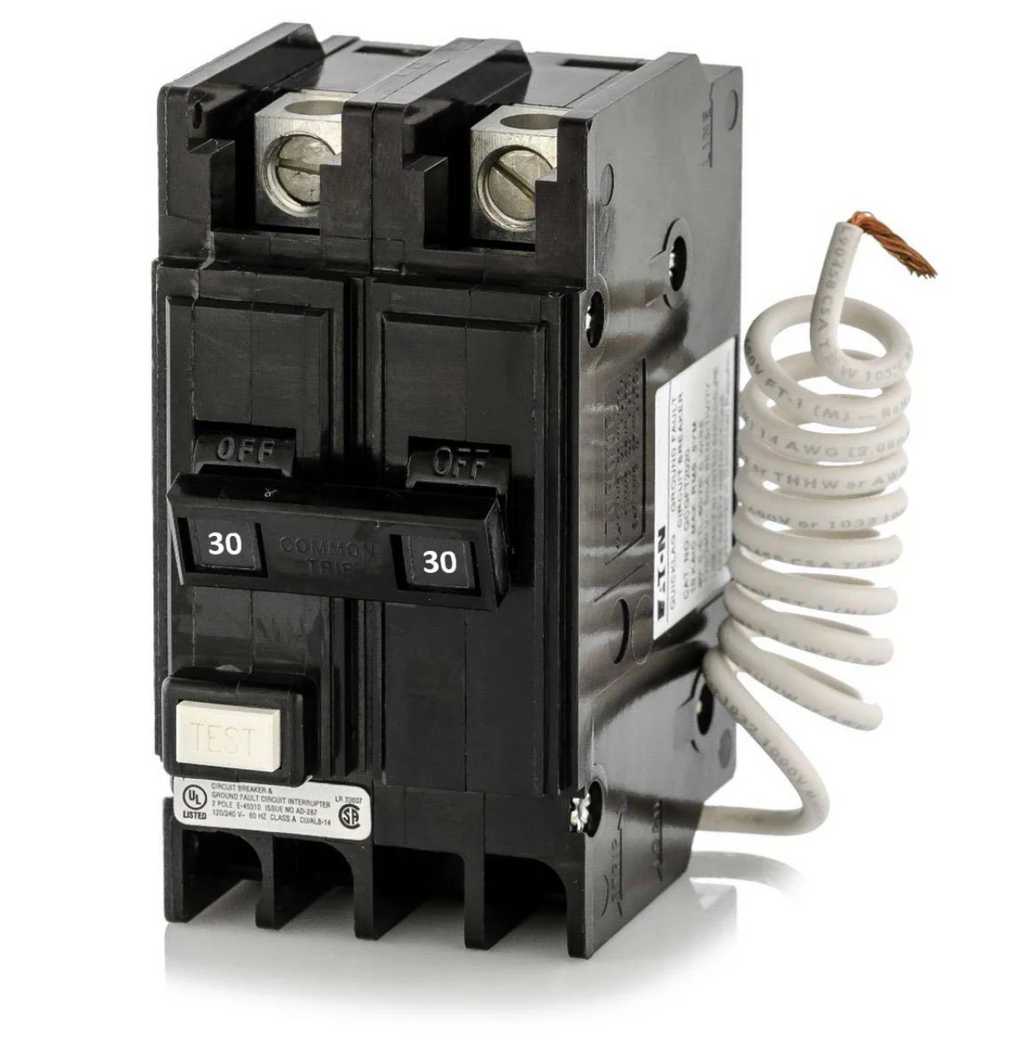

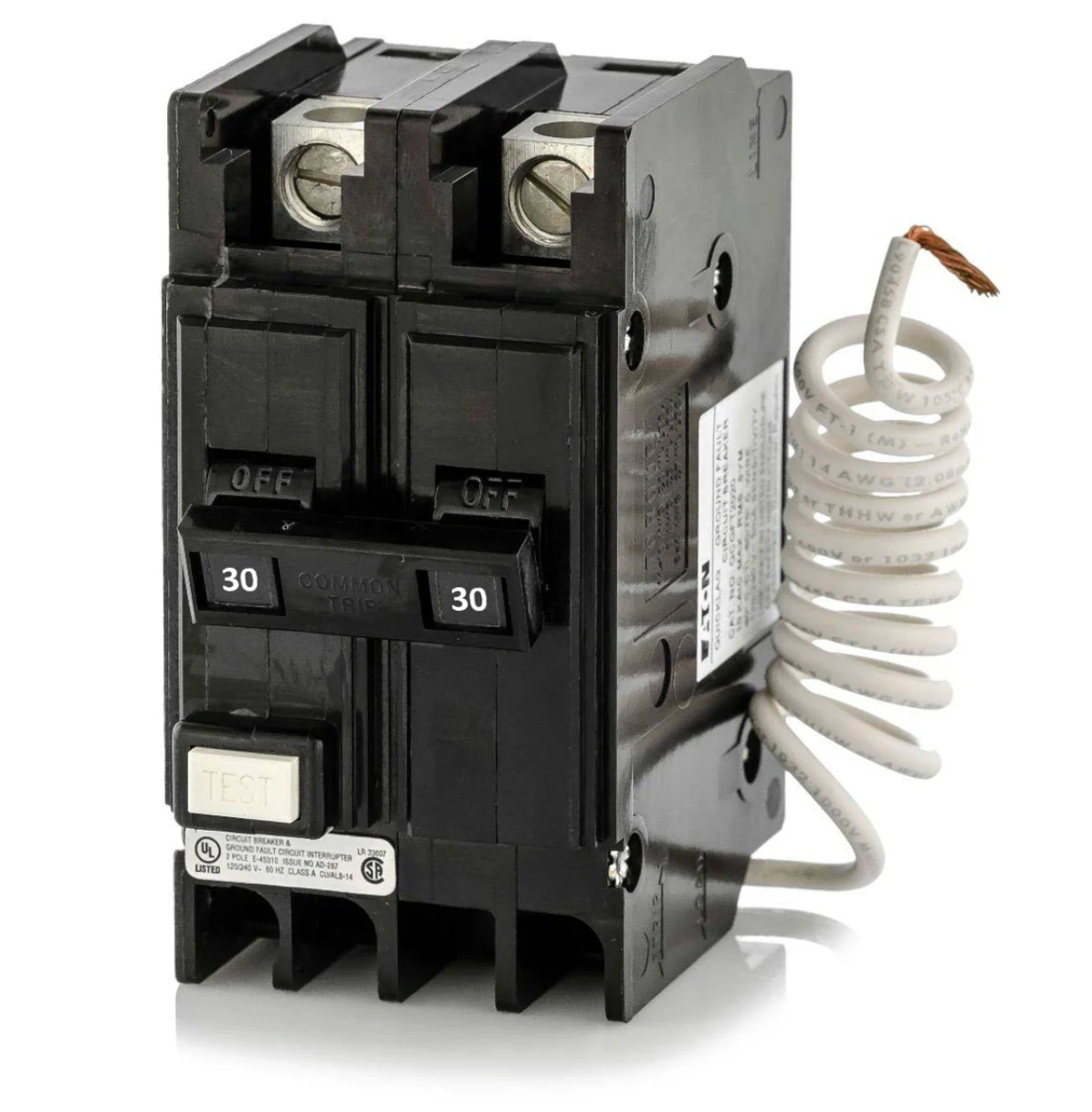

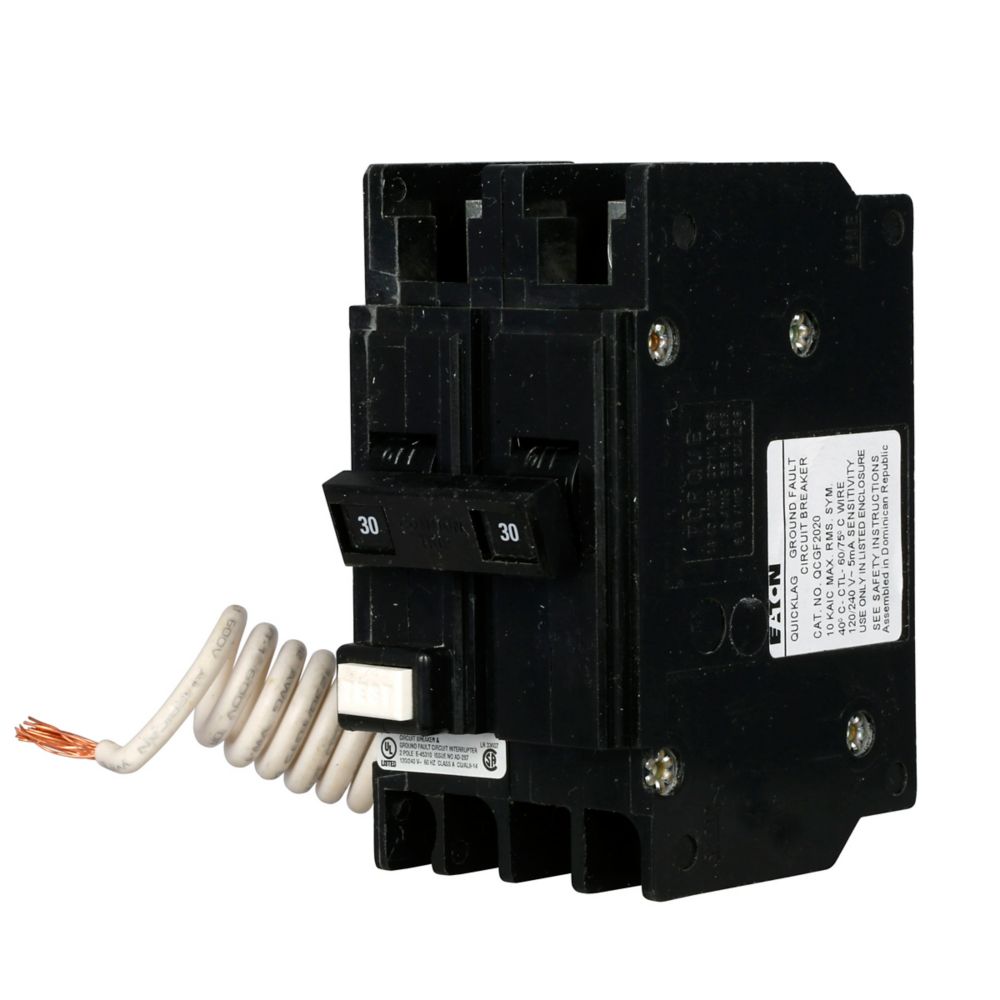

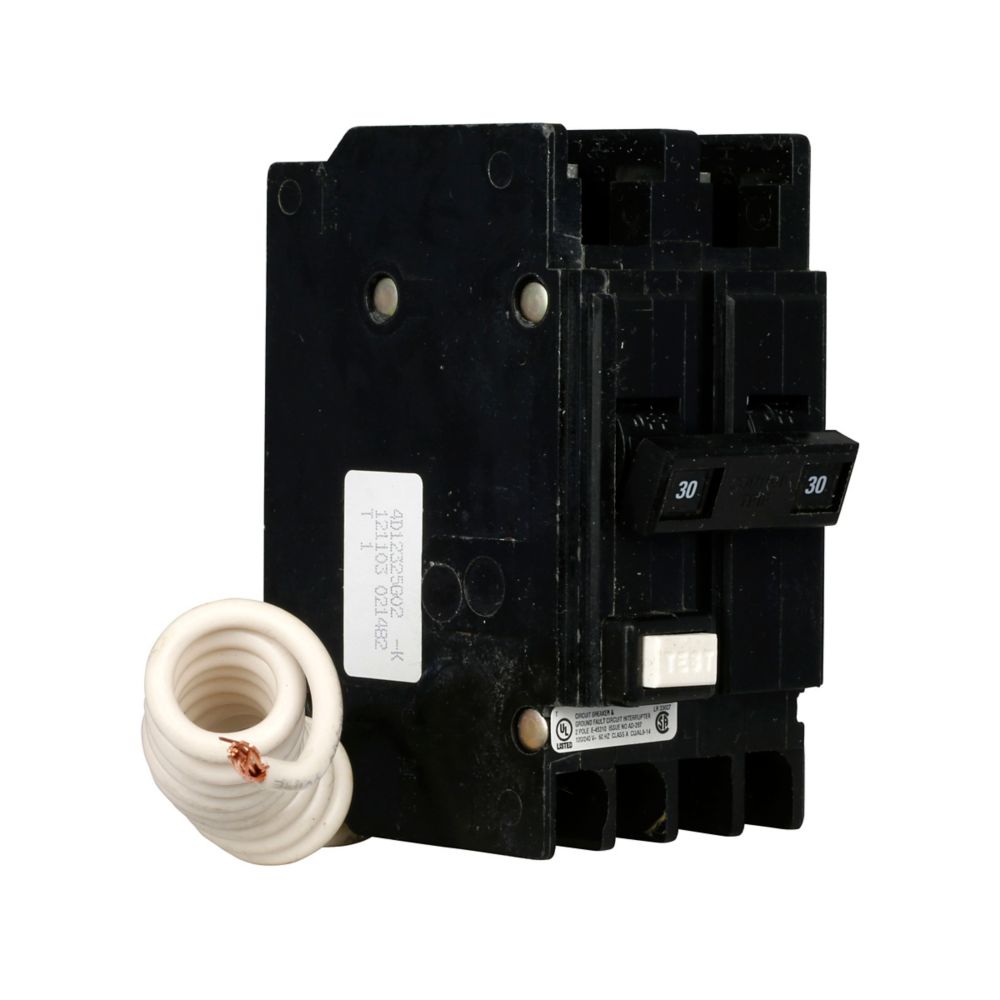

The Eaton QCGF2030 is a two-pole ground fault circuit breaker designed to provide personnel protection and overcurrent protection in 120/240V electrical systems. Featuring 5 mA ground fault sensitivity and a 30A current rating, the Eaton QCGF2030 is intended for residential and commercial applications requiring reliable GFCI protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breaker |
| Part Number |
QCGF2030 |
| Subcategory |
Molded Case |
| Series |
Quicklag QC |
| Breaker Type |
Ground Fault Circuit Breaker (GFCI) |
| Current Rating |
30 Amps |
| Voltage Rating |
120/240 VAC |
| Poles |
2 |
| Phase |
Single Phase |
| Interrupting Rating |
10 kAIC |
| Trip Functions |
LI – Long-Time and Instantaneous |
| Ground Fault Sensitivity |
5 mA |
| Connection Type |
Feed-Thru (Cable-In/Cable-Out) |
| Certifications |
UL Listed, CSA Certified |
| HACR Rating |
Yes |
| Dimensions (HxWxD) |
3 x 4.4 x 5.8 in |
| Weight |
0.85 lb |
Information About QCGF2030
The QCGF2030 is part of Eaton’s Quicklag QC series, built as a molded case ground fault circuit breaker with a non-interchangeable trip design. It uses thermal magnetic technology with LI (long-time and instantaneous) trip functions to respond accurately to overloads, short circuits, and ground faults. The breaker supports single-phase, two-pole configurations and utilizes feed-thru (cable-in/cable-out) connections for straightforward wiring. UL and CSA certifications ensure compatibility with code-compliant electrical installations requiring HACR-rated protection.
Key Features:
- Ground Fault Protection: Provides 5 mA trip sensitivity to protect against hazardous ground fault conditions.
- Quicklag Series Design: Combines thermal magnetic overcurrent protection with ground fault detection.
- 30 Amp Rating: Supports moderate-load branch and feeder circuits.
- Two-Pole Configuration: Designed for 120/240V single-phase electrical systems.
- 10 kA Interrupting Rating: Safely interrupts fault currents up to 10,000 amps.
- Feed-Thru Connections: Allows cable-in/cable-out wiring for flexible installation.
- Non-Interchangeable Trip Unit: Ensures fixed, factory-calibrated protection settings.
The QCGF2030 delivers the reliability and precision required for ground fault and overcurrent protection in residential and light commercial electrical systems.
