Description

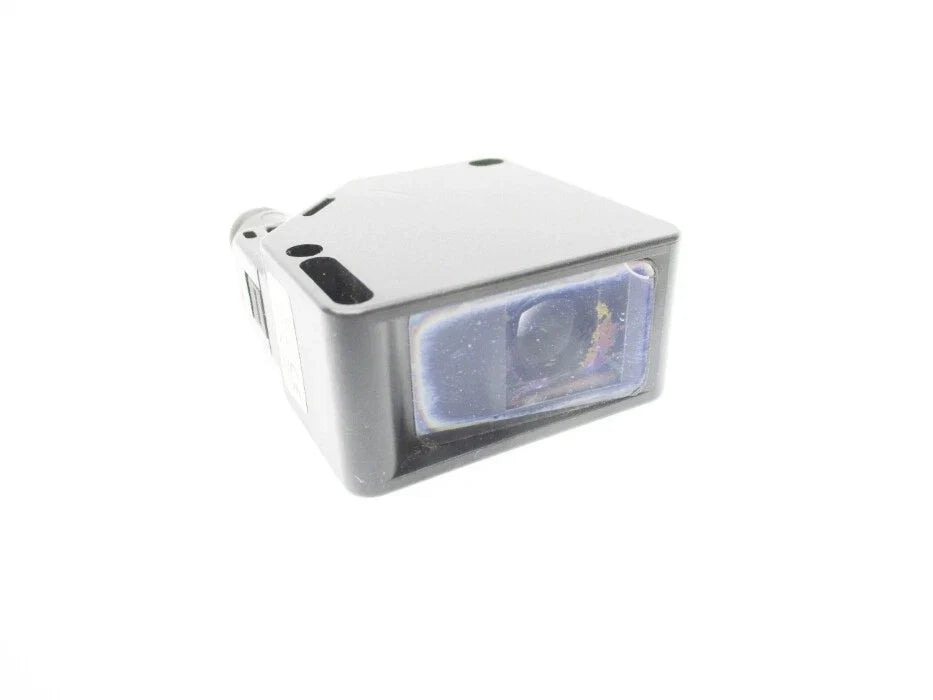

The Banner Engineering QC50A3P6XDWQ is a QC50 Series true color photoelectric sensor designed for precise color detection at short sensing distances. It uses a visible white LED to reliably distinguish up to three stored colors within a 20 mm range. This sensor is intended for industrial automation applications requiring accurate color verification and fast response times.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Industrial Sensors |
| Part Number |
QC50A3P6XDWQ |
| Subcategory |
Color Sensors |
| Series |
QC50 Series |
| Sensor Type |
True Color Photoelectric Sensor |
| Sensing Mode |
Color (x3) |
| Sensing Range |
20 mm |
| Light Source |
Visible White LED (400–700 nm) |
| Beam Spot Size |
4 mm |
| Response Time |
0.335 ms |
| Supply Voltage |
10–30 VDC |
| Output Type |
PNP |
| Number of Outputs |
3 |
| Housing Material |
Thermoplastic |
| Lens Material |
Glass |
| Connection Type |
Integral Quick-Disconnect |
| Quick Disconnect Size |
M12 |
| Number of Pins |
8 |
| IP Rating |
IP67 |
| NEMA Rating |
4X |
| Operating Temperature Range |
−10 to 55 °C |
| Indicators |
Digital Display |
| Adjustable Functions |
Teach Button, Timing (Hold/Delay) |
| Power-Up Delay |
500 ms |
| Weight |
0.35 lb |
Information About QC50A3P6XDWQ

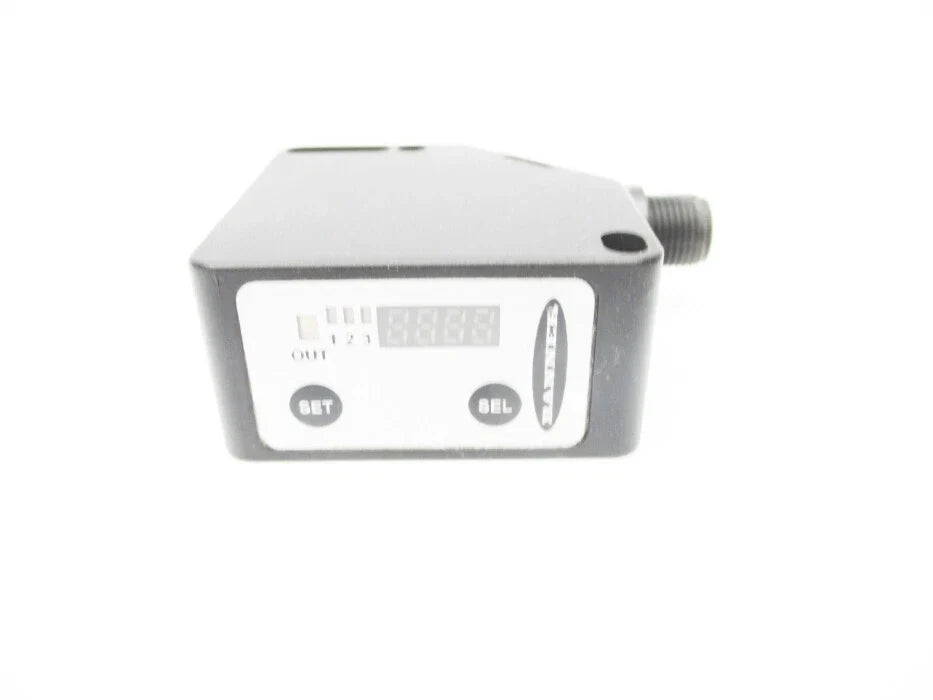

The QC50A3P6XDWQ is part of Banner Engineering’s QC50 Series, which is engineered for high-accuracy color sensing in industrial environments. It features a compact thermoplastic housing with a glass lens and an integrated digital display for setup and status indication. The sensor supports PNP discrete outputs and is configured using a teach button for straightforward installation. It is commonly used in packaging, assembly, and inspection systems where color differentiation is critical to process control.
Key Features:
- True Color Sensing: Detects and distinguishes up to three stored colors with high accuracy.
- Short-Range Detection: Operates within a 20 mm sensing distance for precise color verification.
- Visible White LED Source: Provides consistent illumination across the full visible spectrum.
- Fast Response Time: Delivers a 0.335 ms output response to support high-speed automation.
- Digital Display Interface: Displays status and configuration information directly on the sensor.
- PNP Output Configuration: Includes three PNP discrete outputs for flexible control integration.
- Rugged Environmental Protection: Rated IP67 and NEMA 4X for industrial operating conditions.
The QC50A3P6XDWQ delivers the reliability and precision required for industrial color sensing and inspection applications.
