Description

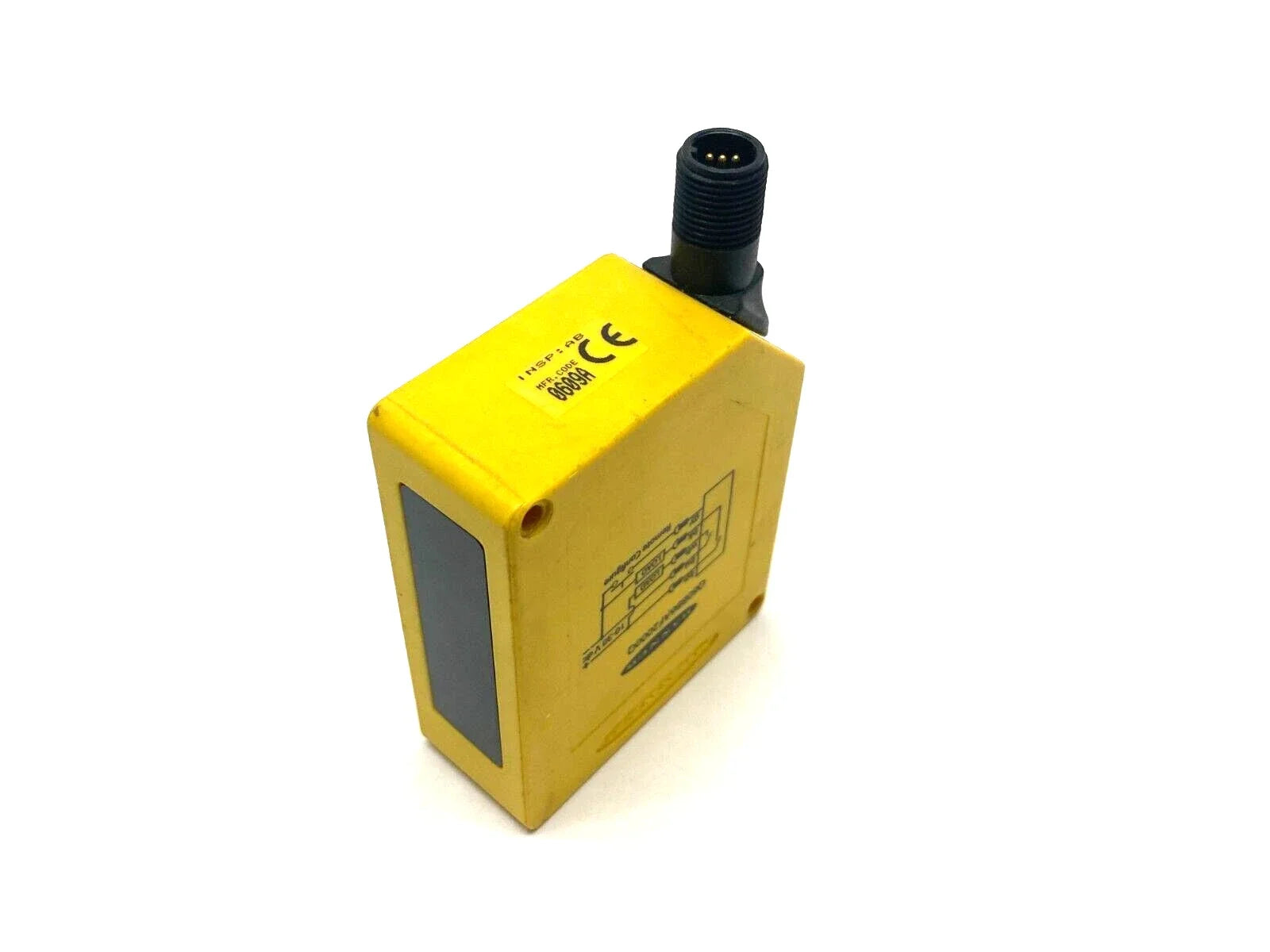

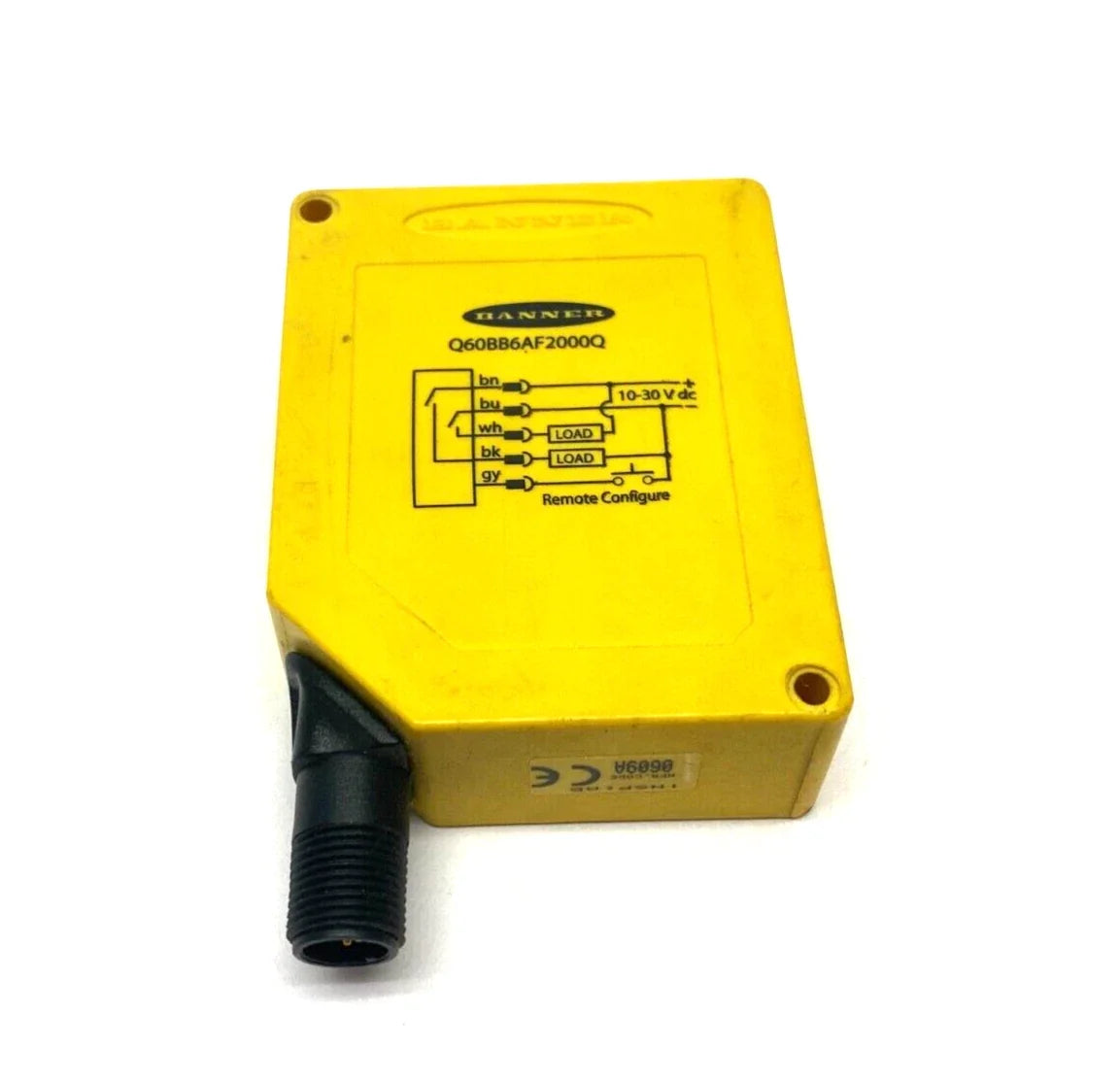

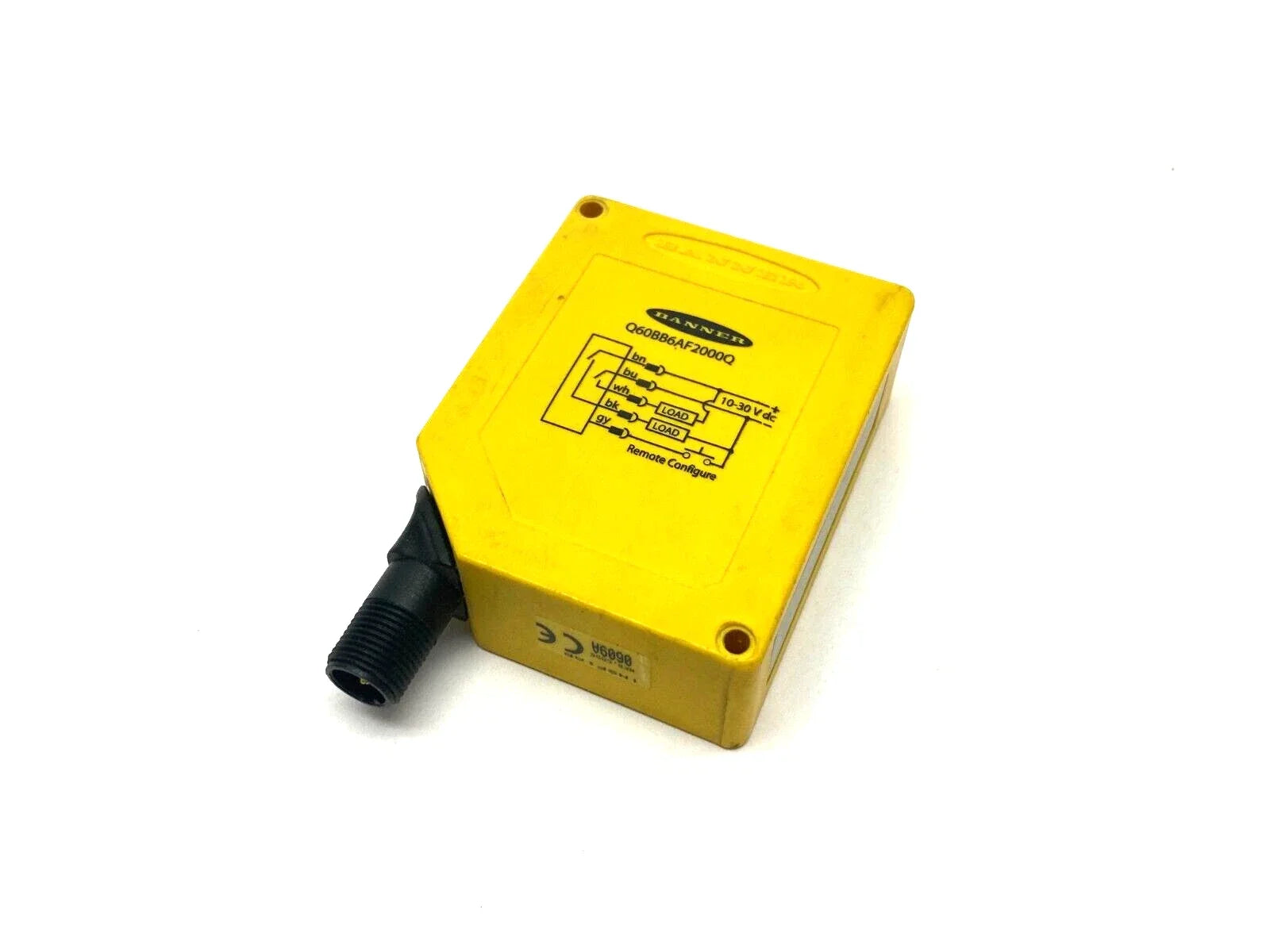

The Banner Engineering Q60BB6AF2000 is an adjustable-field infrared photoelectric sensor designed for accurate background suppression sensing up to 2 meters. It provides fast response, bipolar NPN/PNP output, and stable detection performance in industrial automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
Q60BB6AF2000 |
| Subcategory |
Photoelectric Sensors |
| Series |
Q60 Series |
| Sensor Type |
Reflective Photoelectric |
| Sensing Mode |
Background Suppression (Adjustable) |
| Light Source |
Infrared LED |
| Max Sensing Distance |
2000 mm |
| Supply Voltage |
10–30 VDC |
| Output Type |
Bipolar (NPN/PNP) |
| Output Response Time |
2 ms |
| Turn-On Delay |
150 ms |
| Connection Type |
Integral Cable |
| Cable Length |
2 m |
| Housing Style |
Rectangular |
| Housing Material |
Thermoplastic |
| Lens Material |
Acrylic |
| Mounting Type |
Panel Mount |
| IP Rating |
IP67 |
| NEMA Rating |
NEMA 4X |
| Operating Temperature Range |
-20 to 55 °C |
| Max Relative Humidity |
90% RH |
| Indicators |
LEDs |
| Weight |
1.5 lbs |
Information About Q60BB6AF2000
The Q60BB6AF2000 is part of the Banner Engineering Q60 Series, which is engineered for reliable photoelectric sensing in space-constrained and demanding industrial installations. The sensor features a rugged thermoplastic housing with IP67 and NEMA 4X protection, supporting consistent operation in dusty, humid, and washdown-prone environments. It operates on a 10–30 VDC supply and offers bipolar NPN/PNP discrete outputs, simplifying integration with multiple PLC and control system types. Adjustable-field background suppression technology allows precise distance setting, enabling accurate target detection while ignoring objects beyond the defined sensing range.
Key Features
- Adjustable-Field Background Suppression: Screw-adjustable sensing distance ensures precise detection while rejecting background objects beyond the setpoint.
- Infrared LED Sensing Beam: Provides stable and repeatable detection across various target colors and surface finishes.
- Bipolar NPN/PNP Output: Supports flexible electrical integration with a wide range of industrial controllers.
- Fast Switching Performance: 2 ms response time supports high-speed detection in automated processes.
- Rugged Industrial Housing: Thermoplastic rectangular enclosure with IP67 and NEMA 4X ratings ensures durability in harsh environments.
- Integrated LED Indicators: Visual status indicators assist with alignment, diagnostics, and operational monitoring.
- Integral 2 m Cable Connection: Fixed-length cable simplifies installation and provides reliable electrical connectivity.
The Q60BB6AF2000 delivers the reliability and precision required for accurate background suppression sensing in industrial automation systems.
