Description

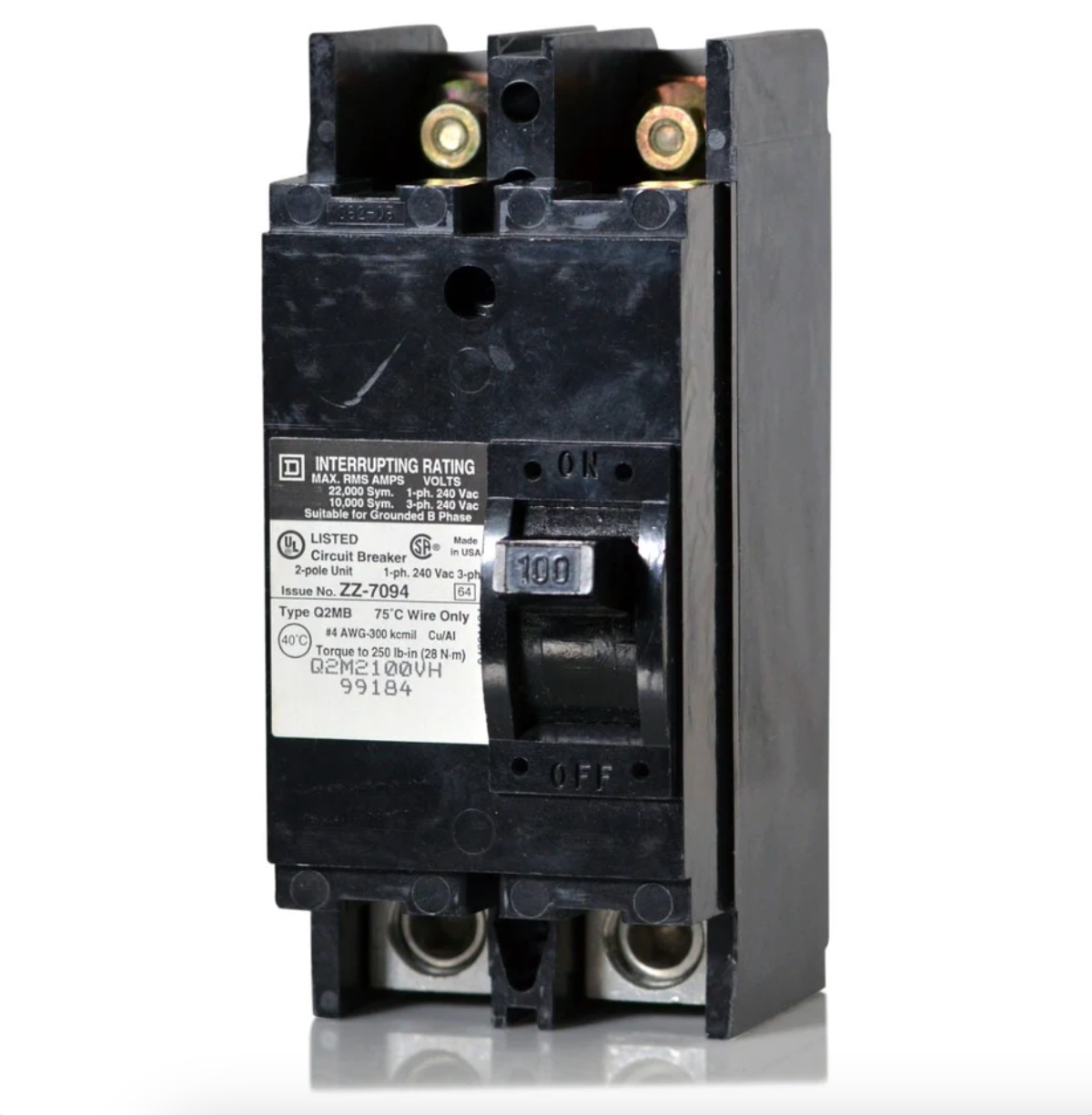

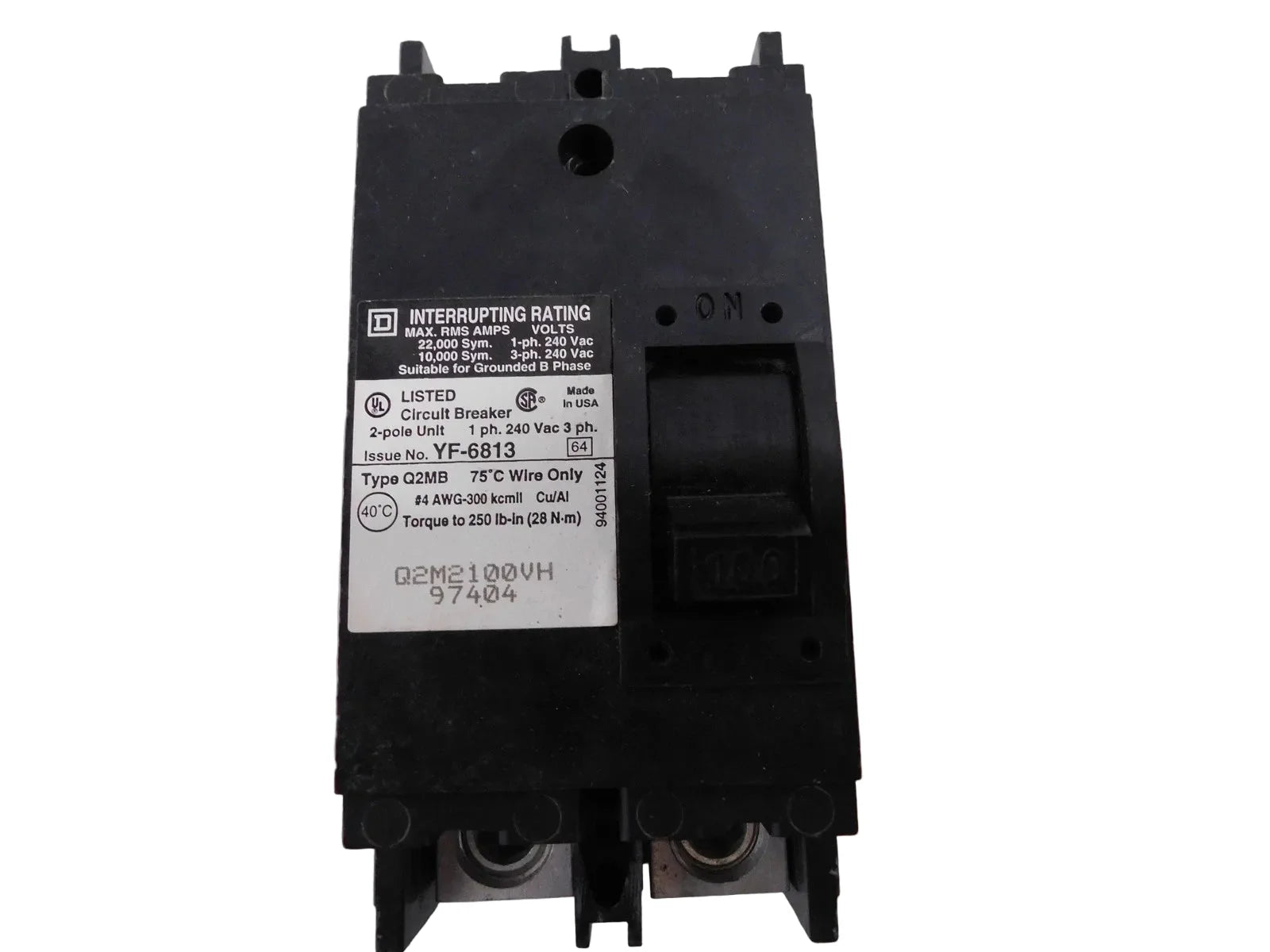

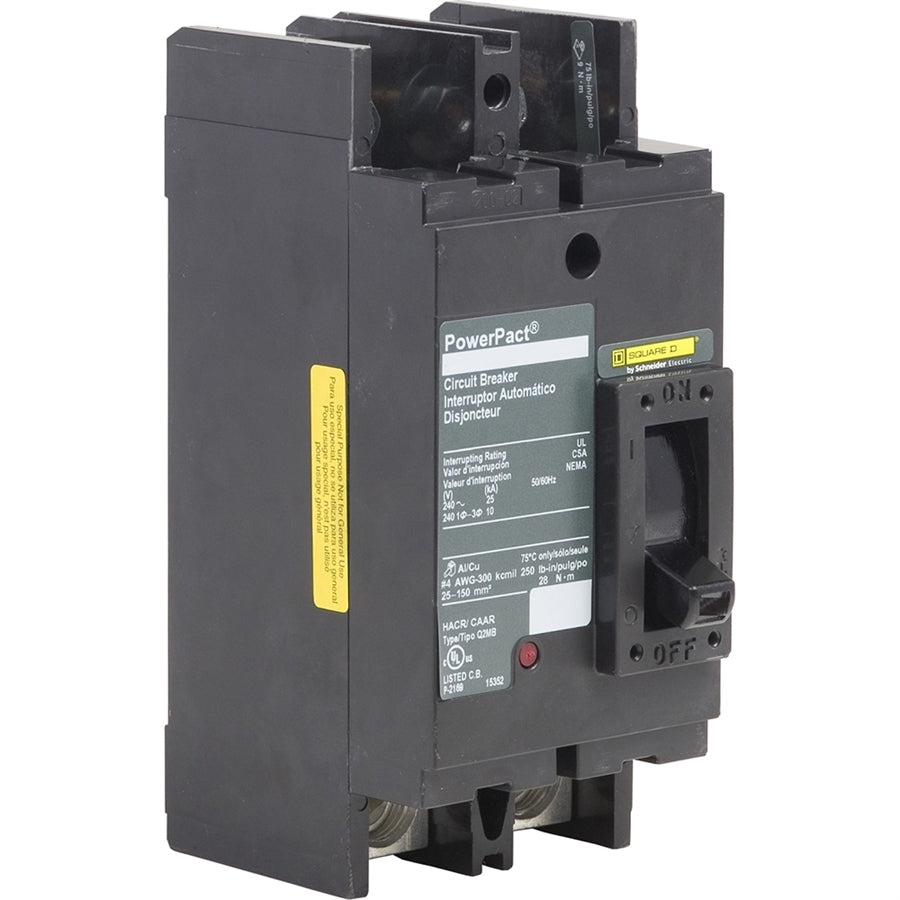

The Square D Q2M2100VH is a 2-pole molded case circuit breaker designed to provide dependable overcurrent protection in low-voltage electrical systems. With a 100A current rating and 240VAC operation, this Square D Q2M2100VH breaker is engineered for stable performance in residential and light commercial power distribution panels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Circuit Breaker |
| Part Number |
Q2M2100VH |
| Subcategory |
Molded Case |
| Series |
Q2 |
| Breaker Type |
Molded Case Circuit Breaker |
| Current Rating |
100 Amps |
| Voltage Rating |
240VAC |
| Poles |
2 |
| Phase |
Single Phase |
| Interrupting Rating |
22kAIC at 240V |
| Trip Unit |
Thermal Magnetic |
| Mounting Type |
Bolt-On |
| Terminal Connection |
Load Side Lug |
| Standards |
UL Listed |
| Weight |
2 lb |
Information About Q2M2100VH
The Q2M2100VH is a molded case circuit breaker from Square D’s Q2 series, built for compact panel installations requiring reliable branch circuit protection. It features a robust thermal magnetic trip unit that responds accurately to both overloads and short-circuit conditions. The breaker is compatible with 240VAC single-phase systems and utilizes a bolt-on mounting style to ensure secure electrical and mechanical connections. Designed to meet UL standards, it supports long-term operational stability in residential and commercial electrical environments.
Key Features:
- Two-Pole Configuration: Provides simultaneous protection and disconnection for dual conductors in single-phase circuits.
- 100 Amp Rating: Supports medium-load electrical circuits without compromising thermal stability.
- Thermal Magnetic Protection: Combines overload and short-circuit response for comprehensive circuit safety.
- High Interrupting Capacity: Rated at 22kAIC at 240V for effective fault current interruption.
- Bolt-On Mounting: Ensures secure installation and consistent electrical contact within panels.
- Long Time & Instantaneous Trip Functions: Delivers precise protection across varying fault conditions.
- UL Compliance: Manufactured to meet recognized electrical safety standards.
The Q2M2100VH delivers the reliability and precision required for dependable circuit protection in residential and light commercial electrical systems.
